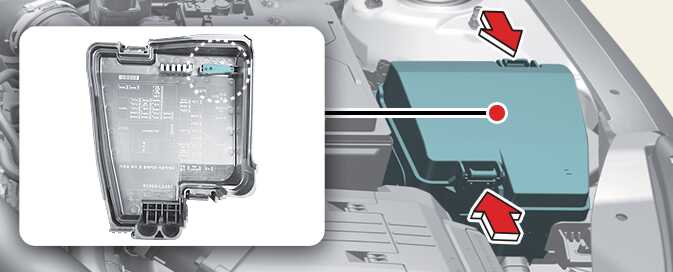

Engine compartment fuse panel
 ODL3074086N |

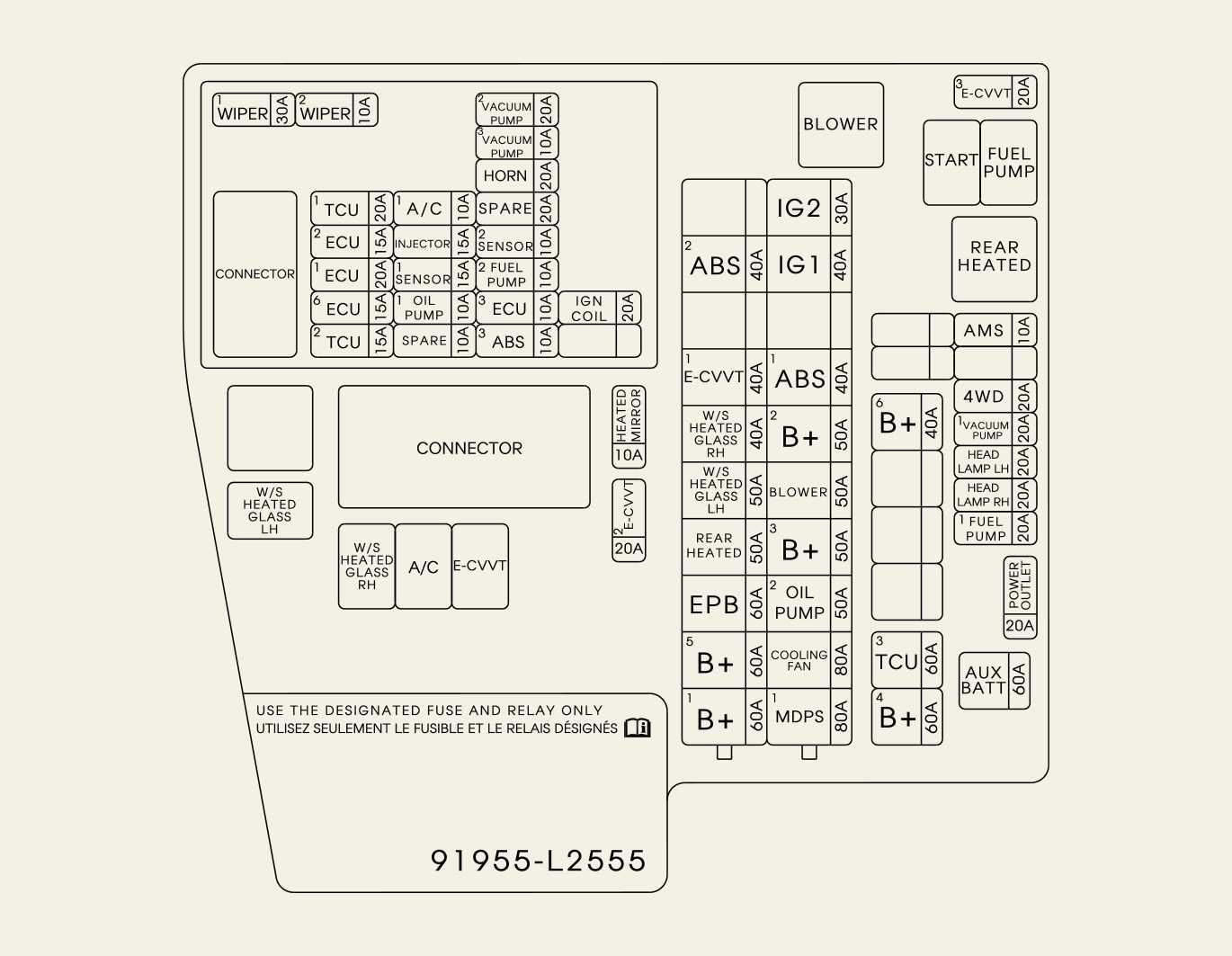

Refer to the following table for a description of the fuse.
|
Fuse Name |
Fuse rating |
Circuit Protected |
|---|---|---|
|
ABS2 |
40A |
ESP (Electronic Stability Program) Control Module |
|
E-CVVT1 |
40A |
E-CVVT Relay |
|
W/S HEATED GLASS RH |
40A |
W/S Heated Glass Right Handle side Relay |
|
W/S HEATED GLASS LH |
50A |
W/S Heated Glass Left Handle side Relay |
|
REAR HEATED |
50A |
Rear Defogger Relay |
|
EPB |
60A |
ESP (Electronic Stability Program) Control Module |
|
B+5 |
60A |
PCB BLOCK(MAIN Relay, Fuse - HORN, A/C1, ECU2, TCU1, WIPER1, WIPER2) |
|
IG2 |
30A |
Start Relay, PCB Block (IG2 Relay) |
|
IG1 |
40A |
PCB Block (ACC Relay, IG1 Relay) |
|
ABS1 |
40A |
ESP (Electronic Stability Program) Control Module |
|
B+2 |
50A |
PDC (IPS 2, IPS3, IPS5, IPS6, IPS7) |
|
BLOWER |
50A |
Blower Relay |
|
B+3 |
50A |
PDC (Fuse - AMP, AIR BAG2, SUNROOF1, SUNROOF2) |
|
B+1 |
60A |
ICU Junction Block (Fuse - MODULE1, CHILD LOCK, S/HEATER (RR), P/SEAT (PASS), SAFETY P/WINDOW (RH), P/SEAT (DRV), SAFETY P/WINDOW (LH)) |
|
OIL PUMP2 |
50A |
EOP (Electric Oil Pump) |
|
COOLING FAN |
80A |
Cooling Fan Motor |
|
MDPS1*1 |
80A |
Motor Driven Power Steering Unit |
|
B+6 |
40A |
PDC (IPS8, IPS9, IPS10, IPS11, IPS12) |
|
B+4 |
60A |
ICU Junction Block (Long Term Load Latch Relay, Fuse - S/HEATER (FRT), TRUNK, DOOR LOCK, MODULE3, BRAKE SWITCH, SUNROOF2, AIR BAG2, SUNROOF1) |
|
AUX BATT |
60A |
BATTEY ASSY-12V LITHIUM |
|
AMS |
10A |
Battery Sensor |
|
4WD |
20A |
4WD (4 Wheel Drive) ECU |
|
VACUUM PUMP1 |
20A |
Vacuum Relay |
|
HEAD LAMP LH |
20A |
HEAD LAMP LH |
|
HEAD LAMP RH |
20A |
HEAD LAMP RH |
|
FUEL PUMP1 |
20A |
Fuel Pump Relay |
|
POWER OUTLET |
20A |
PCB Block (Power Outlet Relay) |
|
E-CVVT3 |
20A |
ECM (Engine Control Module) |
|
HEATED MIRROR |
10A |
Driver/Passenger Power Outside Mirror |
|
E-CVVT2 |
20A |
ECM (Engine Control Module) |
|
WIPER1 |
30A |
Wiper Relay |
|
WIPER2 |
10A |
BDC |
|
TCU1 |
20A |
TCM (Transmission Control Module) |
|
TCU3 |
60A |
TCM (Transmission Control Module) |
|
ECU2 |
15A |
ECM (Engine Control Module) |
|
ECU1 |
20A |
ECM (Engine Control Module) |
|
ECU6 |
15A |
ECM (Engine Control Module) |
|
TCU2 |
15A |
TCM (Transmission Control Module) |
|
A/C1 |
10A |
A/C COMPRESSOR Relay |
|
INJECTOR |
15A |
INJECTOR |
|
SENSOR1 |
15A |
O2 SENSOR |
|
OIL PUMP1 |
10A |
EOP (Electric Oil Pump) |
|
VACUUM PUMP2 |
20A |
EVP (Electric Vacuum Pump) |
|
VACUUM PUMP3 |
10A |
ESP (Electronic Stability Program) Control Module |
|
HORN |
20A |
HORN |
|
SENSOR2 |
10A |
OCV (Oil Control Valve) |
|
FUEL PUMP2 |
10A |
Fuel Pump Relay |
|
ECU3 |
10A |
ECM (Engine Control Module) |
|
ABS3 |
10A |
ESP (Electronic Stability Program) Control Module |
|
IGN COIL |
20A |
Ignition Coil |
1: MDPS (Motor Driven Power Steering) is the same as EPS (Electric Power Steering).
|
Relay Name |
Type |
|---|---|
|
Blower Relay |
MINI |
|
Start Relay |
MICRO |
|
Fuel Pump Relay |
MICRO |
|
Rear Heated Relay |
MINI |
|
W/S Heated Glass Left Handle side Relay |
MICRO |
|
W/S Heated Glass Right Handle side Relay |
MICRO |
|
E-CVVT Relay |
MICRO |
|
Air Conditioner Relay |
MICRO |
