Engine compartment

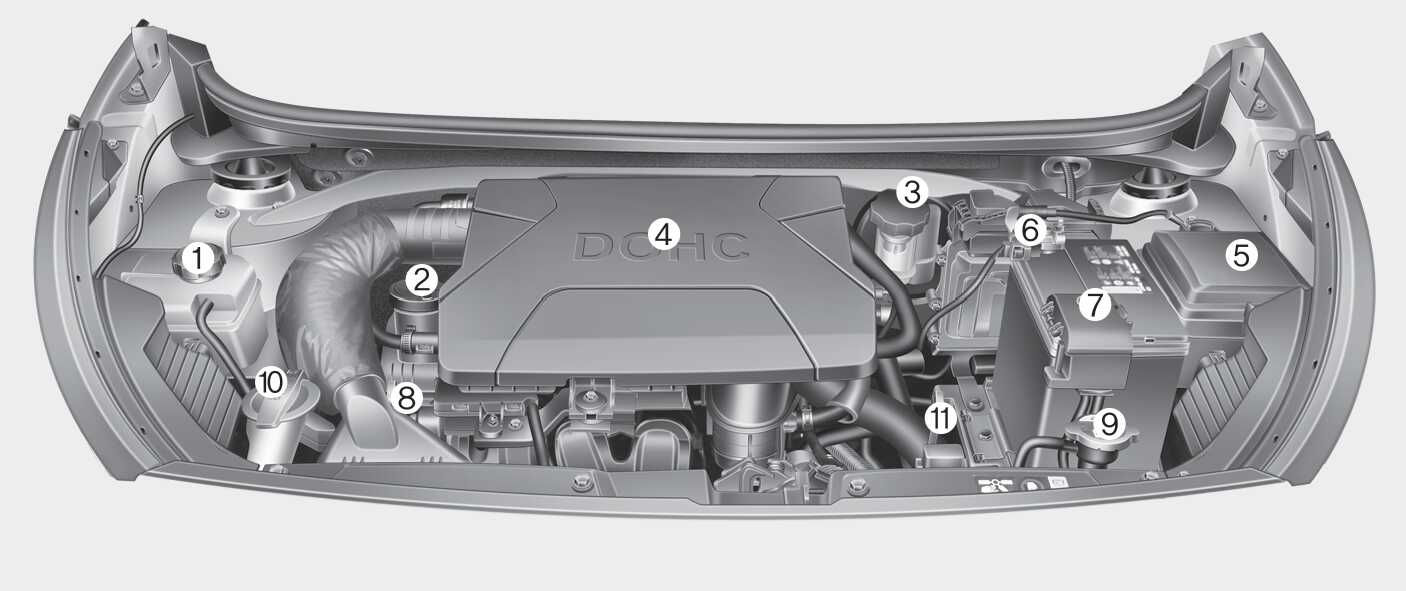

Figure 1. (Gasoline) 1.0 MPI
OJA079001L

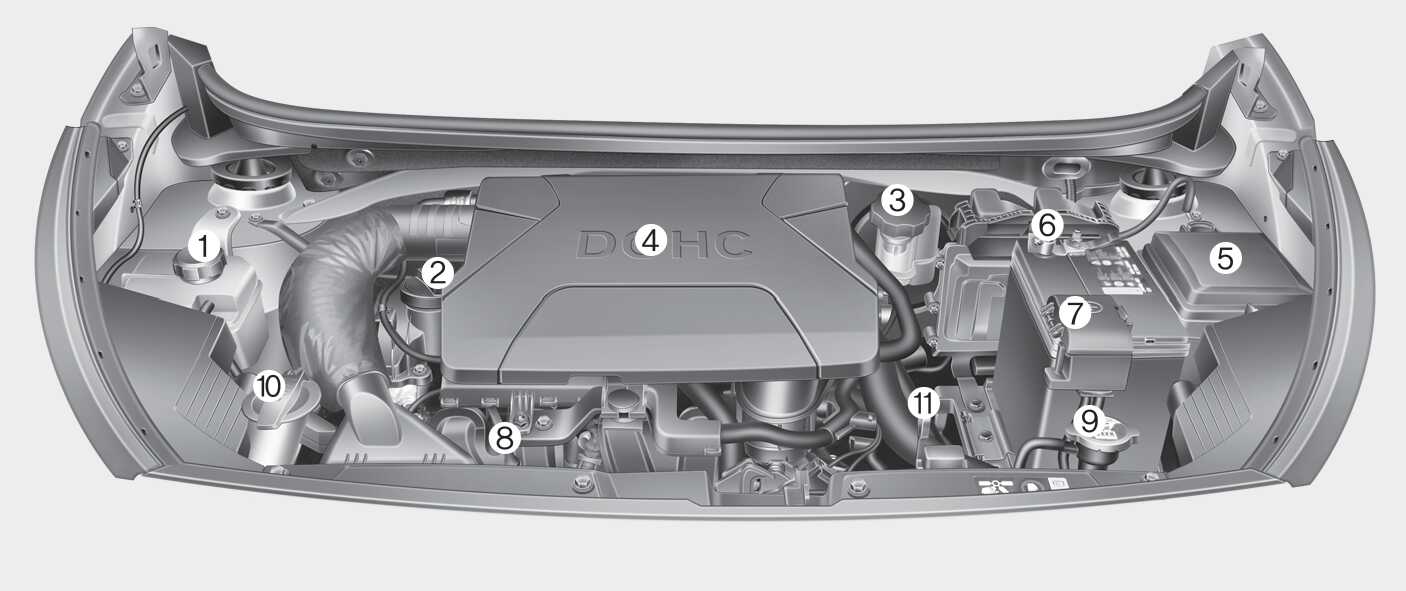

Figure 2. (Gasoline) 1.2 MPI
OJA076003

The actual engine room in the vehicle may differ from the illustration.

  1. Engine coolant reservoir Engine coolant ((Gasoline) 1.0 MPI/1.0 FFV/1.2 MPI, smartstream G1.0/G1.2)

  2. Engine oil filler cap Engine oil

  3. Brake / clutch fluid reservoir Brake/clutch fluid

  4. Air cleaner Air cleaner ((Gasoline) 1.0 MPI/1.0 FFV/1.2 MPI)

  5. Fuse box Fuses

  6. Negative battery terminal Battery

  7. Positive battery terminal Battery

  8. Engine oil dipstick Engine oil

  9. Radiator cap Checking the coolant level, Recommended engine coolant

  10. Windshield washer fluid reservoir Washer fluid

  11. Automatic transmission fluid dipstick Automatic transmission fluid

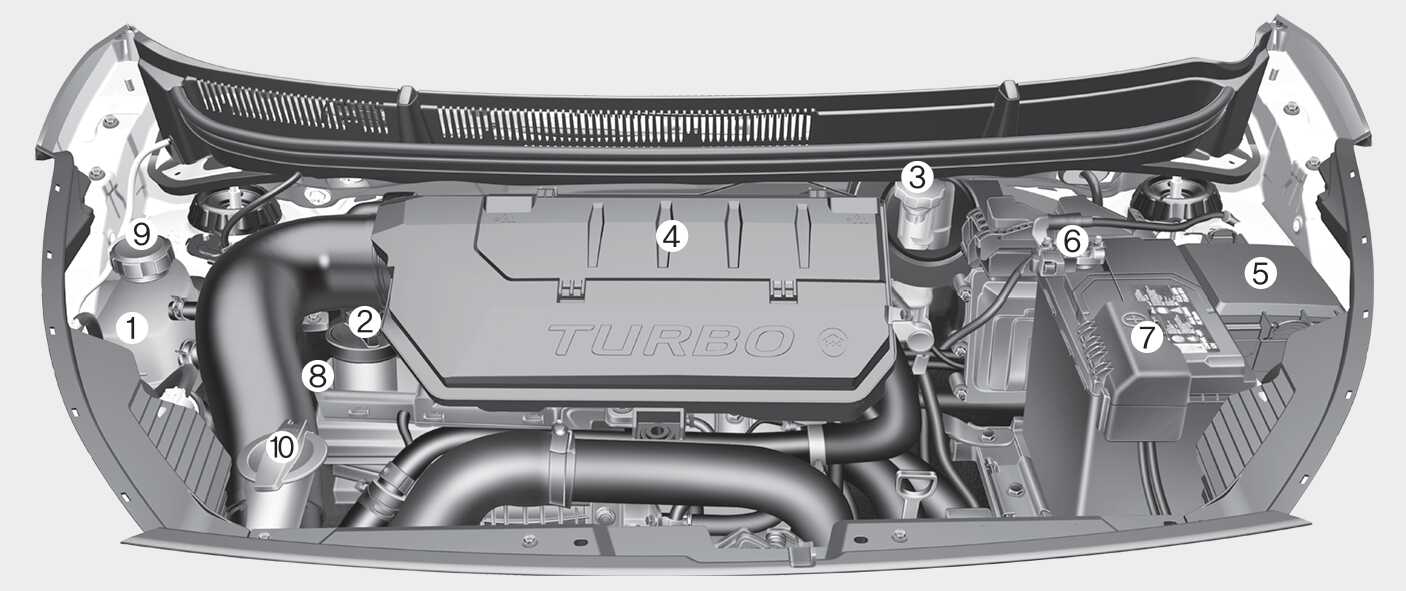

Figure 3. Smartstream G1.0 T-GDi
OJA070091L

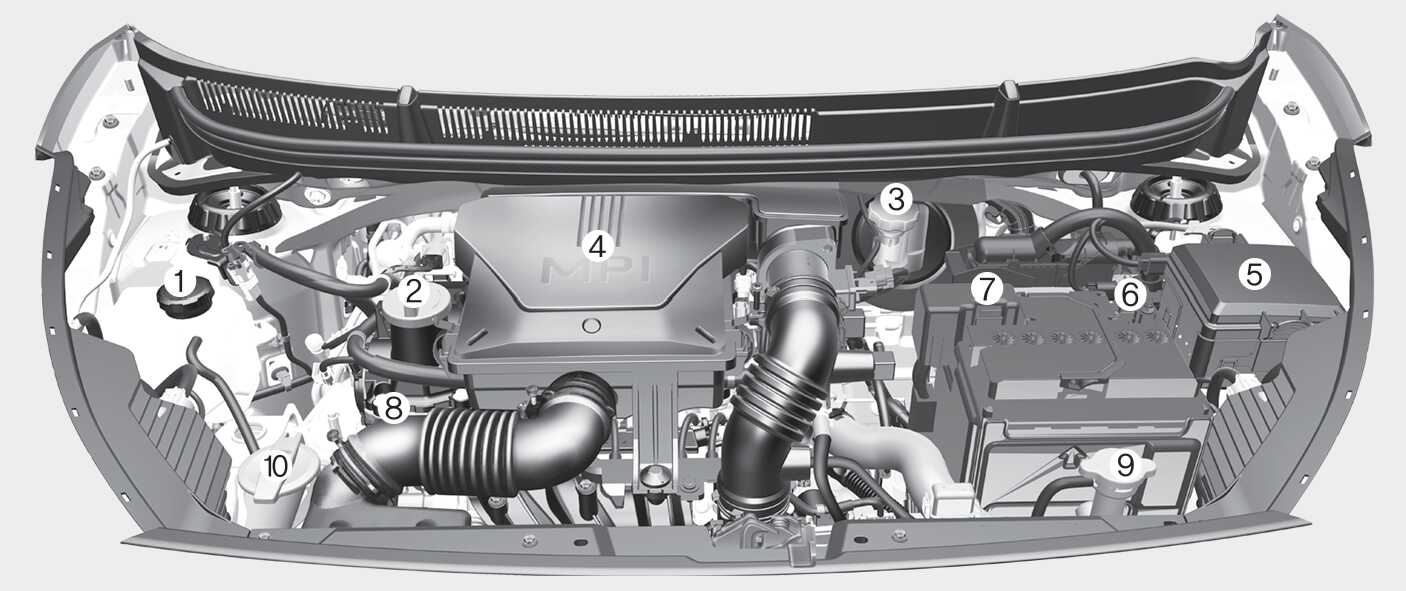

Figure 4. Smartstream G1.0
OJA070001L

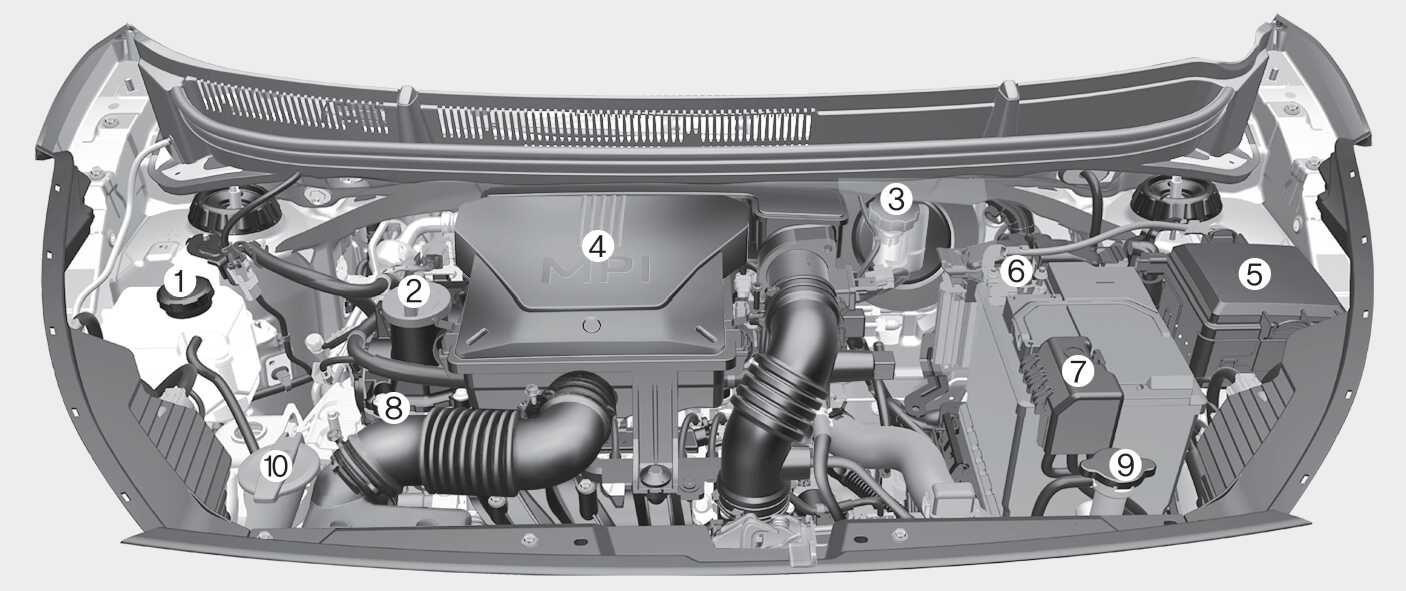

Figure 5. Smartstream G1.2
OJA070157L

The actual engine room in the vehicle may differ from the illustration.

  1. Engine coolant reservoir Engine coolant ((Gasoline) 1.0 MPI/1.0 FFV/1.2 MPI, smartstream G1.0/G1.2), Engine coolant (Smartstream G1.0 T-GDi)

  2. Engine oil filler cap Engine oil

  3. Brake / clutch fluid reservoir Brake/clutch fluid

  4. Air cleaner Air cleaner ((Gasoline) 1.0 MPI/1.0 FFV/1.2 MPI), Air cleaner (Smartstream G1.0/G1.2)

  5. Fuse box Fuses

  6. Negative battery terminal Battery

  7. Positive battery terminal Battery

  8. Engine oil dipstick Engine oil

  9. Radiator cap Checking the coolant level, Recommended engine coolant

  10. Windshield washer fluid reservoir Washer fluid

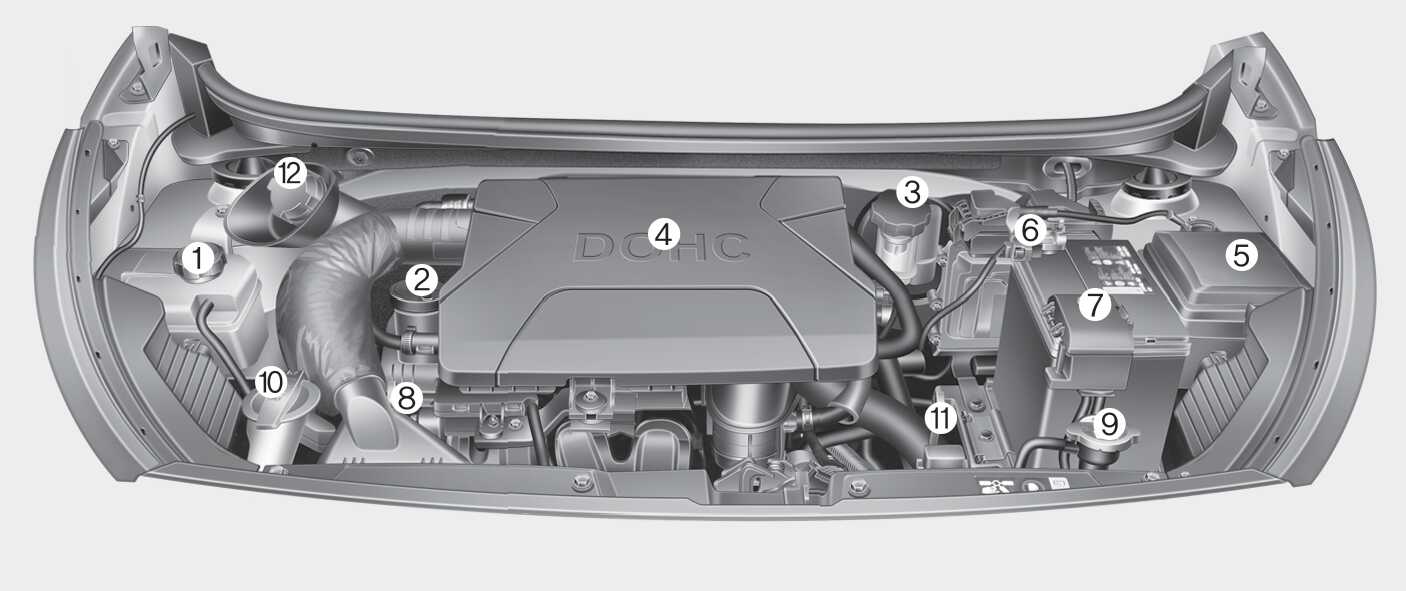

Figure 6. (Gasoline) 1.0 FFV
OJA079096L

The actual engine room in the vehicle may differ from the illustration.

  1. Engine coolant reservoir Engine coolant (Smartstream G1.0 T-GDi)

  2. Engine oil filler cap Engine oil

  3. Brake / clutch fluid reservoir Brake/clutch fluid

  4. Air cleaner Air cleaner ((Gasoline) 1.0 MPI/1.0 FFV/1.2 MPI)

  5. Fuse box Fuses

  6. Negative battery terminal Battery

  7. Positive battery terminal Battery

  8. Engine oil dipstick Engine oil

  9. Radiator cap Checking the coolant level, Recommended engine coolant

  10. Windshield washer fluid reservoir Washer fluid

  11. Automatic transmission fluid dipstick Automatic transmission fluid

  12. Gasoline reservoir Gasoline reservoir in the engine room (Flex fuel vehicle, For Brazil and Paraguay)
