Instrument cluster

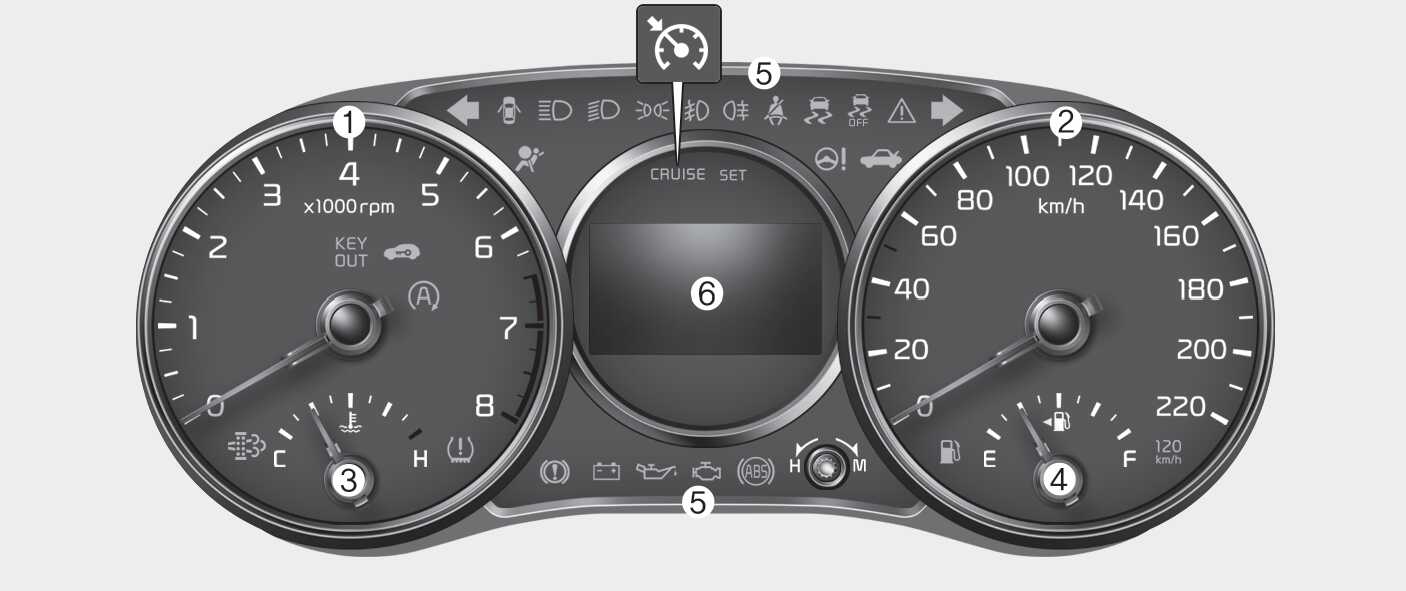

Figure 1. Type A
OJA042100L

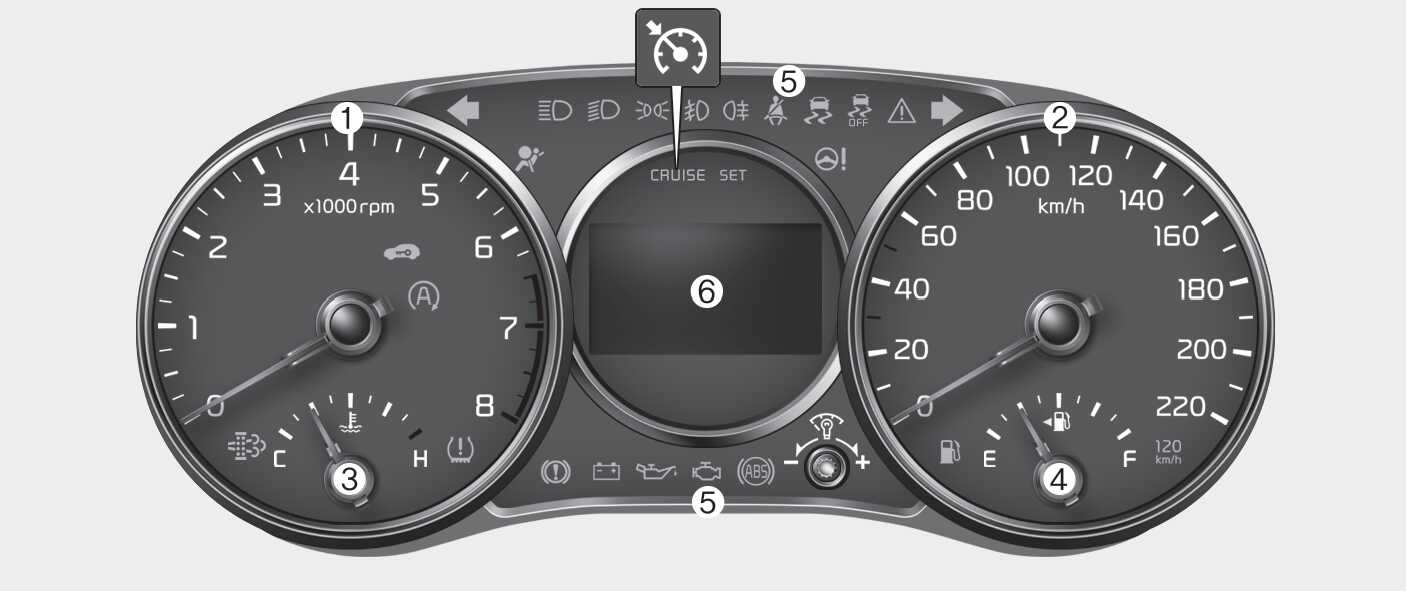

Figure 2. Type B
OJA042101L

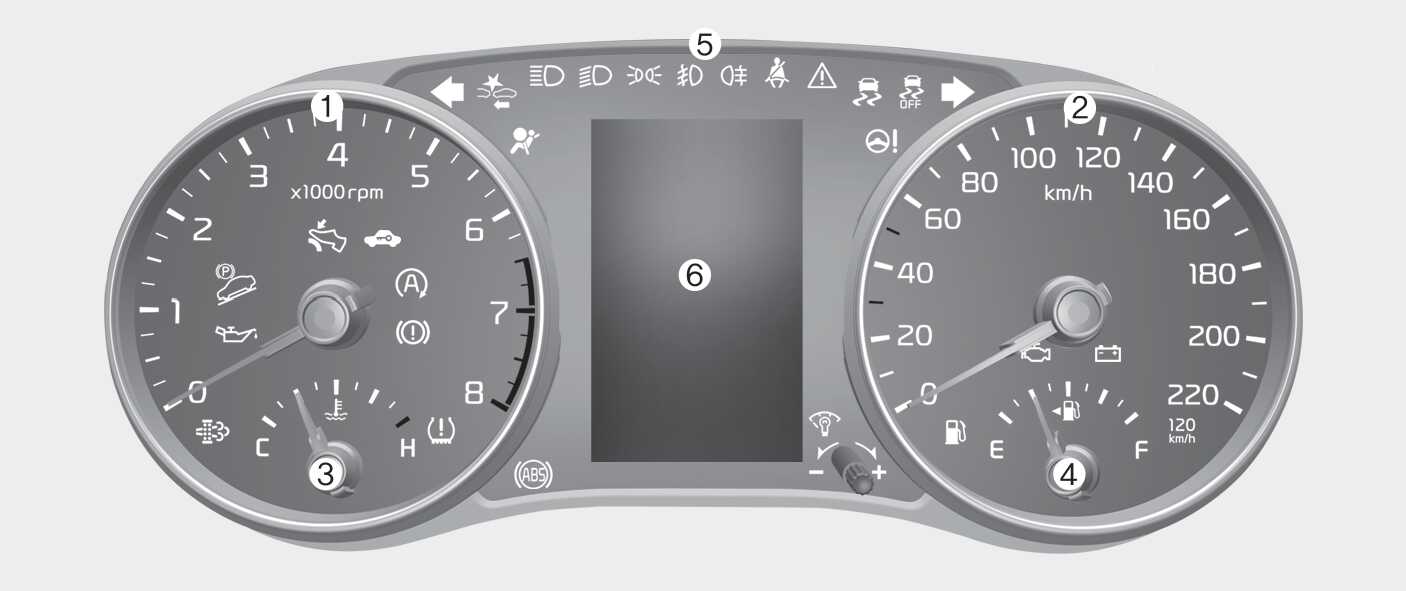

Figure 3. Type C
OJA042568L

  1. Tachometer

  2. Speedometer

  3. Engine coolant temperature gauge

  4. Fuel gauge

  5. Warning and indicator lights

  6. LCD display

The actual cluster in the vehicle may differ from the illustration. For more details, refer to Gauges.
