Transmission shift indicator

Automatic Transmission Shift Indicator: (if equipped)

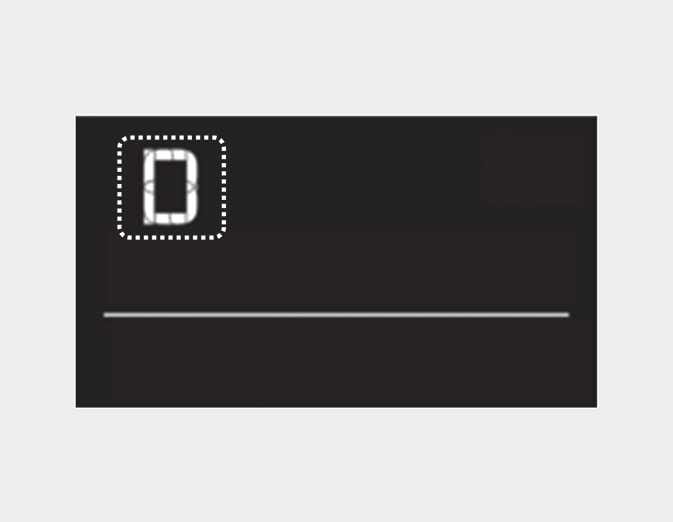

Figure 1. Type A
OJA040138

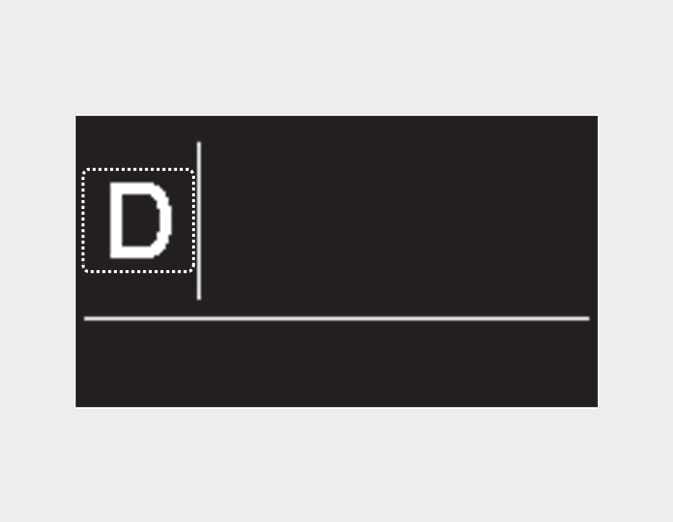

Figure 2. Type B
OJA040570L

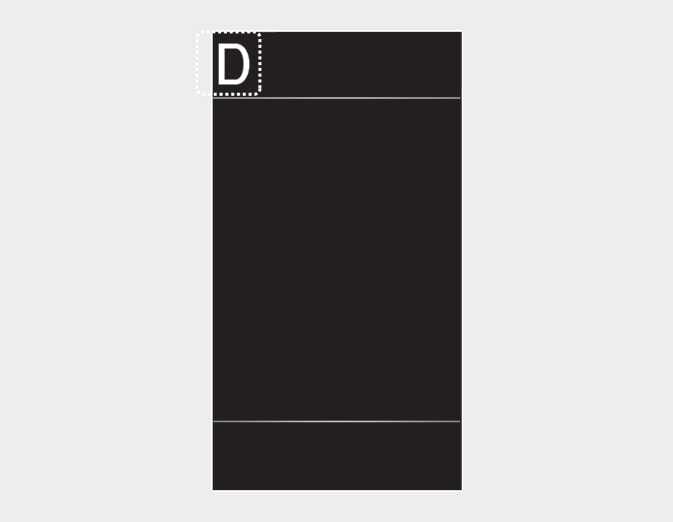

Figure 3. Type C
ODL3049128

This indicator displays which Automatic Transmission shift lever is selected.

  • Park : P

  • Reverse : R

  • Neutral : N

  • Drive : D

  • Sports Mode : 1, 2, 3, 4

Manual Transmission Shift Indicator: (if equipped)

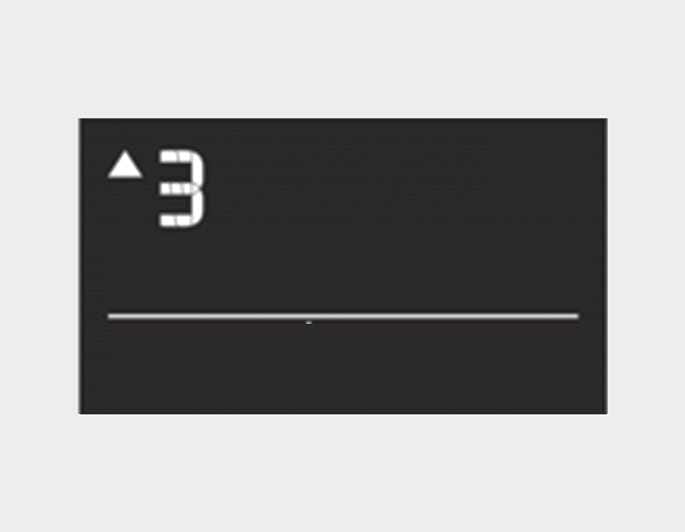

Figure 4. Type A
OJA046138

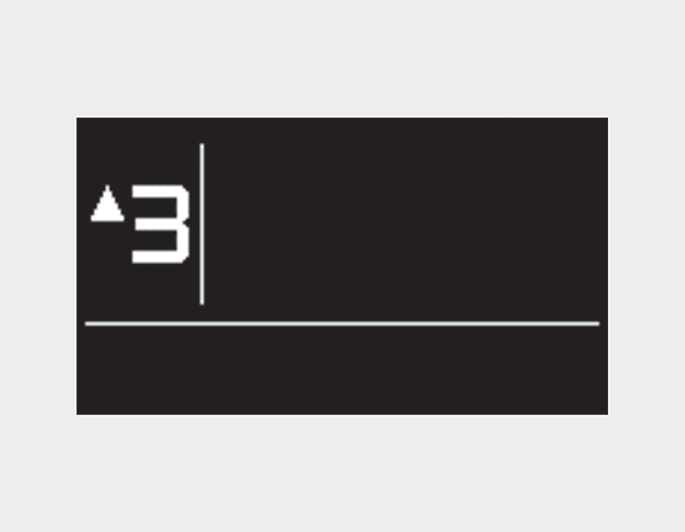

Figure 5. Type B
OJA046142

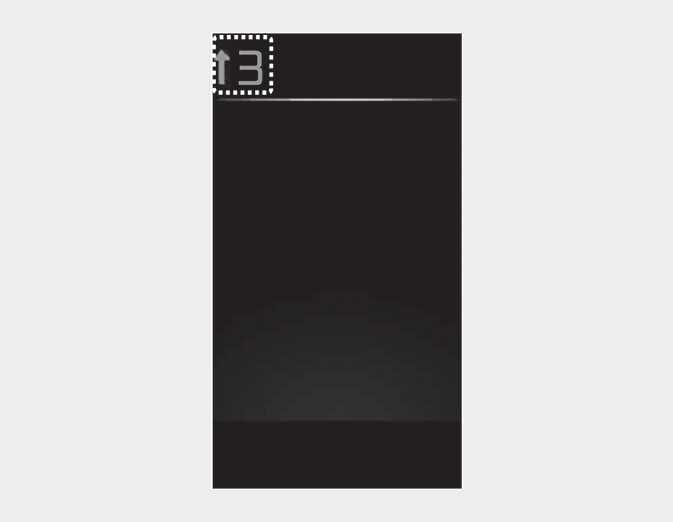

Figure 6. Type C
OJA040569L

This indicator informs which gear is desired while driving to save fuel.

  • Shifting up: ▲ 2, ▲ 3, ▲ 4, ▲ 5

  • Shifting down: ▼ 3,▼ 4

For example

▲ 3: Indicates that shifting up to the 3rd gear is desired (currently the shift lever is in the 2nd or 1st gear).

▼ 3: Indicates that shifting down to the 4th gear is desired (currently the shift lever is in the 4th or 5th gear).

When the system is not working properly, the indicator is not displayed.

Automated Manual Transmission Shift Indicator: (if equipped)

ODL30491280

This indicator displays which Automated Manual Transmission shift lever is selected.

  • Reverse: R

  • Neutral: N

  • Drive Mode: D1, D2, D3, D4, D5

  • Manual Mode: 1, 2, 3, 4, 5

Automated Manual Transmission Shift Indicator in Manual Mode (if equipped)
Figure 7. Type C
OJA040569L0

This indicator informs which gear is desired while driving to save fuel.

  • Shifting up: ▲ 2, ▲ 3, ▲ 4, ▲ 5

For example

▲ 3: Indicates that shifting up to the 3rd gear is desired (currently the shift lever is in the 2nd or 1st gear).

When the system is not working properly, the indicator is not displayed.
