Engine compartment

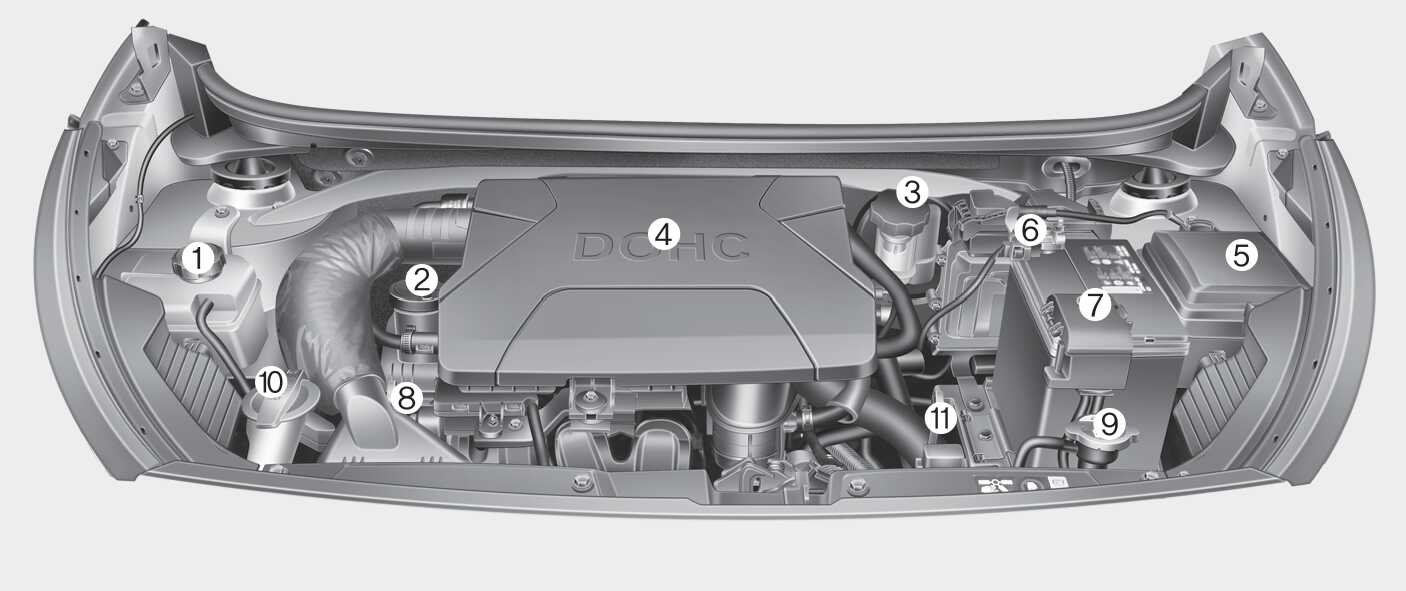

Figure 1. (Gasoline) 1.0 MPI
OJA079001L0

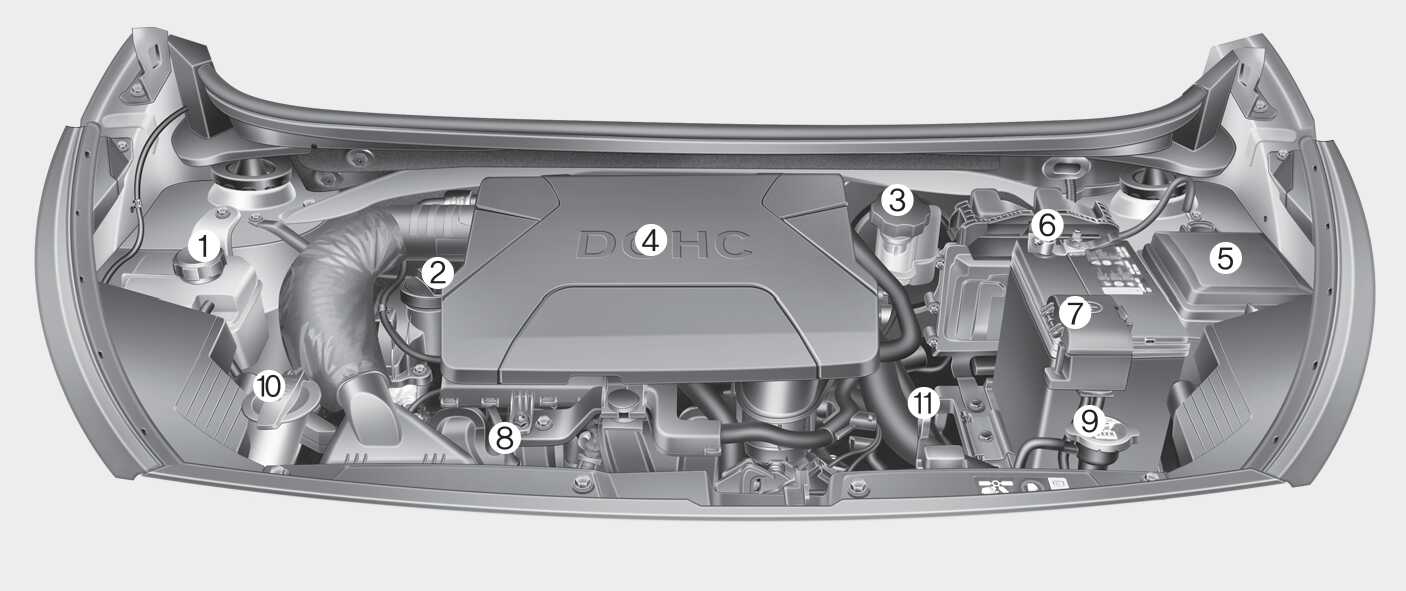

Figure 2. (Gasoline) 1.2 MPI
OJA0760030

The actual engine room in the vehicle may differ from the illustration.

  1. Engine coolant reservoir

  2. Engine oil filler cap

  3. Brake / clutch fluid reservoir

  4. Air cleaner

  5. Fuse box

  6. Negative battery terminal

  7. Positive battery terminal

  8. Engine oil dipstick

  9. Radiator cap

  10. Windshield washer fluid reservoir

  11. Automatic transmission fluid dipstick

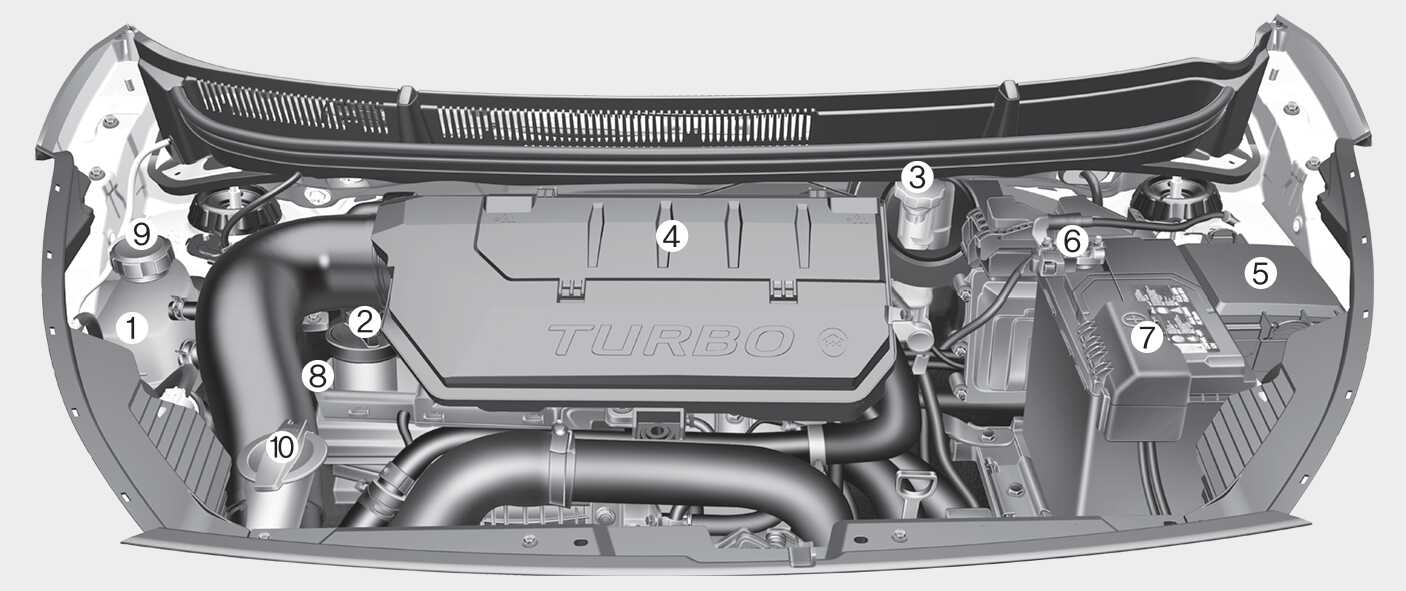

Figure 3. Smartstream G1.0 T-GDi
OJA070091L0

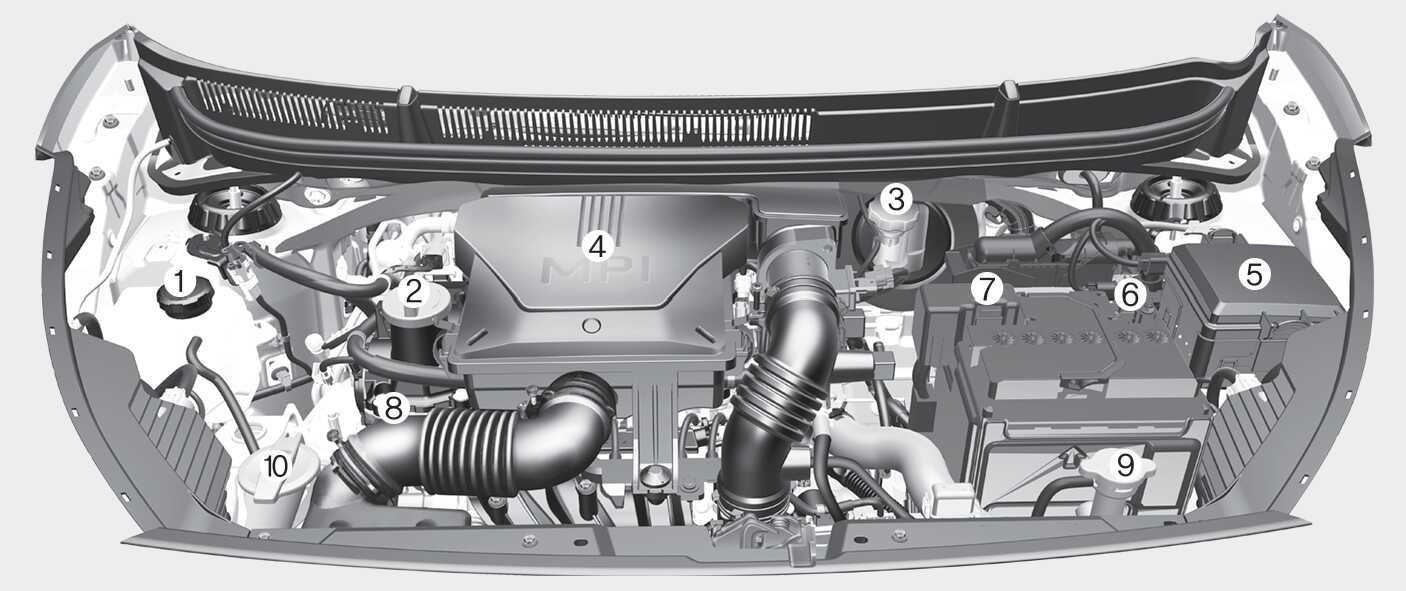

Figure 4. Smartstream G1.0
OJA070001L0

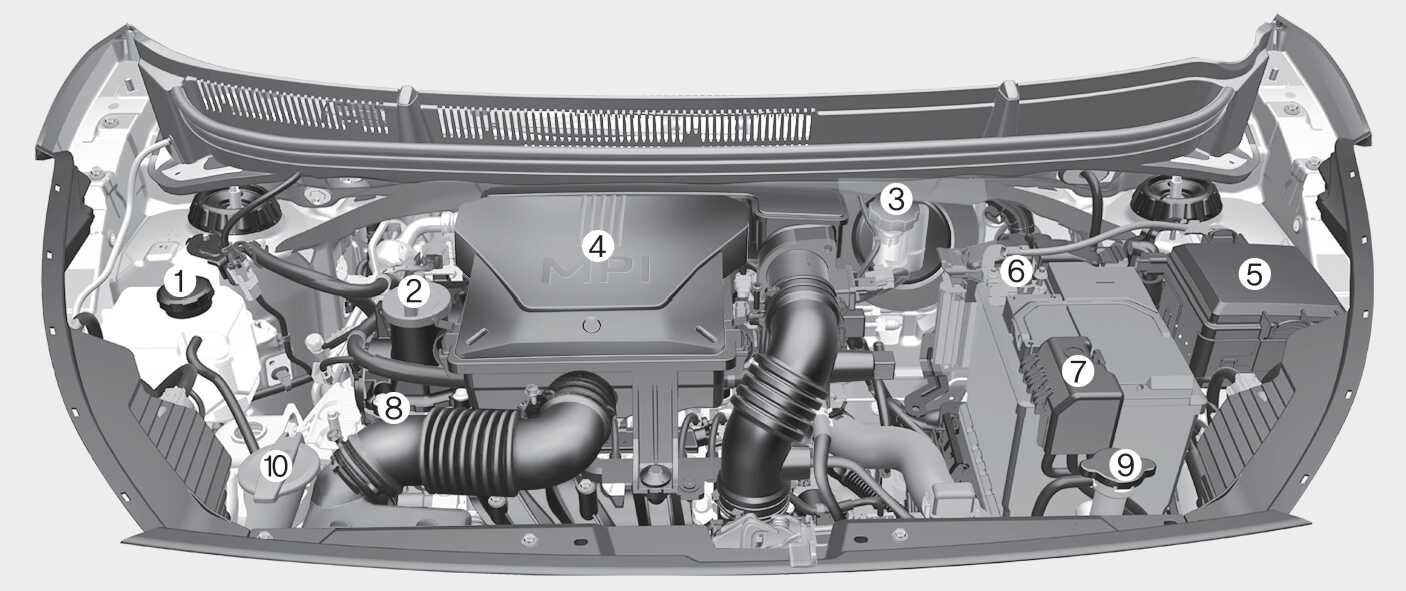

Figure 5. Smartstream G1.2
OJA070157L0

The actual engine room in the vehicle may differ from the illustration.

  1. Engine coolant reservoir

  2. Engine oil filler cap

  3. Brake / clutch fluid reservoir

  4. Air cleaner

  5. Fuse box

  6. Negative battery terminal

  7. Positive battery terminal

  8. Engine oil dipstick

  9. Radiator cap

  10. Windshield washer fluid reservoir

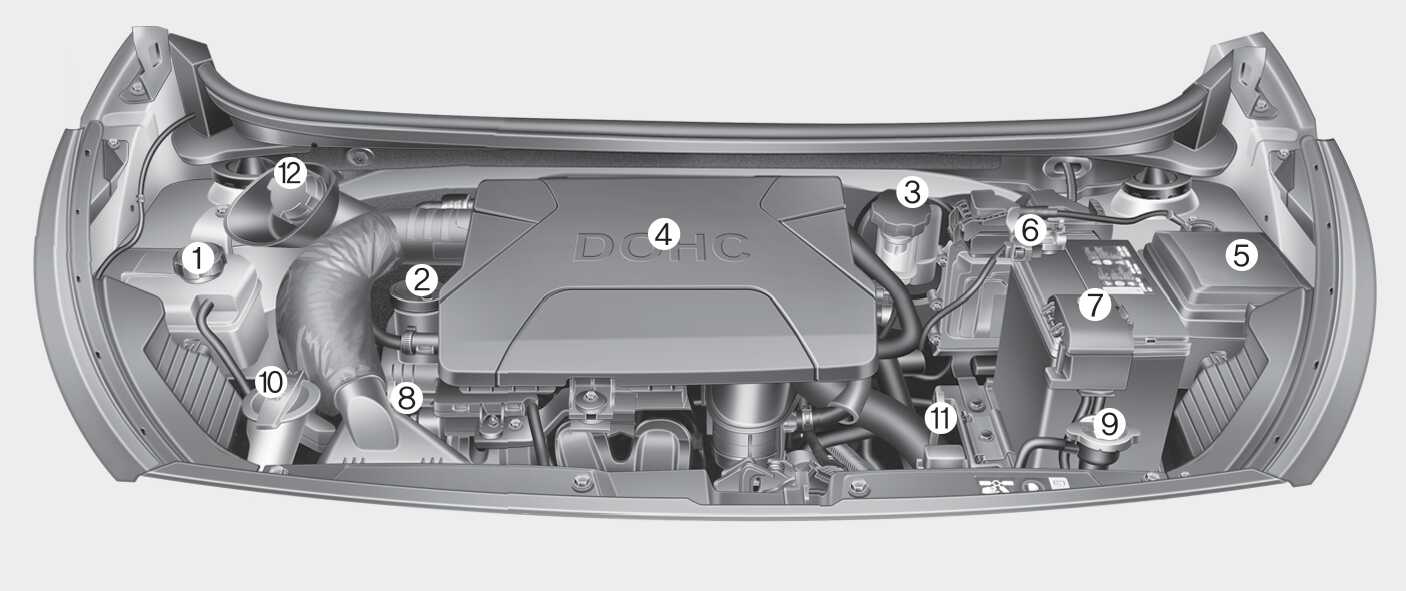

Figure 6. (Gasoline) 1.0 FFV
OJA079096L0

The actual engine room in the vehicle may differ from the illustration.

  1. Engine coolant reservoir

  2. Engine oil filler cap

  3. Brake / clutch fluid reservoir

  4. Air cleaner

  5. Fuse box

  6. Negative battery terminal

  7. Positive battery terminal

  8. Engine oil dipstick

  9. Radiator cap

  10. Windshield washer fluid reservoir

  11. Automatic transmission fluid dipstick

  12. Gasoline reservoir
