Seatback angle (2nd, 3rd row centre seat)

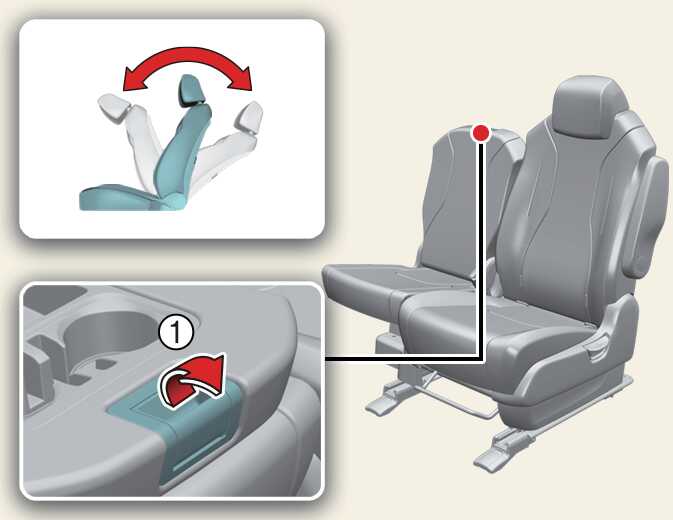

OKA4023072L_2

To recline the seatback:

  1. Pull the centre seatback adjustment lever (1) located on top of centre seatback upward.

  2. Hold the lever and adjust the seatback of the centre seat to the position you desire.

  3. Release the lever and make sure the seatback is locked in place. (The lever MUST return to its original position for the seatback to lock.)

WARNING

  • The seatback recline angle of the 2nd, 3rd row centre seats in an 11 seater vehicle is limited. If the angle of a seatback is adjusted whilst a passenger is seated, the seatback may fall back excessively. Please adjust the seatback angle before taking a seat.

  • The seatback adjustment lever is located on top of the 2nd, 3rd row centre seats for 11 seater vehicles. If a passenger in the 3rd or 4th row seat tampers with the 2nd, 3rd centre seatback adjustment lever, the seatback could fold down suddenly and result in injury and more. Actively prevent possible injury by informing all vehicle passengers that centre seatbacks may fall back suddenly if another passenger operates the centre seatback lever.

NOTE

  • The forward and backward position of the 2nd, 3rd row centre seats in an 11 seater vehicle are adjusted in accordance with the driver side seat of the 2nd, 3rd row seats.

  • The seatback of the 4th row seats do not move - neither forward, backward, nor recline.
