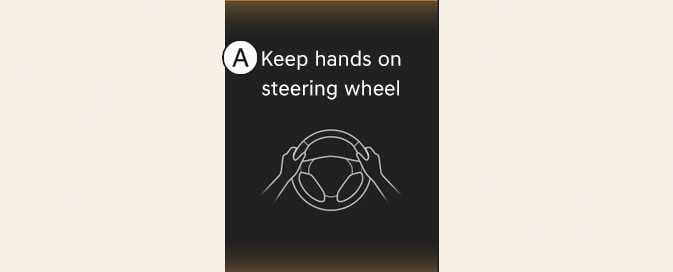

Hands-off warning
OMQ4053086L

A: Keep hands on steering wheel

If the driver takes their hands off the steering wheel for several seconds, the warning message will appear on the cluster, and an audible warning will sound in stages.

WARNING

  • The steering wheel may not be assisted if the steering wheel is held very tight or the steering wheel is steered over a certain degree.

  • Lane Keeping Assist does not operate at all times. It is the responsibility of the driver to safely steer the vehicle and to maintain the vehicle in its lane.

  • The hands-off warning message may appear late depending on road conditions. Always have your hands on the steering wheel whilst driving.

  • If you wear gloves or the steering wheel is held very lightly, the hands-off warning message may appear because Lane Keeping Assist may not recognise that the driver has their hands on the steering wheel.

  • If you attach objects to the steering wheel, the hands-off warning may not work properly.

NOTE

  • Even though the steering is assisted by Lane Keeping Assist, the driver may control the steering wheel.

  • The steering wheel may feel heavier or lighter when the steering wheel is assisted by Lane Keeping Assist than when it is not.

  • If the vehicle detects the lane markings, the gray-coloured lane lines turn white on the cluster.

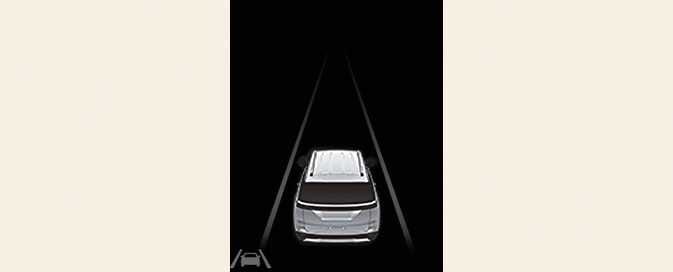

    Figure 1. Lane undetected
    OKA4053015
    Figure 2. Lane detected
    OKA4053016

  • If you select Highway Lane Change Assist, the green lane will appear on the cluster. (if equipped)

  • The images and colours in the instrument cluster may differ depending on the cluster type or theme selected from the settings menu.

  • For more details on the instrument cluster, refer to Forward Collision-Avoidance Assist (FCA) (Sensor Fusion).
