Engine coolant temperature gauge

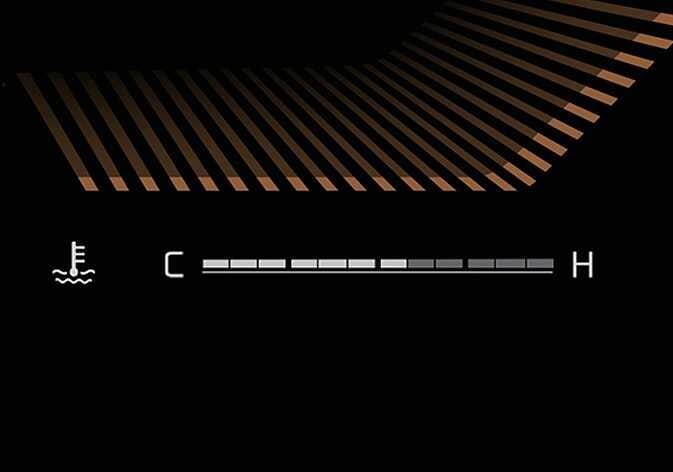

Figure 1. Type A
OMQ4A035107
Figure 2. Type B
OMQ4A035108

This gauge displays the engine coolant temperature when the ENGINE START/STOP button is ON.

NOTE

If the gauge pointer moves beyond the normal range area toward the “H” (Hot) position, it indicates overheating that may damage the engine.

Do not continue driving with an overheated engine. If your vehicle overheats, refer to If the engine overheats.

WARNING

Never remove the radiator cap when the engine is hot. The engine coolant is under pressure and could severely burn you. Wait until the engine is cool before adding coolant to the reservoir.
