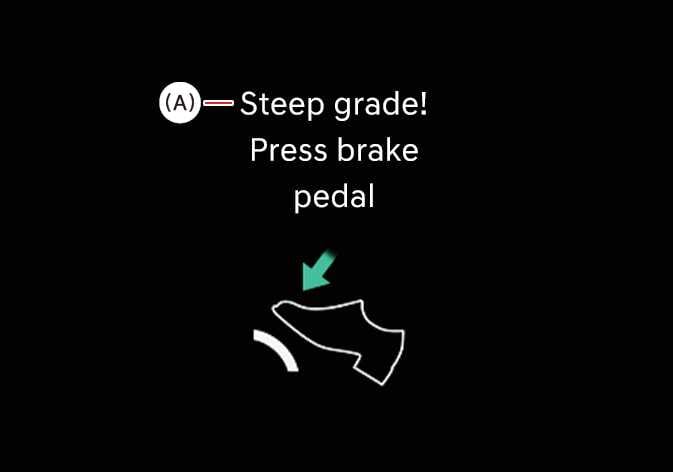

Steep grade

When driving up hills or on steep grades:

• Engage the brake pedal or apply the parking brake to hold your vehicle on an incline.

• When driving in stop-and-go traffic on an incline, keep some distance ahead before moving your vehicle forward. Then hold your vehicle on the incline by engaging the brake pedal.

• If you hold your vehicle on an incline by engaging the accelerator pedal or by creeping uphill with brake pedal disengaged, the clutch and transmission may overheat, which can result in damage. If this happens, the instrument cluster displays a warning message.

• If the warning is active on the instrument cluster, you must engage the brake pedal.

• Ignoring the warnings can result in damage to the transmission.

Transmission high temperature

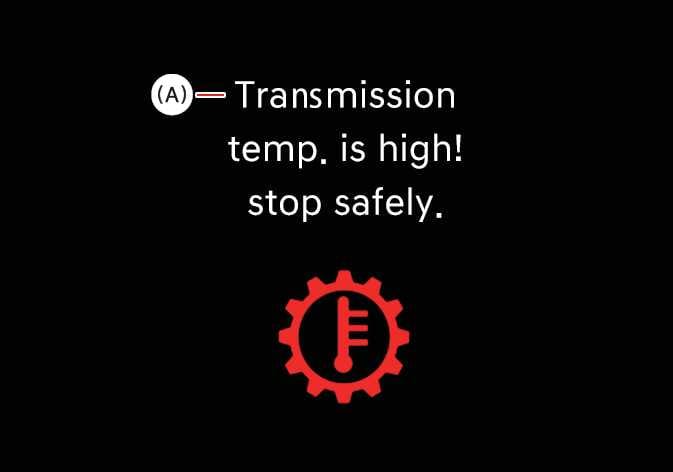

OMQ4A045052

(A) Transmission temp. is high! Stop safely.

• Under certain conditions (such as repeated stop-and-go climbing on steep grades, sudden acceleration, or other harsh driving conditions), the transmission clutch temperatures increase quickly. This may cause the transmission clutch to overheat.

• When the clutch is overheated, the vehicle engages safe protection mode, and the gear shift position indicator on the instrument cluster blinks and sounds a chime. The warning message “Transmission temp. is high! Stop safely” appears on the instrument cluster. Driving may not be smooth.

• Pull over to a safe location, stop the vehicle with the engine running, engage the brake pedal so that you can shift the gear to P (Park), and allow the transmission to cool.

• If you ignore this warning, driving conditions may worsen. You may experience abrupt or frequent shifts or jerks. To return to normal driving conditions, stop your vehicle and engage the brake pedal or shift the gear to P (Park).

  Allow the transmission to cool for a few minutes with the engine ON before driving away.

• Drive your vehicle smoothly when possible.

Transmission overheated

OMQ4A035133

(A) Transmission Hot! Park with engine on

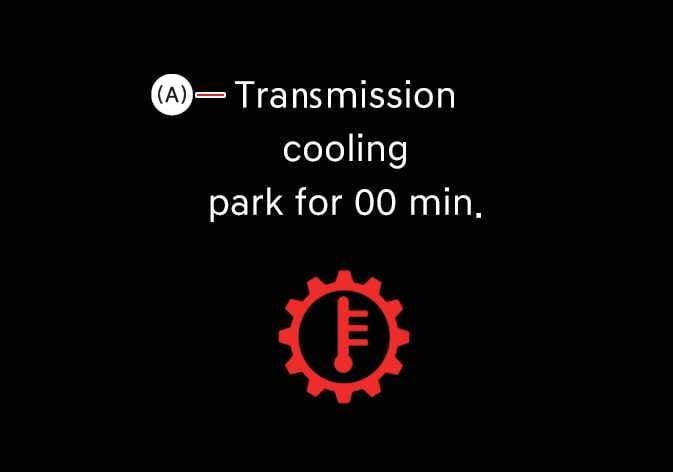

OMQ4A045053

(A) Transmission cooling. Park for 00 min.

OMQ4A035135

(A) Trans cooled. Resume driving.

• If you continue to drive your vehicle and the clutch reaches the maximum temperature limit, the “Transmission Hot! Park with engine on” warning is displayed. When this occurs, the clutch is disabled until it cools to normal temperatures.

• The warning message displays a time to wait for the transmission to cool.

• Pull over to a safe location, stop your vehicle with the engine running, engage the brake pedal, shift the gear to P (Park), and allow the transmission to cool.

• You can continue to drive your vehicle when the message “Trans cooled. Resume driving” appears.

• Drive your vehicle smoothly when possible.

If any of the warning messages on the instrument cluster continue to blink, have the system inspected by an authorized Kia dealer.
