LCD display modes

	Mode
	Trip Computer	Driving Assist	Turn By Turn (TBT)*	Information/Master Warning
Up/Down	Current Trip	Lane Keeping Assist* Smart Cruise Control* Navigation-based Smart Cruise Control* Lane Following Assist* Highway Driving Assist*	Route Guidance	The Master Warning mode displays warning messages related to the vehicle when one or more systems is not operating normally.
	Since Refueling		Destination Info
	Since Last Reset
	Energy Flow
	Driving Force Distribution*			Tire Pressure Monitoring System*
	Range^*1			Engine Temperature

The information provided may differ depending on which functions are applicable to your vehicle.

*1: For Plug-in Hybrid vehicle

* : if equipped

NOTICE

Keep the engine running when configuring the display settings to prevent the battery from discharging.

Trip computer mode

A: Current Trip

Trip
Timer
Avg.

The trip computer mode displays information related to vehicle driving parameters including fuel economy, tripmeter information and timer.

* For more details, refer to More Details and More Details.

Driving Assist mode

This mode displays the state of:

Lane Keeping Assist system
Smart Cruise Control
Lane Following Assist

* For more details, refer to each system information in More Details.

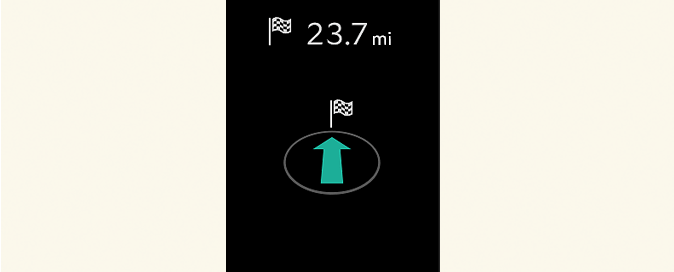

Turn By Turn (TBT) mode

This mode displays the state of the navigation.

Information mode

Engine coolant temperature

A: Engine temperature

This gauge indicates the temperature of the engine coolant when the engine is running.

NOTICE

If the gauge indicator is of the normal range, toward the "130 or H (Hot)" position, it indicates overheating of the engine. It may damage the engine. Do not continue driving with an overheated engine.

Tire pressure status

This mode displays information related to Tire Pressure.

* For more details, refer to More Details.

Master warning mode

This mode informs you of the following situations:

Driver assistance system malfunction, limitation or radar/camera blockage (if equipped)
LED headlamp malfunction
Lamp malfunction
TPMS (Tire Pressure Monitoring System) failure, low tire pressure, etc.

The Master Warning icon () will appear. If the situation re solves, the master warning light will turn off and the Master Warning icon will disappear.
