Reverse Parking Distance Warning Settings

Turning On/Off

  • Press the Parking Distance Warning Off ( ) button to turn on Reverse Parking Distance Warning.

  • With the ENGINE START/STOP button in the ON position, the Parking Distance Warning Off ( ) button indicator light will appear. The function will operate when vehicle speed is below 6 mph (10 km/h).

    If vehicle speed is above 6 mph (10 km/h), the function will not warn the driver even though objects are detected.

Warning Methods

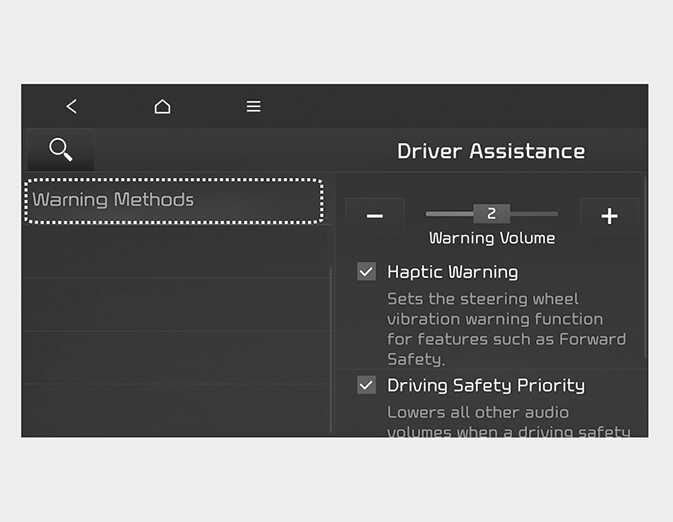

OMQ4A0523881

You can adjust the Warning Methods with the ignition switch or ENGINE START/ STOP button in the ON position.

With the vehicle on,

  • Warning Volume: Select 'User Settings → Driver Assistance → Warning Volume' on the instrument cluster or 'Settings → Vehicle → Driver Assistance → Warning Methods' on the infotainment system to change the Warning Methods. Even if '0' or 'Off' is selected, the function's Warning Volume will not turn off but the volume will sound as '1' or 'Low'.

NOTE

  • Ensure that Warning Sound and Haptic you have set may apply to the Warning volume of other Driver Assistance systems.

  • Warning Sound and Haptic will maintain its last setting even if the vehicle is restarted.

  • If not equipped with the navigation system, select 'User Settings → Driver Assistance' to adjust the Warning Volume.

  • The setting menu may not be available for your vehicle depending on the vehicle features and specifications.

  • Descriptions of each Driver Assistance system may be slightly different from the owner's manual after updating the software of your infotainment system. In this case, scan the QR code in the infotainment system manual to access the web manual for checking the changes.

  • Depending on your update, the menu may be displayed as 'Warning Sound' or 'Warning Methods'.
