Display and control

You can see the status of the Highway Driving Assist operation in the Driving Assist view on the cluster. Refer to LCD display.

Highway Driving Assist will be displayed as below depending on the status of the function.

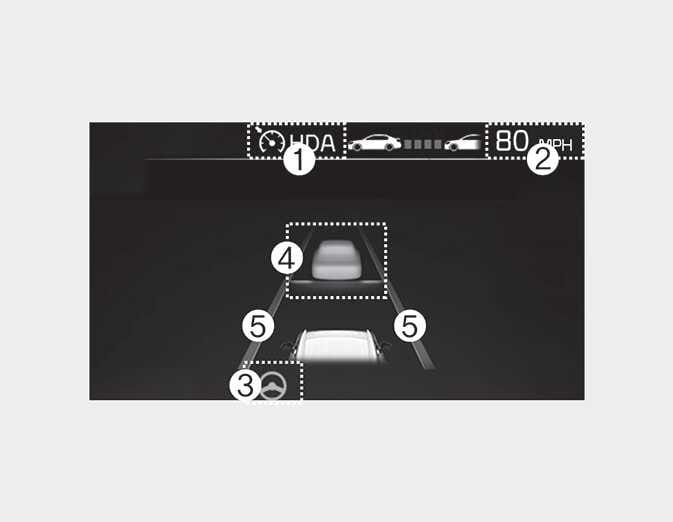

Figure 1. Operating State
OMQ4A050236

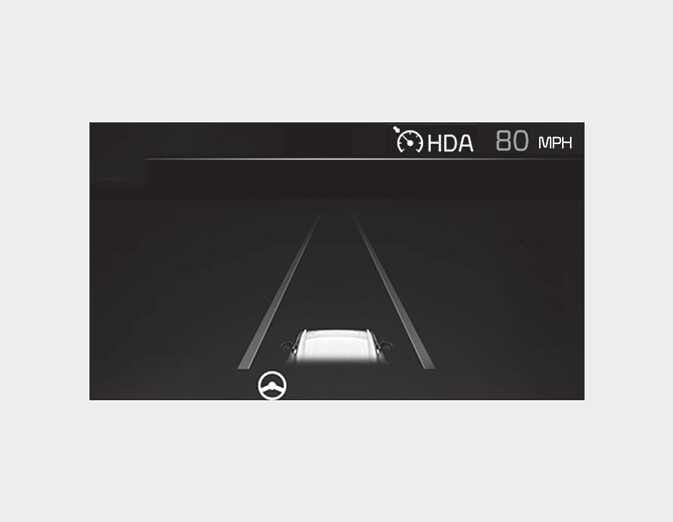

Figure 2. Standby State
OMQ4A050237

  1. Highway Driving Assist indicator, whether there is a vehicle ahead and the selected distance level are displayed.

    • Highway Driving Assist indicator

      • Green ( ): Operating state

      • White ( ): Standby state

  2. Set speed is displayed.

  3. Lane Following Assist indicator displayed.

  4. Whether there is a vehicle ahead and the target vehicle to vehicle distance are displayed.

  5. Whether the lane is detected or not is displayed.

  6. Depending on the instrument panel specifications or theme, images or colors may be displayed differently.

For more details on Lane Following Assist (LFA), refer to Lane Following Assist (LFA).

For more details on Smart Cruise Control (SCC), refer to Smart Cruise Control (SCC).
