Light bulb position (Rear)

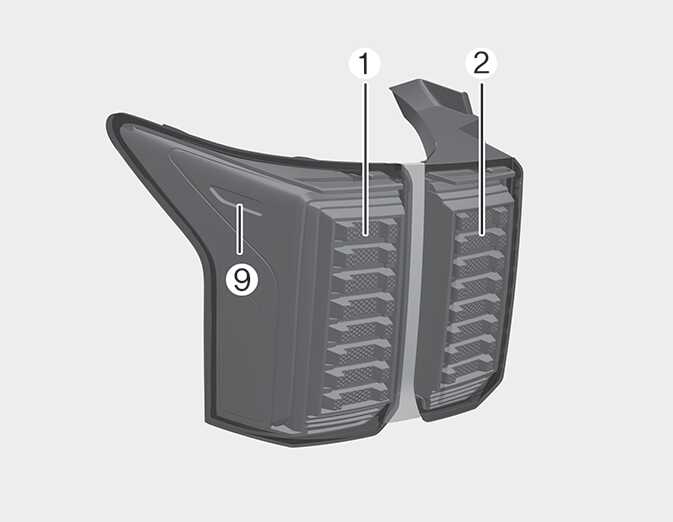

Figure 1. Rear combination lamp - Type A
OMQ4AH070057

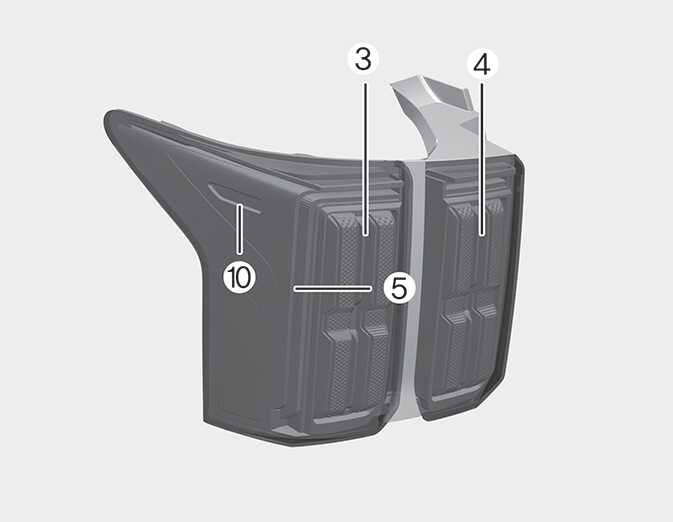

Figure 2. Rear combination lamp - Type B
OMQ4AH070056

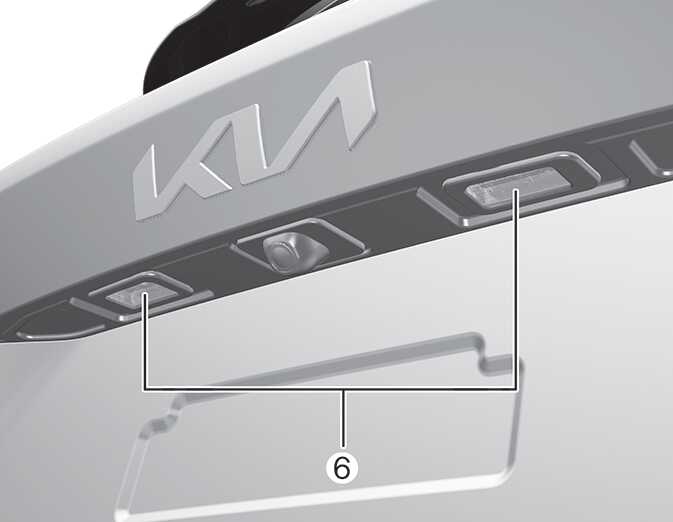

Figure 3. License plate lamp
OMQ4H071052

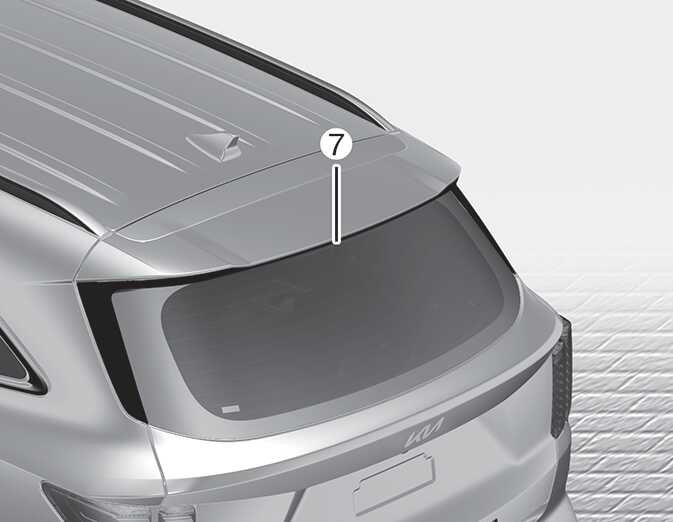

Figure 4. High mounted stop lamp
OMQ4H071058

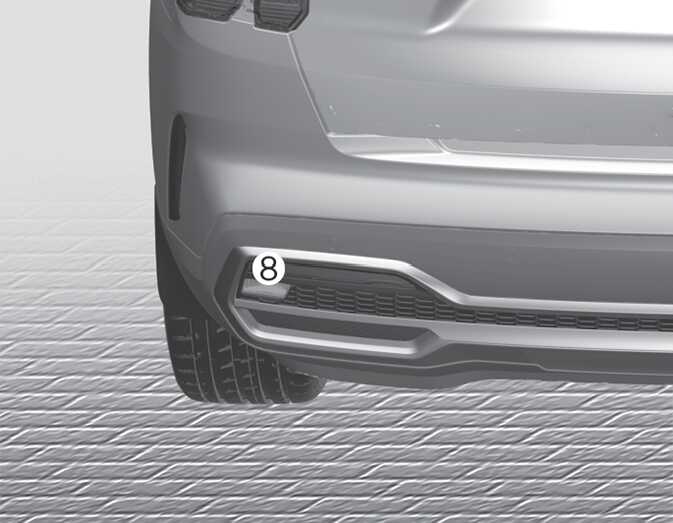

Figure 5. Reversing lamp
OMQ4A072084

  1. Stop and taillamp (Bulb type)

  2. Rear turn signal lamp (Bulb type)

  3. Stop and taillamp (LED type)

  4. Rear turn signal lamp (LED type)

  5. Taillamp (LED type)

  6. License plate lamp (LED type)

  7. High mounted stop lamp (LED type)

  8. Reversing lamp (Bulb type)

  9. Rear side marker lamp (Bulb type)

  10. Rear side marker lamp (LED type)
