How to connect V2L

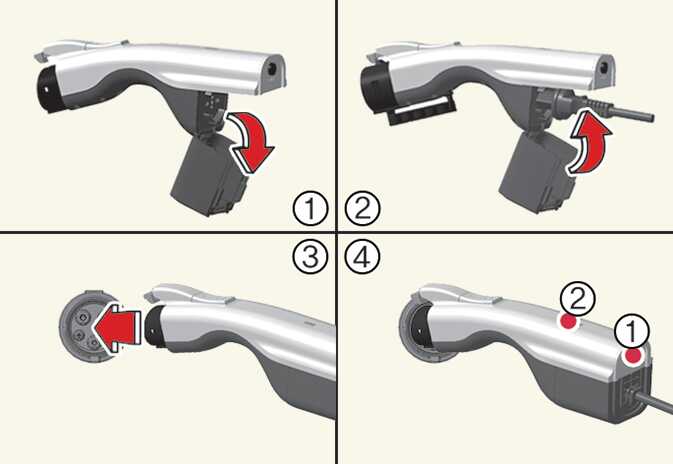

V2L connector: (if equipped)

OCVQ011001_4

  1. Open the cover of the V2L connector.

  2. Close the cover after connecting electronic appliances to the power outlet.

  3. Connect the V2L connector to the charging hole on the vehicle.

  4. Press the switch (A) of the V2L connector and check whether the light (B) is on or off. The light (B) may not turn on normally when:

    • See the battery discharging limit for high voltage battery for driving in Energy consumption menu on the screen. If it is higher than the current amounts of high voltage battery, the light (B) does not turn on.

    • Check whether the light of V2L connector or indoor power outlet turns on or not.

    • If the warning message for V2L appears on the cluster, refer to LCD display messages.

    • If V2L does not operate properly when connecting other electronic appliances, visit an authorized Kia dealer.

  5. Press the switch (A) to turn off the light (B). You can disconnect the V2L connector when the light (B) turns off and the charging door lock is deactivated pressing the door unlock button on the smart key.

V2L power outlet: (if equipped)

  1. Connect to the power outlet located at bottom of the rear seat with the EV button in the ON position.

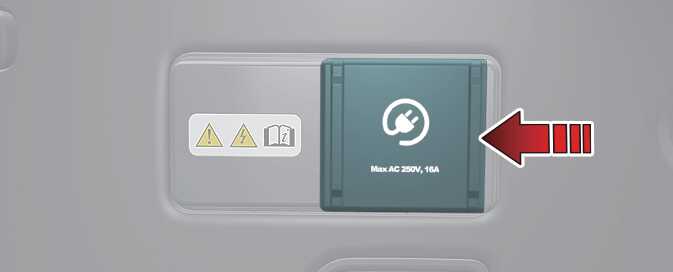

  2. Slide the V2L power outlet cover to the left.

    OMVQ013017

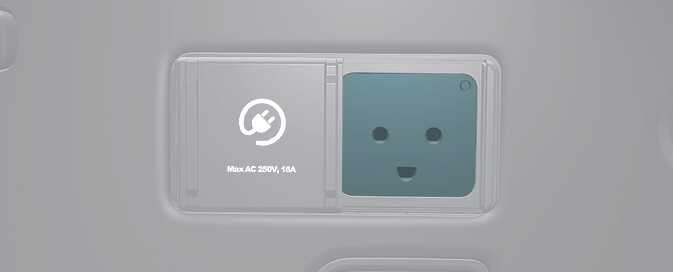

  3. Check the operation status at the front indicator of the power outlet.

    OMVQ013067

    • Blue: Standby

    • Red: No power supply even though the power outlet is connected

    • Green: The power outlet is connected correctly to provide power
