Charging status
When charging the high voltage battery, the charge level can be checked from outside the vehicle.
OMVQ013004
|
Lamp status |
Battery SOC [%] |
|---|---|
 OMVQ013005 |
0~24 |
 OMVQ013006 |
25~49 |
 OMVQ013007 |
50~74 |
 OMVQ013008 |
75~100 |
When charging, the indicator lamp blinks according to each level of the battery.
When charging fails, the indicator lamp blinks in red.

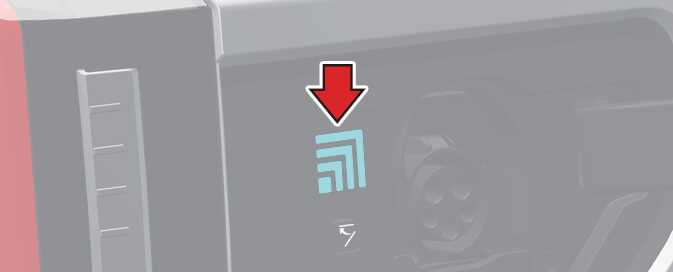

The charge indicator lamp is located in the back of the vehicle inside the charging door.
