Setting the charge level of the portable charger

OCVQ011107N

  1. Check the rated current of the electric outlet prior to connecting the plug to the outlet.

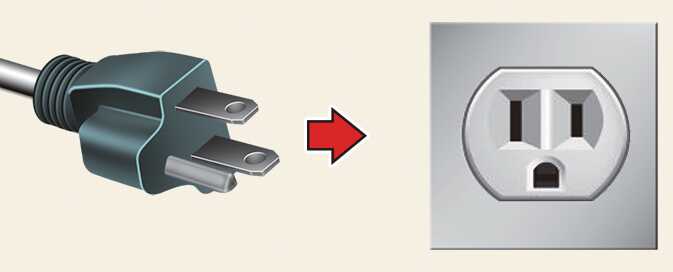

  2. Connect the plug to a household electric outlet.

  3. Check the display window on the control box.

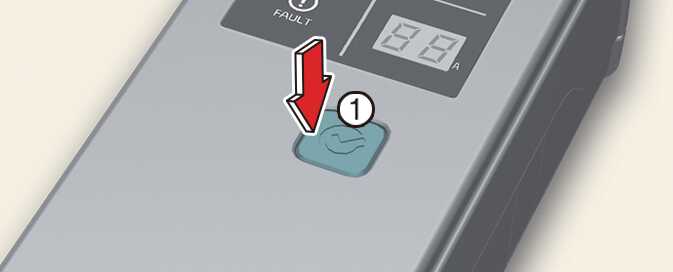

  4. Press the button (1) on the back of the control box for 2 to 8 seconds to adjust the charge level. (Refer to charging cable type and example for setting the charge level.)

    OCVQ011021L

  5. The charge level on the display window of the control box changes every time you press the button (1).

  6. When setting the charge level is complete, start charging according to the portable charge procedure.

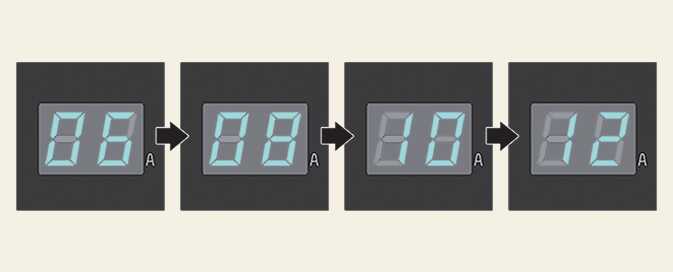

Figure 1. Control box display window
OCVQ011023L

Example for setting the ICCB charge level

The example is only for reference and may vary according to the surrounding environment.

Outlet current

ICCB charge level

14-16A

12A

13-12A

10A

11-10A

8A

9-8A

6A
