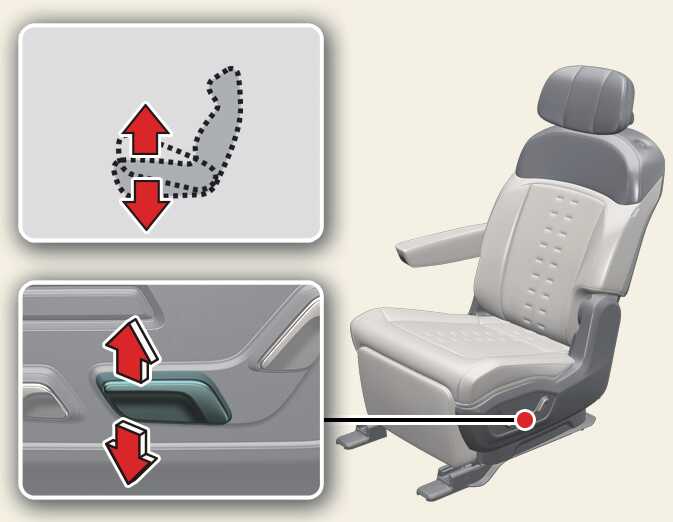

Changing seat cushion tilt: (if equipped)

OMV023179N_2

To change the height of the seat:

  1. Pull the front portion of the control switch up to raise or press down to lower the front part of the seat cushion.

  2. Release the switch once the seat reaches the desired position.

NOTE
  • To prevent damage to surrounding parts, the cushion tilt adjustment and seatback angle adjustment may be restricted depending on the position of the 2nd row seats.

    • Adjust the cushion tilt down when the angle of the backrest can no longer be adjusted backwards. The angle of the seatback can be adjusted a little further back.

    • When the cushion tilt no longer goes up, adjust the angle of the seatback forward. You can raise the cushion tilt a bit more.

  • For the 2nd row seat, the function of the corresponding control switch may vary depending on the forward/backward position and the angle of the seatback.

    • If the seats in the 2nd row are moved forward a lot, the seats move backward when the seatback angle adjustment switch or the front/rear position adjustment switch is pushed backward.

    • If the seats in the 2nd row are moved a lot to the rear and the backrest angle is folded a lot, push the seatback angle adjustment switch backward to straighten the backrest angle as much as the initial set angle of the vehicle.

  • To prevent getting caught, the position of the seat may not move forward, and the angle of the seatback may not be folded beyond a certain level.

  • When adjusting the driver's seat, if there is not enough space between the second row seat on the driver's side, it is automatically adjusted first to secure space, and then the driver's seat is adjusted.
