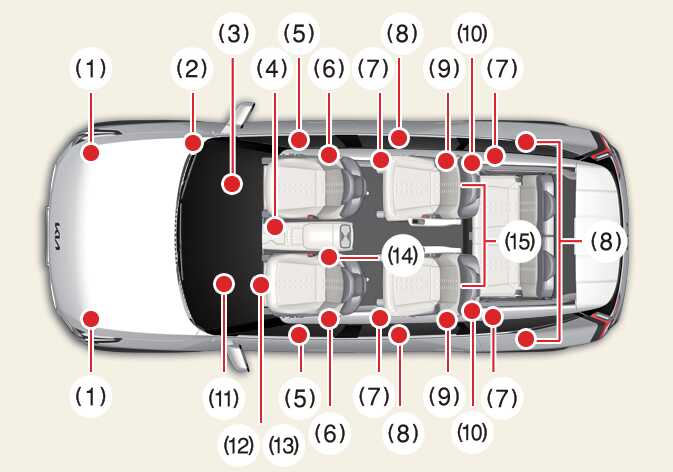

SRS components and functions

OMV024044L

  1. Front impact sensors

  2. Passenger's front air bag ON/OFF switch*

  3. Passenger's front air bag module

  4. SRS control module (SRSCM)/rollover sensor

  5. Side pressure sensors

  6. Front side air bag modules

  7. Retractor pre-tensioner assemblies

  8. Side impact sensors

  9. 2nd row seat side airbag module

  10. Curtain air bag modules

  11. Driver's knee airbag module*

  12. Driver's front air bag module

  13. Air bag warning light

  14. Driver's center side air bag module

  15. Swiveling seat detection sensor (if 6-seater swiveling seats are equipped)

The actual features in your vehicle may not necessarily be available due to the selected options or regions.

* : if equipped

Operating condition(s)

  • When EV button is in ON position, the SRS air bag warning light will appear for approximately 6 seconds and go out.

WARNING

If any of the following conditions occurs, this indicates a malfunction of the SRS. In this case, have the system inspected by a professional workshop. Kia recommends visiting an authorized Kia dealer/service partner.

  • The light does not turn on briefly when you turn the vehicle ON.

  • The light stays on after illuminating for approximately 6 seconds.

  • The light comes on while the vehicle is in motion.

  • The light blinks when the vehicle is in ON position.
