Overview

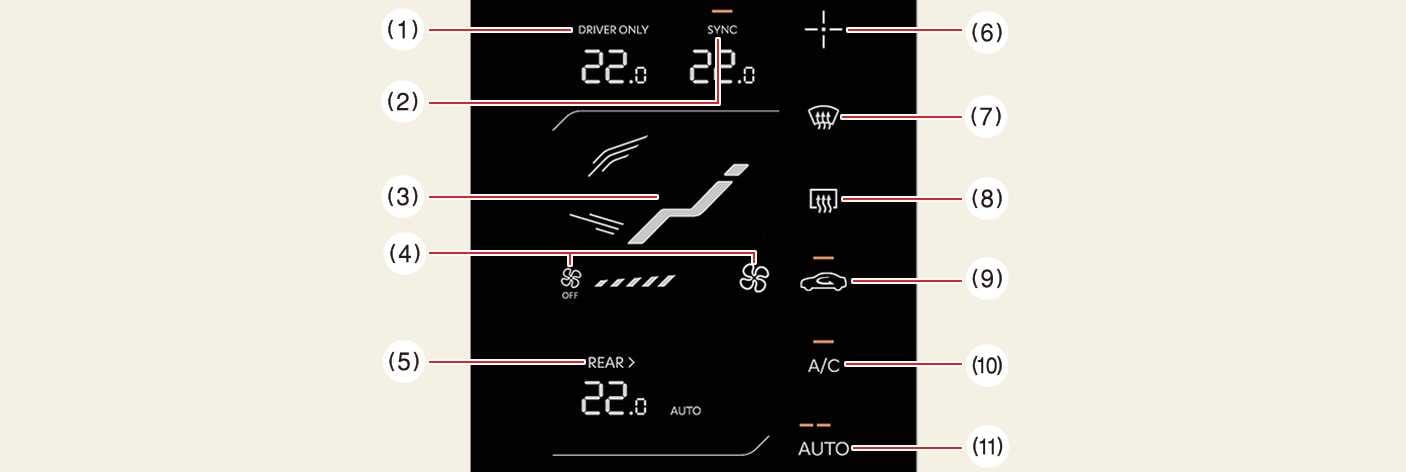

Figure 1. Front seat (Climate control display)
OMV054341L

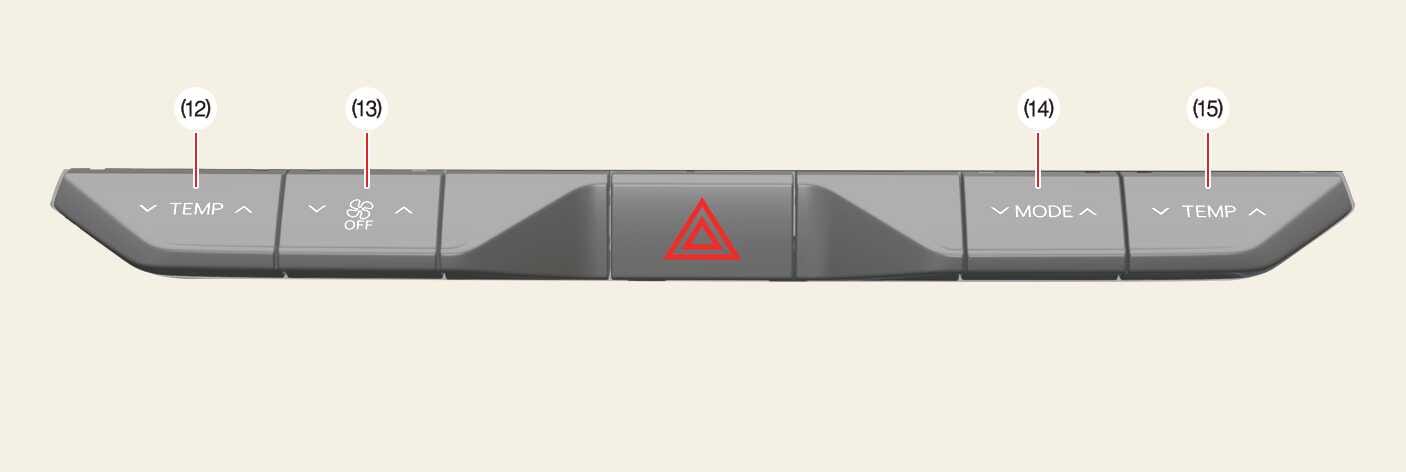

Figure 2. Front seat (Instrument panel)
OMV054202L

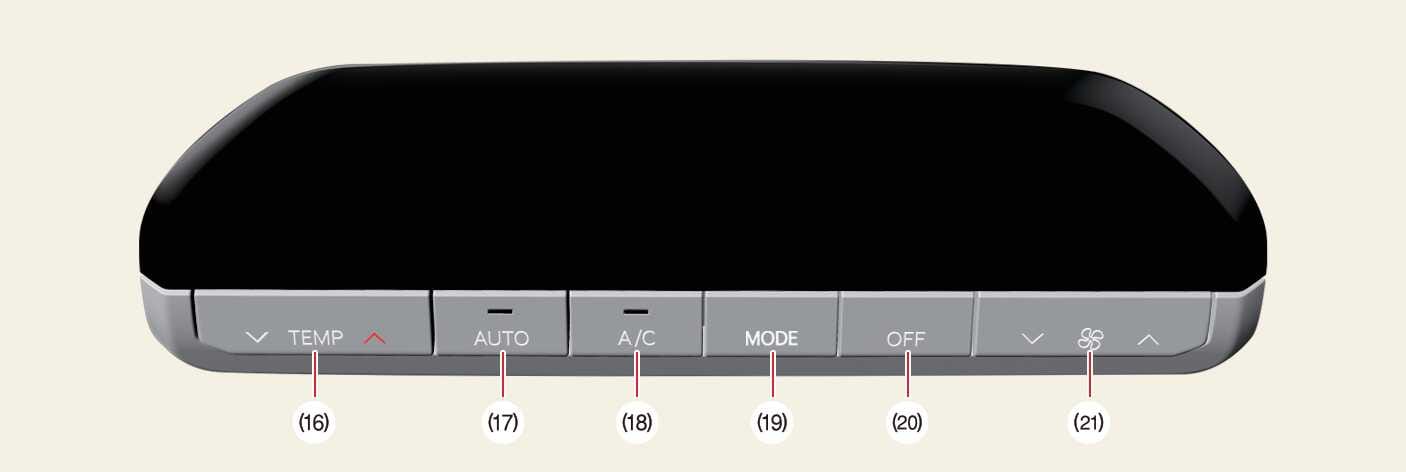

Figure 3. Rear
OMV054203L

  1. Driver only select button

  2. SYNC button

    • Press the SYNC button to adjust the driver and passenger side temperature to same value.

  3. Mode selection button

  4. Fan speed control/OFF button

  5. Front/rear climate control switching button

  6. Infotainment system screen ON/OFF button

  7. Front-windshield defroster button

  8. Rear-window defroster button

  9. Air intake control button

  10. Air conditioning A/C button

  11. AUTO (automatic control) button

  12. Driver's side temperature control lever

  13. Fan speed control/OFF lever

  14. Mode selection lever

  15. Passenger's side temperature control lever

  16. Rear temperature control button

  17. Rear AUTO (automatic control) button

  18. Rear air conditioning A/C button

  19. Rear mode selection button

  20. Rear climate control OFF button

  21. Rear fan speed control button
