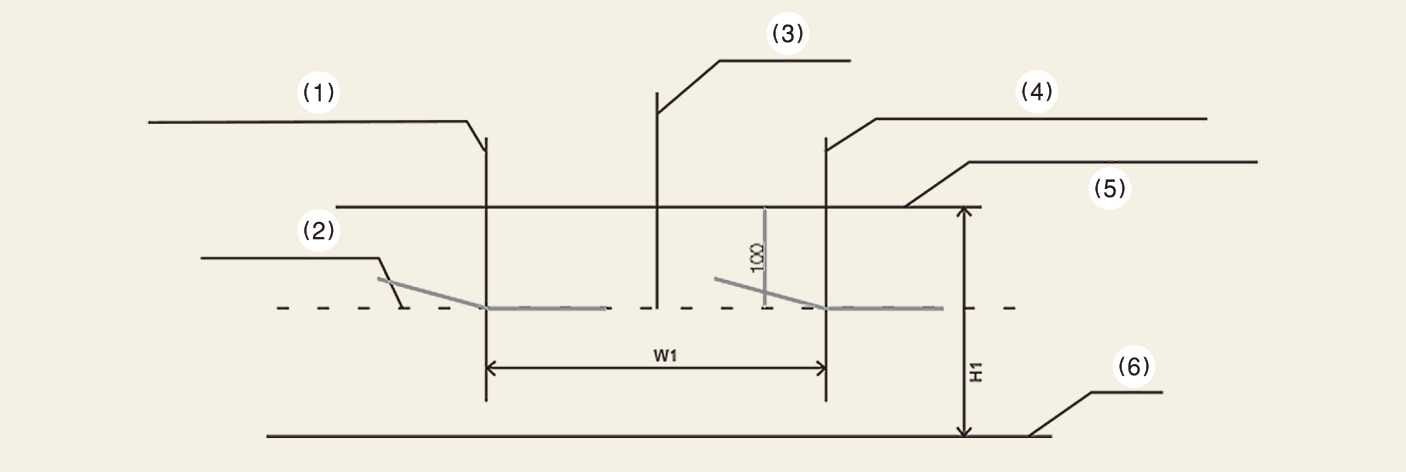

Head lamp low beam (RHD Vehicle)
Figure 1. Based on 10m screen
OMV094051L

(1) Vertical line of the left head lamp bulb center

(2) Cut-Off line

(3) Vehicle axis

(4) Vertical line of the right head lamp bulb center

(5) Horizontal line of head lamp bulb center

(6) Ground

Operation

  • Turn the low beam on without driver aboard.

  • The cut-off line should be projected in the cut-off line shown in the picture.

  • When aiming the low beam, vertical aiming should be adjusted after adjusting the horizontal aiming.

  • Disengage the parking brake and put the gear in N (Neutral), in addition, if headlamp leveling device is equipped, adjust the headlamp leveling device switch to '0'.
