Suitability of each seating position for belted & ISOFIX Child Restraint Systems (CRS) according to UN regulations
(Information for use by vehicle users and CRS manufacturers)
|
CRS categories |
Seating positions |
||||||
|---|---|---|---|---|---|---|---|
|
1 |
2 |
3 |
4 (3Point Belt) |
5 |
|||
|
Airbag ON (or Activated) |
Airbag Off (or Dectivated) |
||||||
|
Universal belted CRS |
All mass groups |
- |
No |
Yes *1 F, R |
Yes F, R |
Yes F, R |
Yes F, R |
|
i-size CRS (If i-size symbol is not applied, No) |
ISOFIX CRF (F2, F2X, R1, R2) |
- |
No |
No |
Yes F, R |
- |
Yes F, R |
|
Carry-cot (ISOFIX lateral facing CRS) |
ISOFIX CRF (L1, L2) |
- |
No |
No |
No |
- |
No |
|
ISOFIX infant* CRS (* : ISOFIX baby CRS) |
ISOFIX CRF (R1) |
- |
No |
No |
Yes R |
- |
Yes R |
|
ISOFIX toddler CRS - small |
ISOFIX CRF (F2,F2X, R2,R2X) |
- |
No |
No |
Yes F, R |
- |
Yes F, R |
|
ISOFIX toddler CRS – large* (*: not booster seats) |
ISOFIX CRF (F3, R3) |
- |
No |
No |
Yes F, R |
- |
Yes F, R |
|
Booster Seat – reduced Width |
ISOFIX CRF (B2) |
- |
No |
No |
Yes |
No |
Yes |
|
Booster Seat – full Width |
ISOFIX CRF (B3) |
- |
No |
No |
Yes |
No |
Yes |
* 1. If cushion height adjuster function is equipped, cushion should be adjusted to the highest position.
otherwise (not equipped cushion height adjuster function ) seatback should be adjusted to upright position.
|

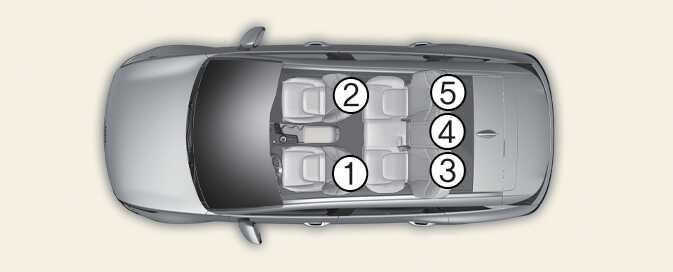

Seat Number Position in the vehicle |
||
|---|---|---|
|
1 |
Front left |
 ONQ5023126L |
|
2 |
Front right |
|
|
3 |
2nd row left |
|
|
4 |
2nd row center |
|
|
5 |
2nd row right |
|
If the vehicle headrest prevents proper installation of a CRS, the headrest of the seating position shall be readjusted or entirely removed
Never place a rearward facing Child Restraint System on the front passenger seat, unless the air bag is deactivated.
