High Beam Assist (HBA): (if equipped)

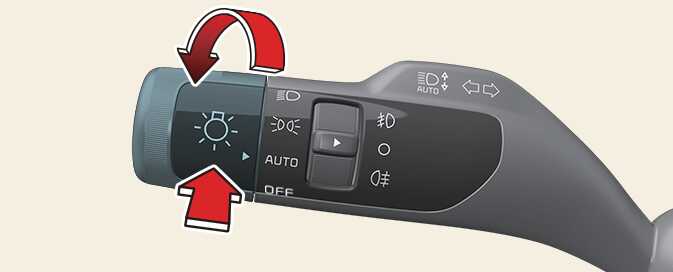

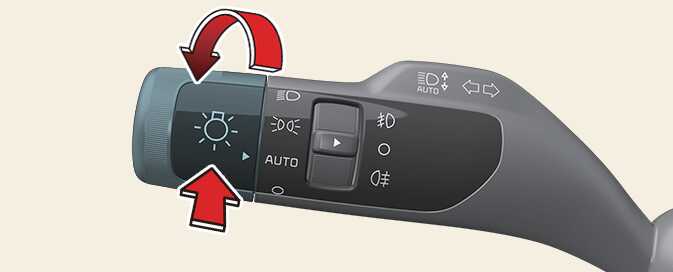

Figure 1. Type A/B
ONQ5041279L
ONQ5EP041279R

High Beam Assist is a function that automatically adjusts the headlamp range (switches between high beam and low beam) depending on the brightness of detected vehicles and certain road conditions.

Detecting sensor

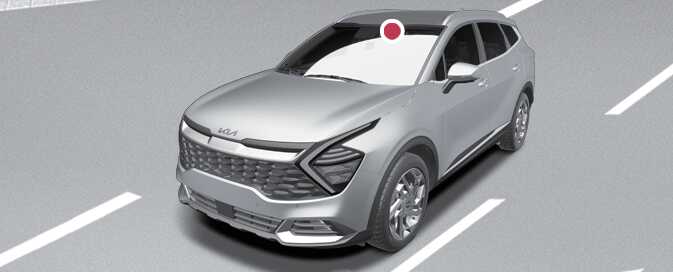

Figure 2. Front view camera
ONQ5051040L

The front view camera is used as a detecting sensor to detect ambient light and brightness while driving. Refer to the picture above for the detailed location of the detecting sensor.

CAUTION

Always keep the front view camera in good condition to maintain optimal performance of High Beam Assist.

For more details on the precautions of the front view camera, refer to Forward Collision-Avoidance Assist (FCA) (Front Camera Only) and Forward Collision-Avoidance Assist (FCA) (Sensor Fusion).
