Controlling wipers

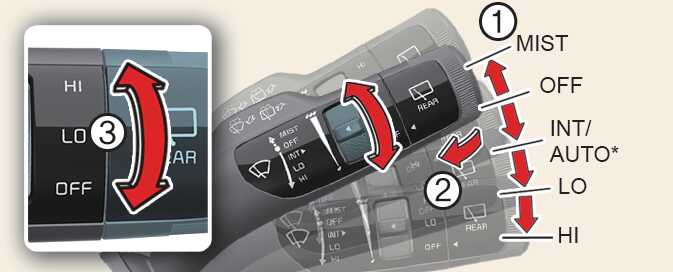

ONQ5031040L

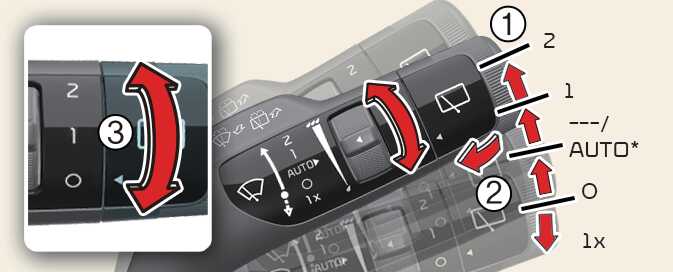

ONQ5032543L

Operation

  1. Front wiper speed control

    • MIST/1x: Single wipe

    • OFF/O: Off

    • INT: Intermittent wipe

      AUTO*: Auto control wipe

    • LO/1: Low wiper speed

    • HI/2: High wiper speed

  2. Wash with brief wipes

  3. Rear wiper speed control

    • HI/2: Continuous wipe

    • LO/1: Intermittent wipe

    • OFF/O: Off

: if equipped

NOTE

If there is heavy accumulation of snow or ice on the windshield, defrost the windshield for about 10 minutes, or until the snow and/or ice is removed before using the windshield wipers to ensure proper operation. If you do not remove the snow and/or ice before using the wiper and washer, it may damage the wiper and washer system.

TIP

If you operate the wipers while driving on snowy roads, the wipers may stop due to snow buildup on your windshield. This is normal and not a failure because it is one of our safety features to prevent vehicle accidents and wiper damage from overloading the wiper motor. If the wipers stop, remove snow accumulated on the top or bottom of windshield before using them.
