Map lamp

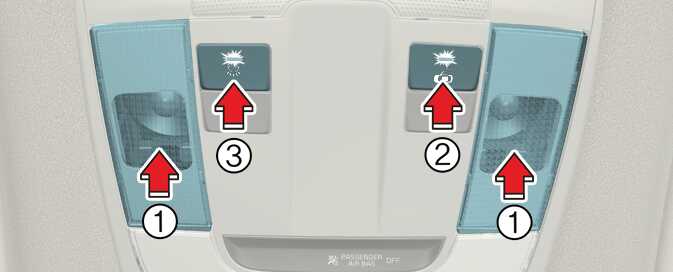

Figure 1. Type A
ONQ5H031011

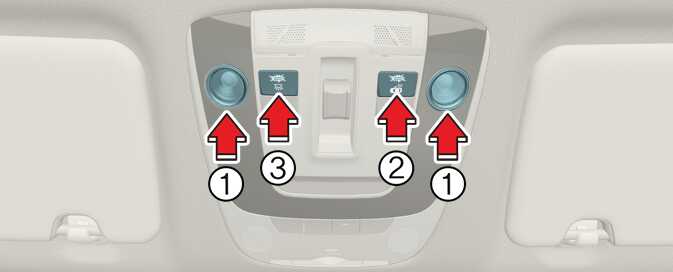

Figure 2. Type B
ONQ5031037

Operation

  • Press the lamp (1) to turn the map lamp ON.

  • (2): DOOR mode

  • (3): Front and rear room lamps on and off.

TIP

  • The map lamp and room lamp come on approximately 30 seconds.

    • When a door is opened.

    • When doors are unlocked with a smart key as long as the doors are not opened.

  • The map lamp and room lamp will stay on

    • If a door is opened with the ENGINE START/STOP button in the ACC or OFF position. (5 minutes)

    • If the door is opened with the ENGINE START/STOP button in the ON position. (continuously)

  • The map lamp and room lamp will go out

    • If the vehicle is changed to the ON position or all doors are locked. (immediately)

NOTE

The DOOR mode and ROOM mode can not be selected at a time.
