Defrosting/defogging windshield

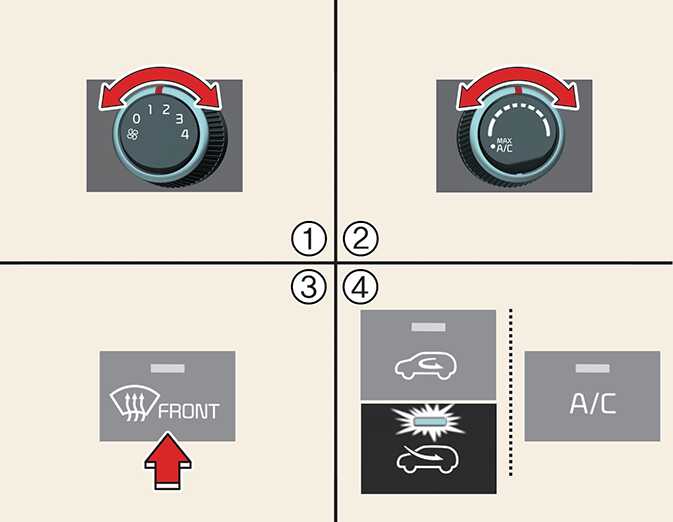

Figure 1. Manual type
ONQ5031327L_4

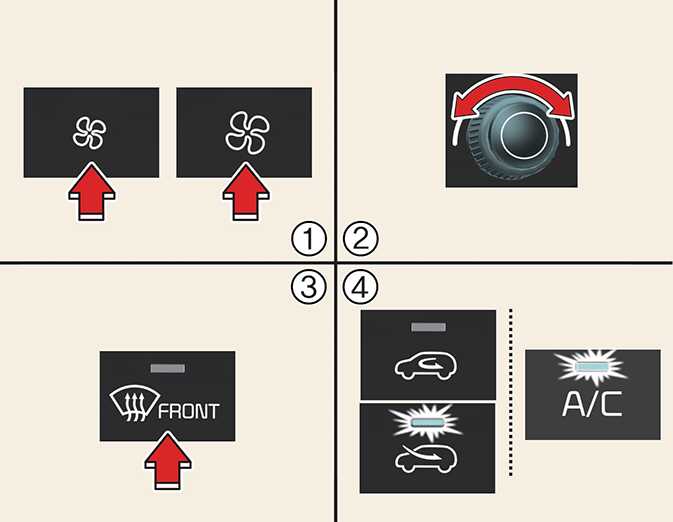

Figure 2. Automatic type A (button)
ONQ5031328L_4

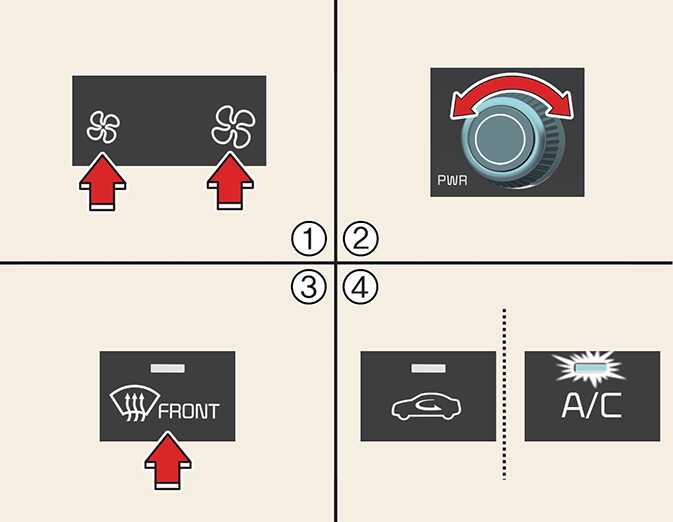

Figure 3. Automatic type B (control panel)
ONQ5031308L_4

Operation

  1. Set the fan speed to the desired position.

  2. Select desired temperature.

  3. Select ( ) or ( ).

  4. The outside (fresh) air and air conditioning will be selected automatically.

WARNING

Windshield heating

Do not use the or position during cooling operation in extremely humid weather. The difference between the temperature of the outside air and the windshield could cause the outer surface of the windshield to fog up, causing loss of visibility. In this case, set the mode selection to the position and fan speed control to the lower speed.
