Applying and releasing EPB manually

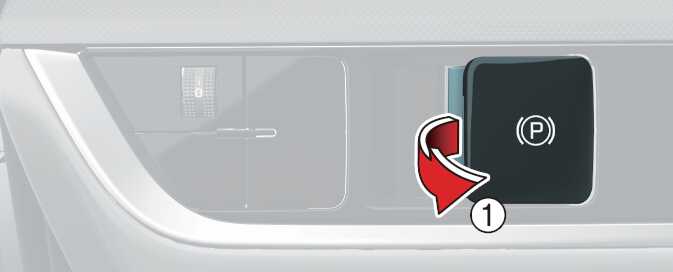

ONQ5043008L

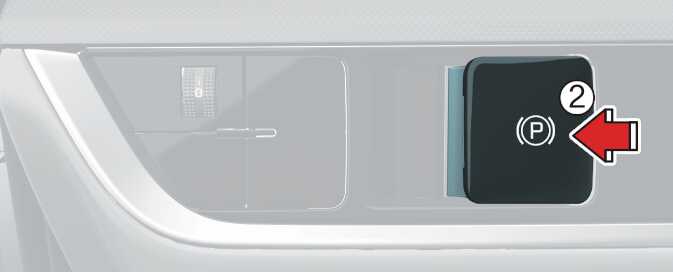

ONQ5043009L

Operation

  • Application

    • Depress the brake pedal and pull the EPB switch up(1) to apply the parking brake.

  • Release

    • Depress the brake pedal. Make sure the gear is in P and push the EPB switch(2) down to release the parking brake.

WARNING

  • Risk of accident and injury due to children left unattended in the vehicle. If you leave children unaccompanied in the vehicle, they may be able to set the vehicle in motion, for example by:

    • Releasing the parking brake.

    • Shifting the transmission out of P (Park) position.

    • Starting the engine. In addition, they may operate vehicle equipment.

  • Never leave children and animals unattended in the vehicle.

  • When leaving the vehicle, always take the smart key with you and lock the vehicle.

NOTE

  • On a steep incline or when pulling a trailer, if the vehicle does not remain at a standstill, do as follows:

    • Apply the EPB.

    • Pull up the EPB switch for more than 3 seconds.

  • A click or electric brake motor whine sound may be heard while operating or releasing the EPB. These conditions are normal and indicate that the EPB is functioning properly.
