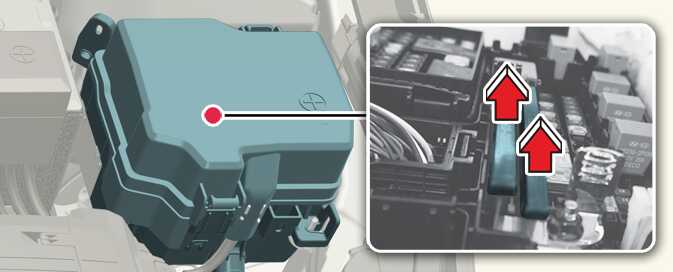

Engine compartment fuse panel

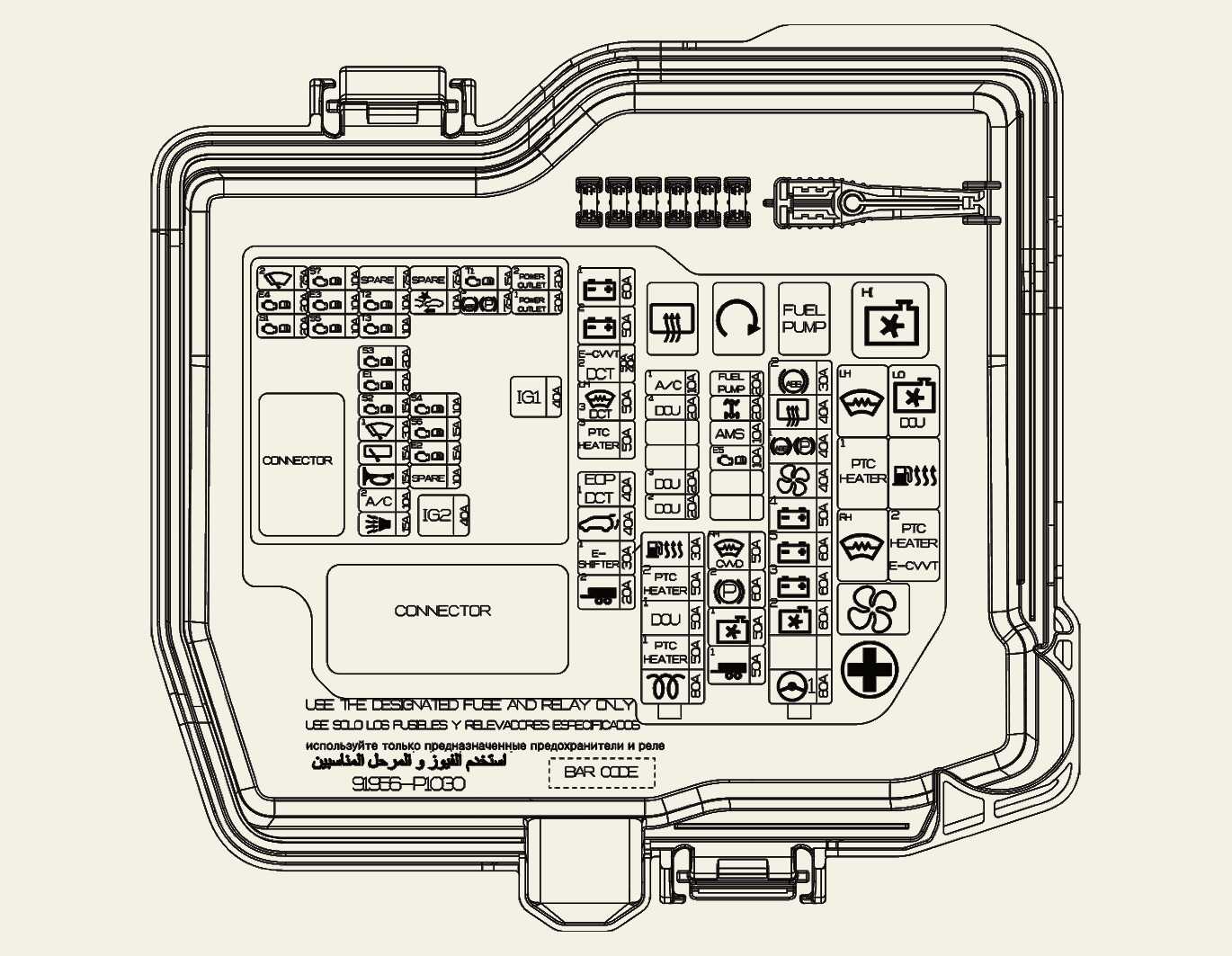

Engine Room Junction Block
|
Fuse Name |
Symbol |
Fuse Rating |
Circuit Protected |
|
|---|---|---|---|---|
|
MULTI FUSE-1 |
Motor Driven Power Steering *1 |
 |
80A |
Motor Driven Power Steering Unit |
|
COOLING FAN2 |
 |
60A |
Cooling Fan Controller |
|
|
B+3 |
 |
60A |
ICU Junction Block (Fuse - S/HEATER (DRV/PASS), P/SEAT(PASS), SUNROOF2, SUNROOF1, P/SEAT DRV, AMP, P/WINDOW SAFETY RH, Power Window Main Relay) |
|
|
B+5 |
 |
60A |
PCB Block (Fuse - IG2, IG1, HORN, A/CON2, B/ALARM HORN, ECU2, Engine Control Relay, Wiper Main Relay) |
|
|
B+4 |
 |
50A |
ICU Junction Block (Fuse - DOOR LOCK, S/HEATER (DRV/PASS), AIRBAG2, MODULE9, IBU2, P/WINDOW SAFETY LH, E-SHIFTER2, TAILGATE, BRAKE SWITCH, Long Term Load Latch Relay) |
|
|
BLOWER |
 |
40A |
Blower Relay |
|
|
ABS1/EPB1 |
 |
40A |
ESP (Electronic Stability Program Control Module |
|
|
REAR HEATED |
 |
40A |
Rear Heated Relay |
|
|
ABS2 |
 |
30A |
ESP (Electronic Stability Program Control Module |
|
|
GLOW |
 |
80A |
GLOW Unit (Diesel) |
|
|
PTC HEATER1 |
 |
50A |
Positive Temperature Coefficient Heater1 Relay (Diesel) |
|
|
DCU1 |
 |
50A |
Dosing Control Unit Relay (Diesel) |
|
|
PTC HEATER2 |
 |
50A |
Positive Temperature Coefficient Heater2 Relay (Diesel) |
|
|
FUEL FILTER HTR |
 |
30A |
Diesel Fuel Filter Relay (Diesel) |
|
|
FUSE |
TRAILER1 |
 |
50A |
Trailer Connector |
|
COOLING FAN1 |
 |
50A |
Cooling Fan Relay High |
|
|
EPB2 |
 |
60A |
ESP (Electronic Stability Program Control Module |
|
|
W/S HEATED GLASSRH / CVVD |
 |
50A |
Windshield Heated Relay RH, Continuous Variable Valve Duration Actuator (Smartstream G1.6 T-GDi) |
|
|
ECU5 |
 |
10A |
ECM (Engine Control Module) |
|
|
AMS |
 |
10A |
Battery Sensor |
|
|
4WD |
 |
20A |
AWD ECM (Engine Control Module) |
|
|
FUEL PUMP |
 |
20A |
Fuel Pump Relay |
|
|
Air ConditionerON1 |
 |
10A |
Blower Relay, Air Conditioner Control Module |
|
|
TRAILER2 |
 |
20A |
Trailer Connector |
|
|
E-SHIFTER1 |
 |
30A |
SCU (System Control Unit) |
|
|
TAILGATE |
 |
40A |
Power Tailgate Unit |
|
|
EOP |
 |
40A |
Not Used |
|
|
PTC HEATER3 |
 |
50A |
Fuel Filter Heating Relay |
|
|
W/S HEATED GLASSLH / DCT3 |
 |
50A |
Windshield Heated Relay LH, Double Clutch Transmission (Smartstream G1.6 T-GDi) |
|
|
E-CVVT/DCT2 |
 |
E-CVVT (50A)/DCT2 (40A) |
Double Clutch Transmission (Smartstream G1.6 T-GDi), E-CVVT Relay (Smartstream G2.5 GDi) |
|
|
B+2 |
 |
50A |
ICU Junction Block (IPS06/IPS07/IPS08/IPS09/IPS10/IPS11) |
|
|
B+1 |
 |
60A |
ICU Junction Block (IPS01/IPS02/IPS03/IPS04/IPS05) |
|
|
DCT1 |
 |
40A |
Double Clutch Transmission Module |
|
|
E-SHIFTER1 |
 |
30A |
SCU (Shift by wire Control Unit) |
|
|
DCU2 |
 |
20A |
Dosing Control unit (Diesel) |
|
|
DCU3 |
 |
20A |
Dosing Control unit (Diesel) |
|
|
DCU4 |
 |
20A |
Dosing Control unit (Diesel) |
|
PCB Block
|
Fuse Name |
Symbol |
Fuse Rating |
Circuit Protected |
|---|---|---|---|
|
IG2 |
 |
40A |
IG2 Relay |
|
IG1 |
 |
40A |
IG1 Relay, ACC Relay |
|
FR WIPER2 |
 |
7.5A |
Front Wiper (Low) Relay, ECM (Engine Control Module), IBU (Integrated Body Control Unit) |
|
ECU4 |
 |
20A |
Power train Control Module |
|
SENSOR1 |
 |
20A |
Ignition Coil #1~#4 |
|
SENSOR7 |
 |
10A |
GLOW Unit (Diesel) |
|
ECU3 |
 |
10A |
Power train Control Module |
|
SENSOR5 |
 |
10A |
Fuel Pump Relay |
|
TCU2 |
 |
10A |
Transmission Control Module |
|
TCU3 |
 |
10A |
Transaxle Range Switch |
|
SENSOR3 |
 |
20A |
ECM (Engine Control Module) |
|
ECU1 |
 |
20A |
Power train Control Module |
|
SENSOR2 |
 |
15A |
Oxygen Sensor (UP/DOWN) |
|
FR WIPER1 |
 |
30A |
Wiper Main Relay, Front Wiper (Low) Relay |
|
RR WIPER |
 |
15A |
Wiper Main Relay, ICU Junction Block (Rear Wiper Relay) |
|
HORN |
 |
15A |
Horn Relay |
|
Air ConditionerON2 |
 |
10A |
Air Conditioner Comp Relay |
|
B/ALARM HORN |
 |
15A |
Burglar Alarm Horn Relay |
|
FCA |
 |
10A |
Front Radar |
|
SENSOR4 |
 |
10A |
[Smartstream G2.0] Oil Control Valve #1/#2 (Intake/Exhaust), Variable Oil Pump Solenoid, Variable Intake Solenoid Valve, Purge Control Solenoid Valve, Cooling Fan Controller, Air Conditioner Comp Relay, E/R Junction Block (Cooling Fan Relay High) [Smartstream G2.5 T-GDi] Oil Control Valve #2 (Exhaust), Purge Control Solenoid Valve, Variable Oil Pump Solenoid, Variable Intake Solenoid Valve, Cooling Fan Controller, Air Conditioner Comp Relay |
|
SENSOR6 |
 |
15A |
Injector #1 ~ #4 |
|
ECU2 |
 |
15A |
Power train Control Module |
|
TCU1 |
 |
15A |
Transmission Control Module |
|
ABS3/EPB3 |
 |
7.5A |
ESP (Electronic Stability Program (Electronic Stability Program) Control Module |
|
POWER OUTLET2 |
 |
20A |
Front Power Outlet |
|
POWER OUTLET1 |
 |
20A |
Luggage Power Outlet |
1: MDPS (Motor Driven Power Steering) is the same as EPS (Electric Power Steering).
Relay
Refer to the following table for the relay type.
|
Relay Name |
Symbol |
TYPE |
|---|---|---|
|
Rear Heated Relay |
 |
MICRO |
|
Start Relay |
 |
MICRO |
|
Fuel Pump Relay |
 |
MICRO |
|
Cooling Fan Relay High |
 |
MINI |
|
Windshield Heated Relay LH |
 |
MICRO |
|
Cooling Fan Relay low (Smartstream G2.0) DCU Relay (Smartstream D2.0) |
 |
MICRO |
|
PTC Heater Relay #1 |
 |
MICRO |
|
Fuel Filter Heating Relay |
 |
MICRO |
|
Windshield Heated Relay RH |
 |
MICRO |
|
PTC Heater Relay #2 (Diesel) E-CVVT Relay (Smartstream G2.5 GDi) |
 |
MICRO |
|
Blower Relay |
 |
MICRO |
