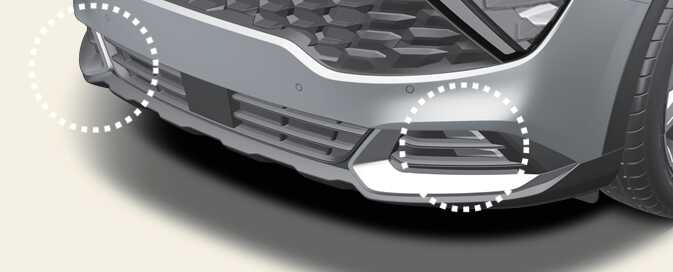

Replacing front fog lamp (Bulb type)

ONQ5061107L

Operation

  1. Turn off vehicle and disconnect the negative terminal from the battery.

  2. Remove the bumper.

  3. Loosen the light assembly retaining screws with a cross-tip screw driver.

  4. Disconnect the front fog lamp connector.

  5. Remove the socket from the assembly by turning the socket counterclockwise until the tabs on the socket align with the slots on the assembly.

  6. Insert a new bulb by inserting it into the socket and rotating it until it locks into place.

  7. Install the light assembly in the reverse order of removal.
