Malfunction with the SCR system
|
Upon detecting a malfunction |
Driving 50 km after detecting a malfunction |
|
|---|---|---|
|
Urea solution system failure (= no urea solution injection) |
 ONQ5061063L A: Incorrect urea detected |

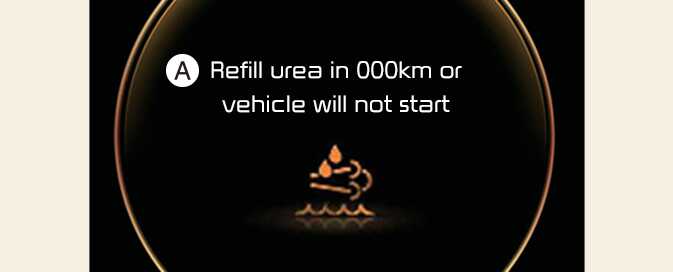

 ONQ5061051L0 A: Refill with correct urea in 000km or vehicle will not start |
|
Incorrect urea solution detected (= abnormal urea solution) |
 ONQ5061063L0 A: Incorrect urea detected |

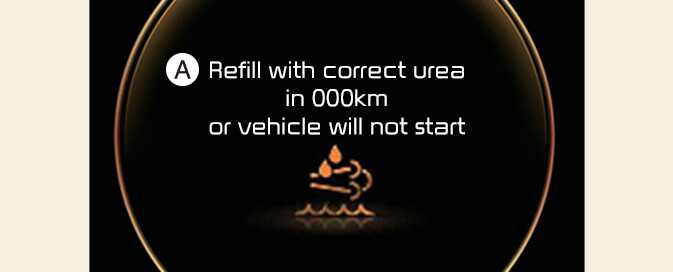

 ONQ5061064L A: Refill with correct urea in 000km or vehicle will not start |
|
Abnormal urea-solution consumption (= post treatment failure) |

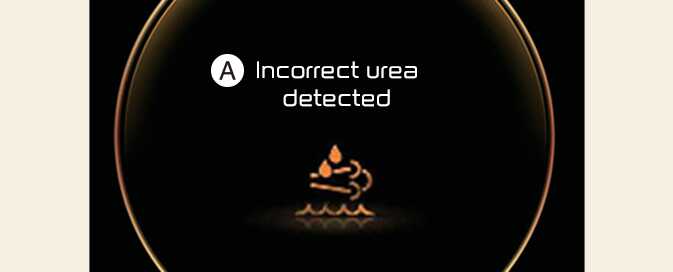

 ONQ5061063L1 A: Incorrect urea detected |
 ONQ5061064L0 A: Refill with correct urea in 000km or vehicle will not start |
SCR system has malfunction due to disconnected electrical components, incorrect urea solution and so on.
"xxx km (mile)" represents the remaining travel distance allowed, so do not continue driving to the limit of the remaining travel distance without fixing the source of the malfunction. Otherwise, the vehicle can't be restarted once the engine is turned off by the ENGINE START/STOP button. In this case, have your vehicle inspected by a professional workshop. Kia recommends to contact an authorized Kia dealer/service partner.
