Opening the bonnet

ONQ5035007R_4
ONQ5H034021

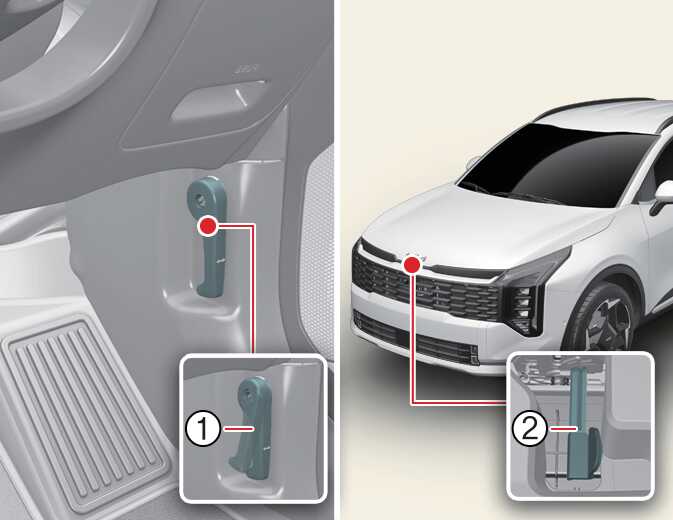

  1. Bonnet release lever

  2. Secondary bonnet release lever

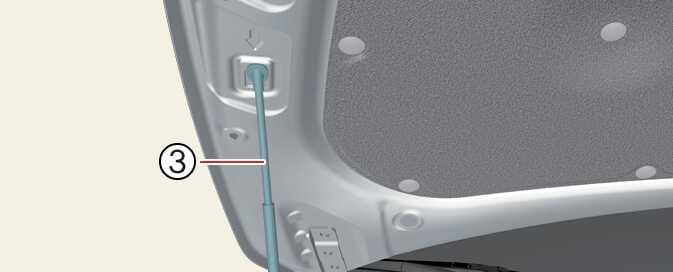

  3. Support rod

Operation

  1. Pull the bonnet release lever (1).

  2. Push the secondary bonnet release lever (2) to the left.

  3. Lift the bonnet upwards.

  4. Pull out the support rod (3).

  5. Hold the bonnet opened with the support rod.

WARNING

Open the bonnet after turning off the engine on a flat surface, shifting the gear to the P (Park) position for Automatic Transmission and to the 1st (First) gear or R (Reverse) for Manual Transmission and setting the parking brake.
