Distance to empty

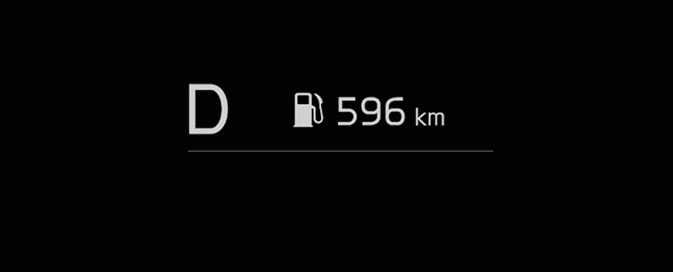

Figure 1. Type A
OMQ4033113

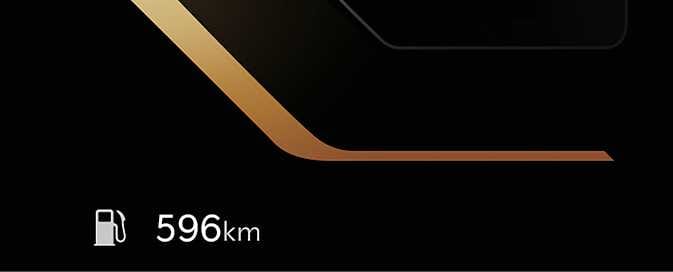

Figure 2. Type B
OMQ4033112

  • The distance to empty is the estimated distance the vehicle can be driven with the remaining fuel.

    • Distance range: 1 ~ 9,999 km or 1 ~ 9,999 mi.

  • If the estimated distance is below 1 km (1 mi.), the cluster will display "---" as distance to empty.

  • If the shift gear is not P (Park) or N (Neutral) during refuelling, the refuelling may not be recognised and the fuel amount and distance to empty may be displayed abnormally.

NOTE

  • If the vehicle is not on level ground or the battery power has been interrupted, the distance to empty function may not operate correctly.

  • The distance to empty may differ from the actual driving distance as it is an estimate of the available driving distance.

  • The cluster may not register additional fuel if less than 6 litres (1.6 gallons) of fuel are added to the vehicle.

  • The fuel economy and distance to empty may vary significantly based on driving conditions, driving habits, and condition of the vehicle.
