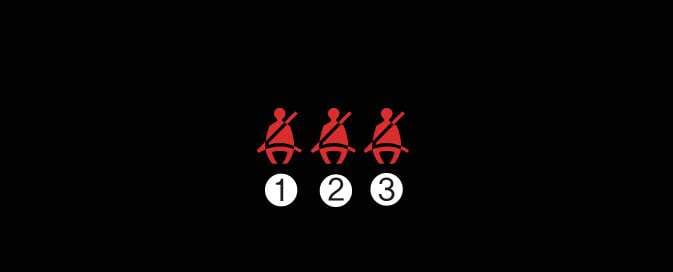

Rear passenger's seat belt warning lights: (if equipped)
OCV024001

  • Rear seat: (1) Driver's side, (2) Centre, (3) Passenger's side

Operating condition(s)

For rear left and right seat (for Australia and New Zealand)

  • When the vehicle is running

    • Rear passenger's seat belt warning light will illuminate for approximately 6 seconds.

  • When the seat belt is unfastened during driving speed under approximately 20 km/h (12 mph)

    • Rear passenger’s seat belt warning light will stay illuminated.

  • When the seat belt is unfastened during driving speed over approximately 20 km/h (12 mph)

    • Rear passenger's seat belt warning light will blink for approximately 35 seconds.

    • Rear passenger's seat belt warning chime will sound for approximately 35 seconds.

For rear centre seat (for Australia and New Zealand)

  • When the seat belt is unfastened during driving speed under approximately 20 km/h (12 mph)

    • Rear passenger's seat belt warning light will illuminate for approximately 70 seconds and then will turn off.

  • When the seat belt is unfastened during driving speed over approximately 20 km/h (12 mph)

    • Rear passenger's seat belt warning light will blink for approximately 35 seconds.

    • Rear passenger's seat belt warning chime will sound for approximately 35 seconds.

For all rear seats (except Australia and New Zealand)

  • When the vehicle is running

    • Rear passenger's seat belt warning light will illuminate for approximately 70 seconds.

  • When the seat belt is unfastened during driving speed under approximately 20 km/h (12 mph)

    • Rear passenger’s seat belt warning light will illuminate for approximately 70 seconds.

  • When the seat belt is unfastened during driving speed over approximately 20 km/h (12 mph)

    • Rear passenger's seat belt warning light will blink for approximately 35 seconds.

    • Rear passenger's seat belt warning chime will sound for approximately 35 seconds.

    *Rear passenger's seat belt warning light will not blink when the rear door is opened at speeds below 10 km/h (6 mph).

Non-operating condition(s)

  • When the rear door is opened or closed, and the vehicle speed is under 10 km/h (6 mph)

    • Seat belt warning light and the seat belt warning chime will not work even if the vehicle speed is over approximately 20 km/h (12 mph).

WARNING

Riding in an improper position adversely affects the front seat belt warning system. It is important for the driver to instruct the passenger to properly be seated as instructed in this manual.

NOTE

  • Although the front passenger seat is not occupied, the seat belt warning light will blink or appear for 6 seconds.

  • The front passenger's seat belt warning may operate when luggage is placed.
