Controlling heating and air conditioning automatically

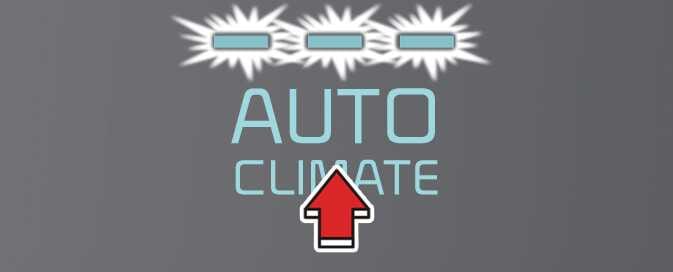

OCV041303

Operation

  1. Set the desired temperature.

  2. Press the AUTO button to control:

    • Mode

    • Fan speed

    • Air intake

    • Air conditioning

Level

Indicator

LCD Display

Air flow

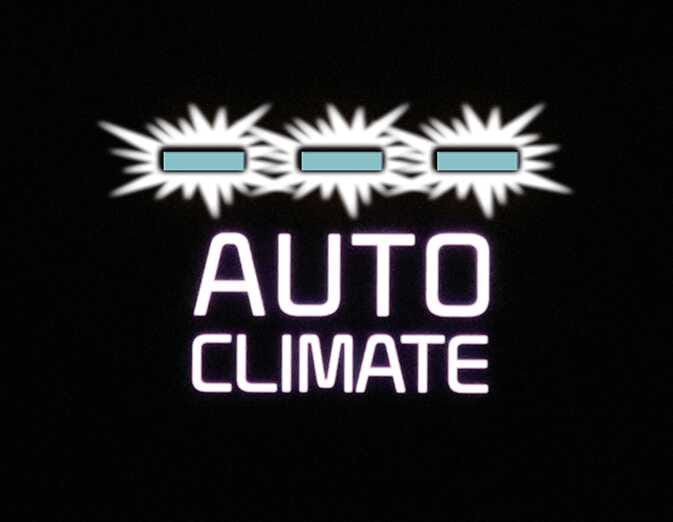

High

OGL3041306
OGL3041309

1~8

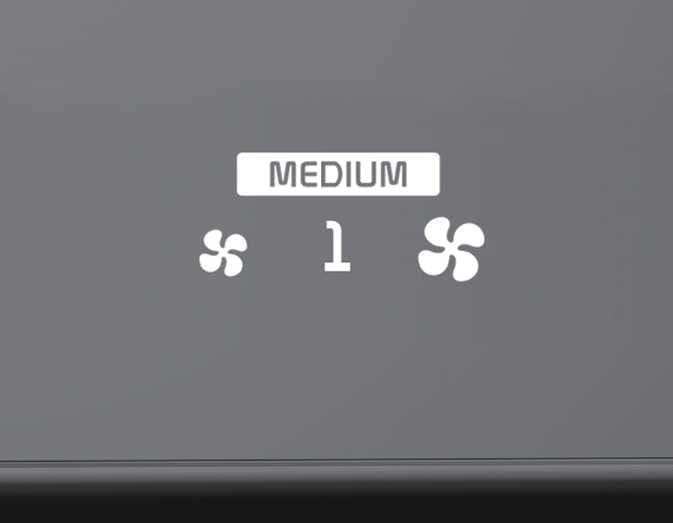

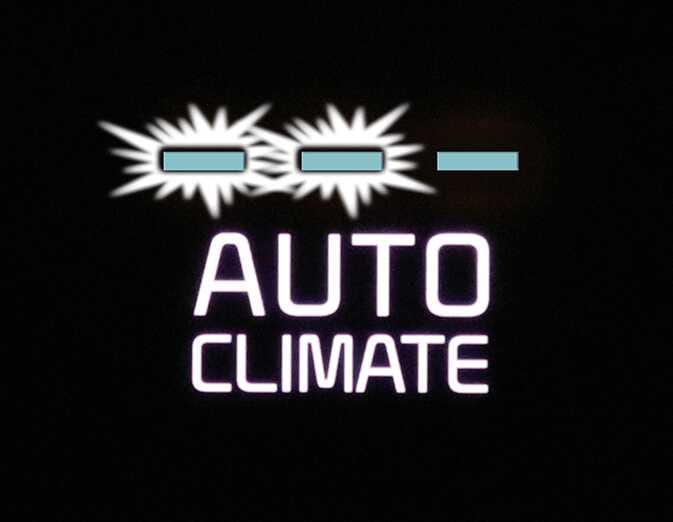

Medium

OGL3041305
OGL3041308

1~6

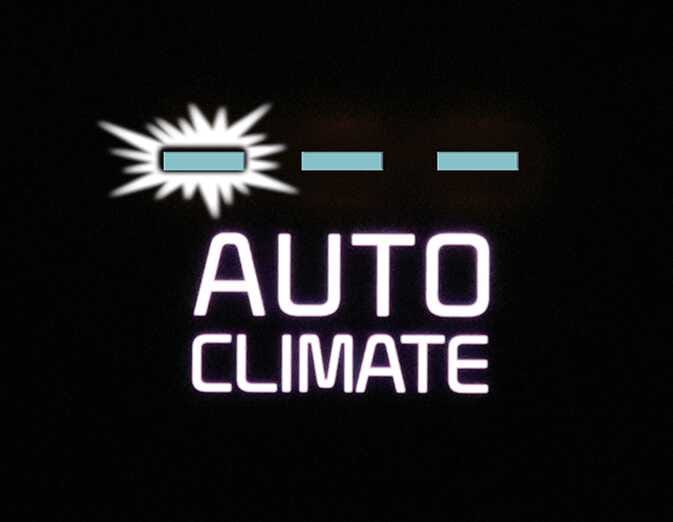

Low

OGL3041304
OGL3041307

1~4

NOTE
  • To turn the automatic operation off, select any button or switch of the following:

    • Temperature controlling knob

    • Mode selection button

    • Air conditioning button

    • Front windscreen defroster button (Press the button one more time to deselect the front windscreen defroster function. The AUTO sign will illuminate on the information display once again.)

    • Fan speed control button

    The selected function will be controlled manually whilst other functions operate automatically.

  • For your convenience and to improve the effectiveness of the climate control, use the AUTO button and set the temperature to 22 °C (72 °F).
