Defrosting/defogging windscreen

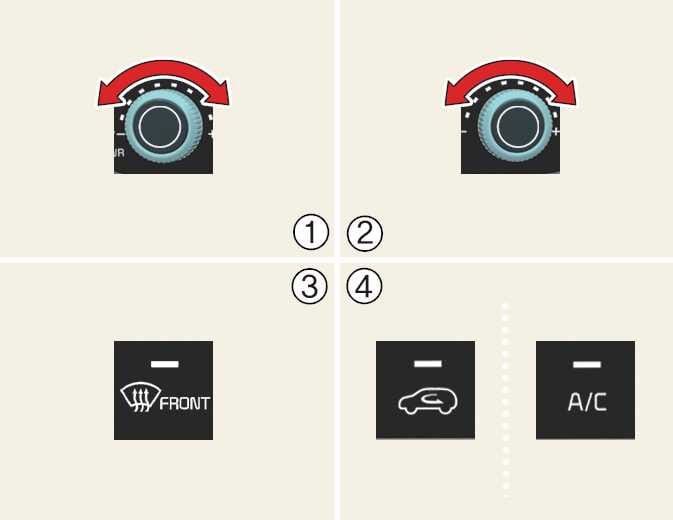

Figure 1. Manual type
ONQ5034306_4

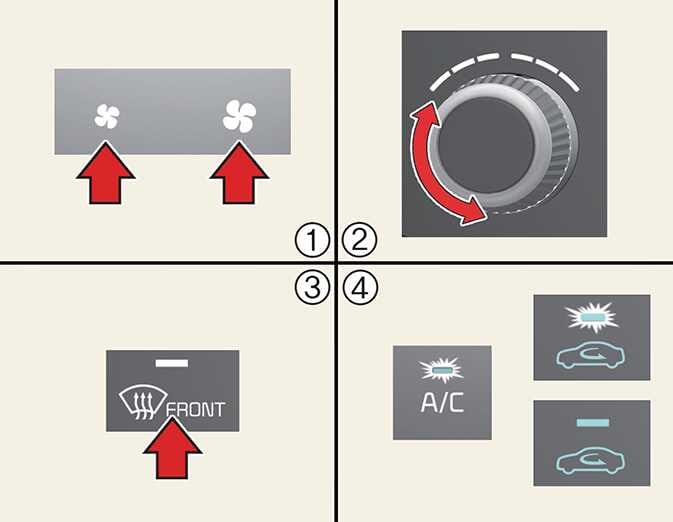

Figure 2. Automatic type
OCV041323_4

Operation

  1. Set the fan speed to the desired position.

  2. Select desired temperature.

  3. Select () or ().

  4. The outside (fresh) air and air conditioning will be selected automatically.

WARNING

Windscreen heating

Do not use the or position during cooling operation in extremely humid weather. The difference between the temperature of the outside air and the windscreen could cause the outer surface of the windscreen to fog up, causing loss of visibility. In this case, set the mode selection to the position and fan speed control to the lower speed.
