LCD display messages

Shift dial SBW type of AT messages

Message

Content

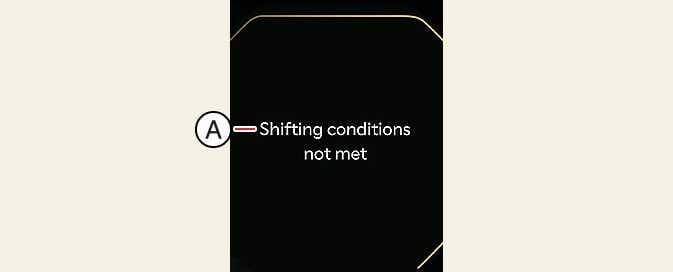

OGL3044016L

A: Shifting conditions not met

  • When driving speed is too fast to shift the gear.

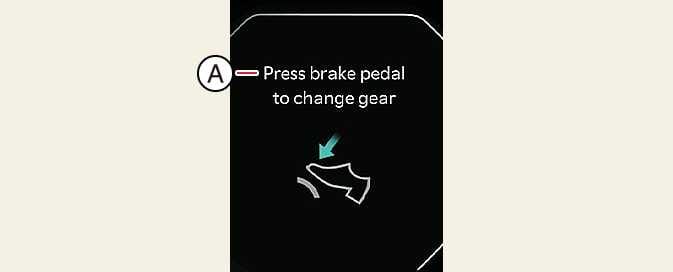

OGL3044017L

A: Press brake pedal to change gear

  • When the brake pedal is not depressed whilst shifting the gear.

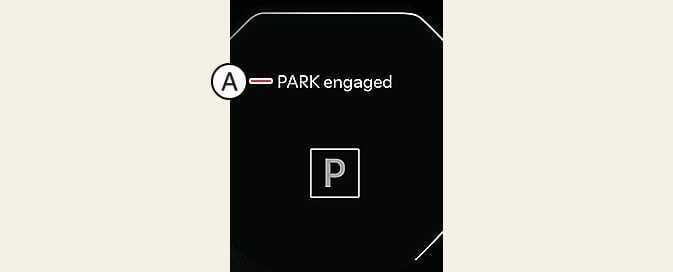

OGL3044018L

A: PARK engaged

  • When the gear is shifted to P (Park) whilst the vehicle is moving.

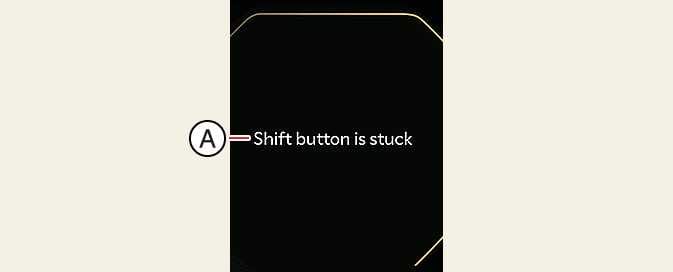

OGL3044019L

A: Shift button is stuck

  • When P (Park) is selected again or the gear is overheated.

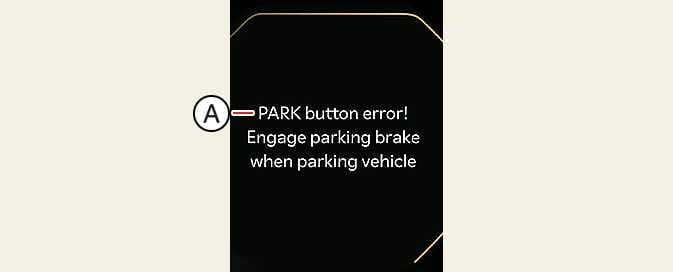

OGL3044020L

A: PARK button error! Engage parking brake when parking vehicle

  • When there is a problem with function engaging P (Park) position.

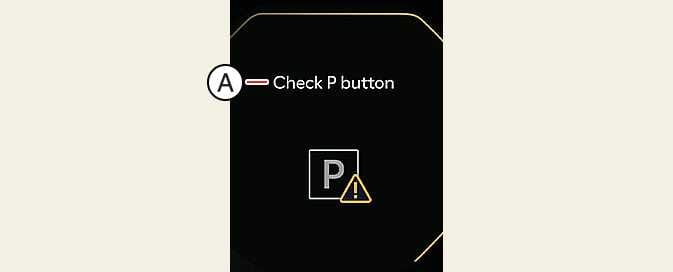

OGL3044021L

A: Check P button

  • When there is a problem with there is problem with the P (Park) button.

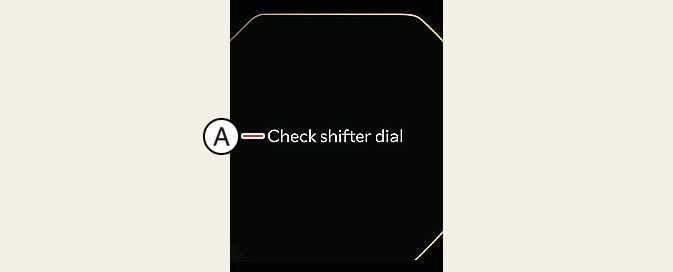

OGL3034146L

A: Check shifter dial

  • When there is problem with the shift dial.

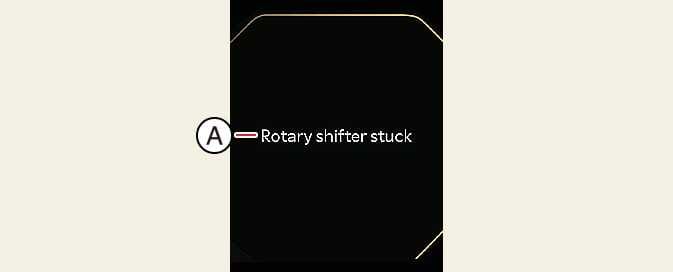

OGL3034147L

A: Rotary shifter stuck

  • When the shift dial is continuously stuck or there is problem with the shift dial.
WARNING

To reduce the risk of serious injury or death:

  • Always check the surrounding areas near your vehicle for people, especially children, before shifting a vehicle into D (Drive) or R (Reverse).

  • Before leaving the driver's seat, always make sure the gear is in the P (Park) position; then set the parking brake, and place the ignition switch in the LOCK/OFF position. Unexpected and sudden vehicle movement can occur if these precautions are not followed.

  • Always fully depress the brake pedal before and whilst shifting out of the P (Park) into another position to avoid inadvertent motion of the vehicle which could injure persons in or around the vehicle.

  • After the vehicle has stopped, always make sure the gear is in P (Park), apply the parking brake, and turn the vehicle off.

  • Do not use the P (Park) position in place of the parking brake. Always make sure the gear is in P (Park) position and set the parking brake fully.

  • Never leave a child unattended in a vehicle.

  • Do not drive with the gear in N (Neutral). The engine brake will not work and lead to an accident.

  • To avoid damage to your transmission, do not try to accelerate with the shift lever in R (Reverse) or any forward gear position with the brake engaged.

  • Do not use the engine brake (shifting from a high gear to lower gear) rapidly on slippery roads. The vehicle may slip causing an accident.

  • Shifting into P (Park) whilst the vehicle is in motion will cause the drive wheels to lock which will cause you to lose control of the vehicle.

  • When parking on an incline, block the wheels to prevent the vehicle from rolling down.

  • For safety, always engage the parking brake with the gear in the P (Park) position except for the case of emergency parking.

CAUTION

  • Always come to a complete stop before shifting into or out of R (Reverse); you may damage the transmission if you shift into R (Reverse) whilst the vehicle is in motion, except as explained in Rocking the vehicle.

  • Always park the vehicle in P (Park) for safety and engage the parking brake. If left in N (Neutral), the vehicle may move and cause serious damage and injury.

  • After the vehicle has been turned off, the electronic parking brake cannot be disengaged.

  • For EPB (Electronic Parking Brake) equipped vehicles with AUTO HOLD function used whilst driving, if the vehicle is in OFF position, the electronic parking brake will be engaged automatically. Therefore, AUTO HOLD function should be turned off before the vehicle is in OFF position.

  • Do not shift from N (Neutral) or P (Park) into D (Drive), or R (Reverse) when the engine is above idle speed. The transmission may be damaged if you shift into P (Park) whilst the vehicle is in motion.

NOTE

Manual mode

  • For shift lever type

    • The driver must execute upshifts in accordance with road conditions, taking care to keep the engine speed below the red zone.

    • Downshifts are made automatically when the vehicle slows down. When the vehicle stops, 1st gear is automatically selected.

    • When the engine rpm approaches the red zone shift points are varied to upshift automatically.

    • To maintain the required levels of vehicle performance and safety, the system may not execute certain gearshifts when the gear is operated.

    • When driving on a slippery road, shift into the 2nd gear which is better for smooth driving on a slippery road.

    • Always come to a complete stop before shifting into D (Drive) or R (Reverse).

    • Do not put the shift lever in N (Neutral) whilst driving.

    • The driver must execute upshifts in accordance with road conditions, taking care to keep the engine speed below the red zone.

    • Only the 7 forward gears can be selected. To reverse or park the vehicle, move the gear to the R (Reverse) or P (Park) position as required.

    • Downshifts are made automatically when the vehicle slows down. When the vehicle stops, 1st gear is automatically selected.

    • The fuel efficiency may decrease.

    • If the driver presses the lever to + (Up) or - (Down) position, the transmission may not make the requested gear change if the next gear is outside of the allowable engine rpm range.
