Automatic climate control system

The automatic climate control system uses cooling and heating to help maintain a pleasant environment inside the vehicle.

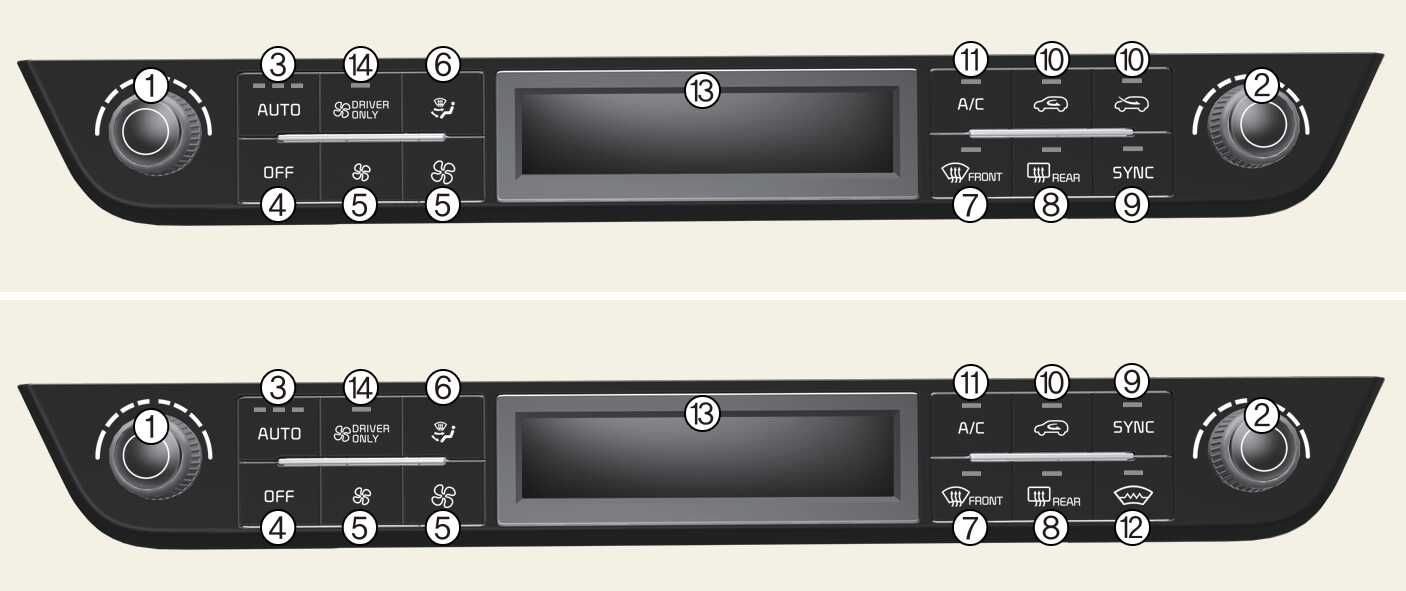

Figure 1. Type A (button)
ONQ5P041300N_2

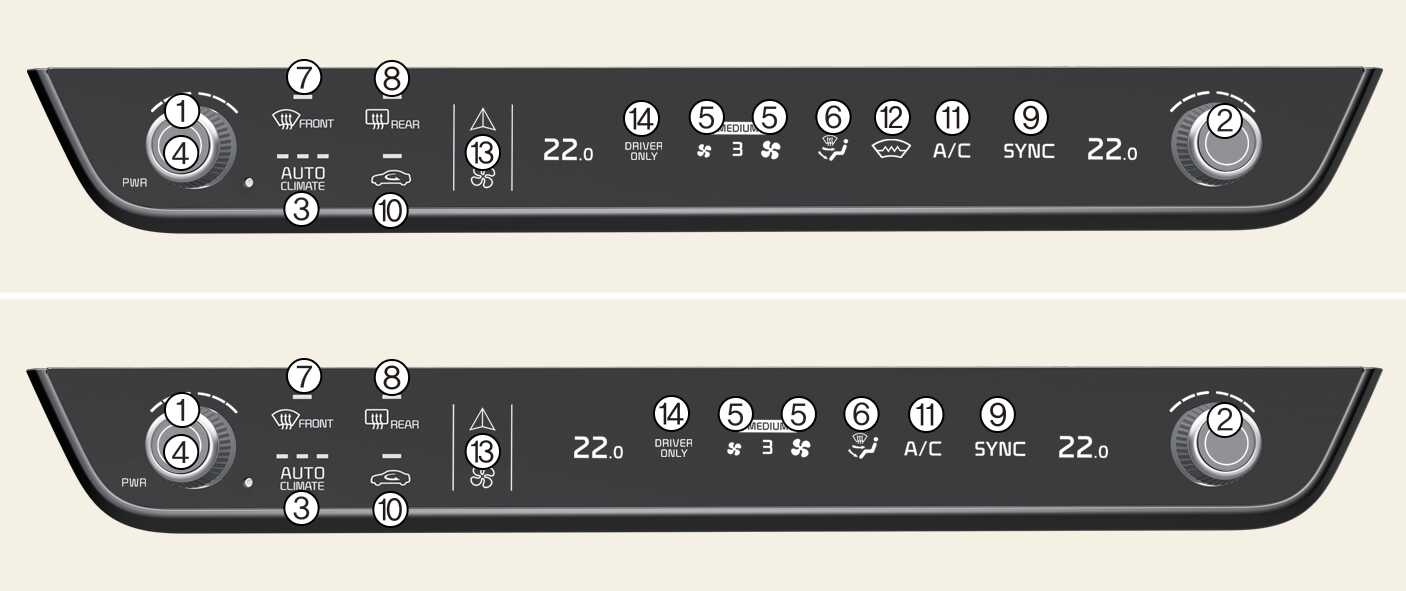

Figure 2. Type B (control panel)
ONQ5P041301N_2

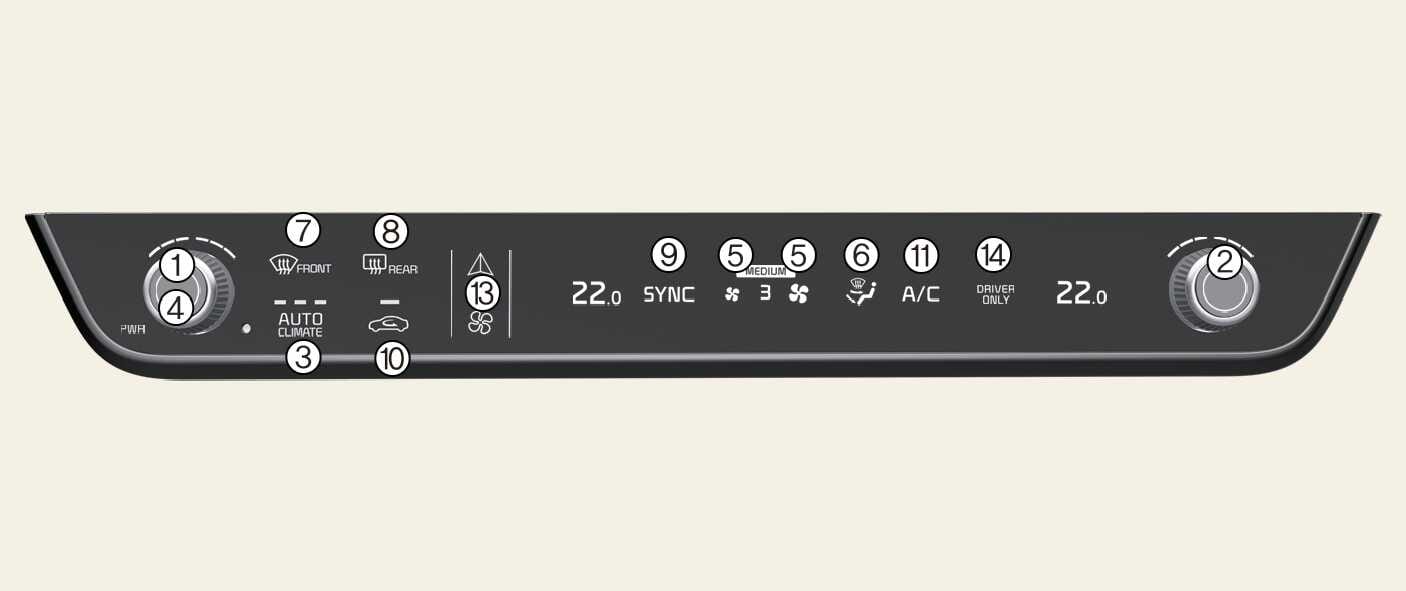

ONQ5P041306N

  1. Driver's temperature control knob

  2. Passenger's temperature control knob

  3. AUTO (automatic control) button

  4. OFF button

  5. Fan speed control button

  6. Mode selection button

  7. Front windshield defroster button

  8. Rear window defroster button

  9. SYNC button

  10. Air intake/outtake control button

  11. Air conditioning (A/C) button

  12. Front glass heater (if equipped)

  13. Infotainment/climate control mode switching button

  14. Driver's side only button

NOTE

Operating the blower when the ignition switch is in the ON position could cause the battery to discharge. Operate the blower when the engine is running.
