Engine compartment

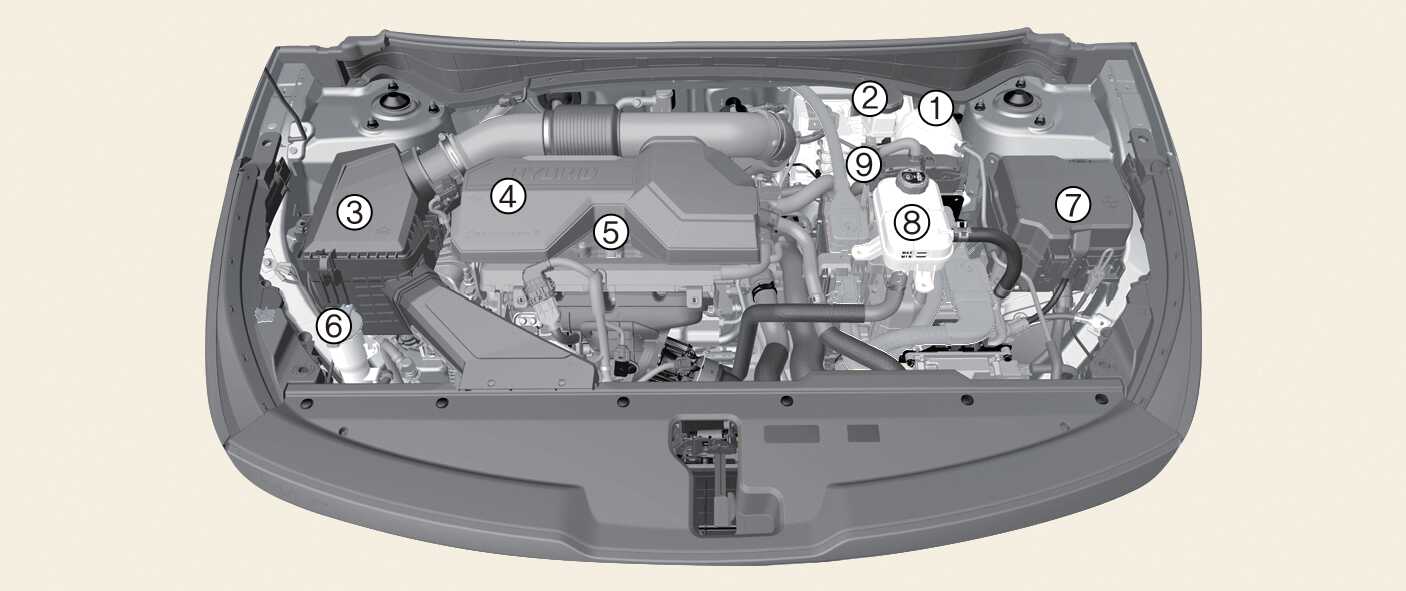

Figure 1. Smartstream G1.6 T-GDi HEV
ONQ5EP061031L0

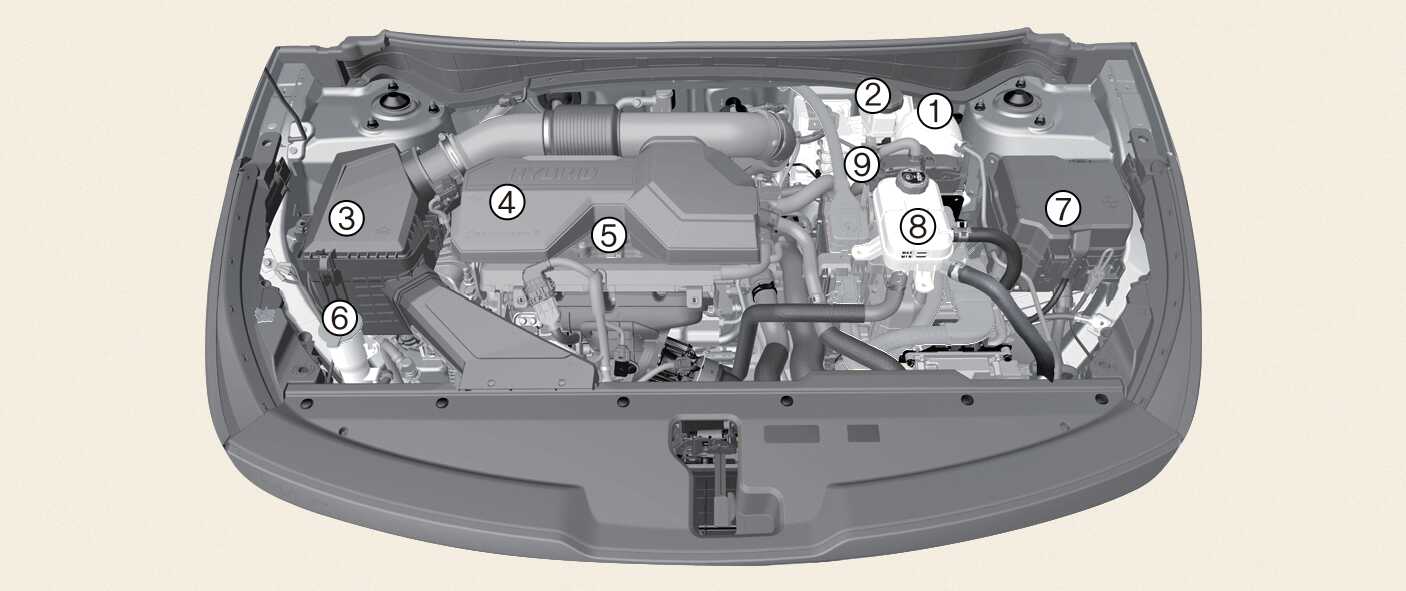

Figure 2. Smartstream G1.6 T-GDi PHEV
ONQ5EP061035L0

The actual engine room in the vehicle may differ from the illustration.

  1. Engine coolant reservoir Coolant

  2. Brake fluid reservoir Brake fluid

  3. Air cleaner Air cleaner filter

  4. Engine oil filler cap Engine oil

  5. Engine oil dipstick Engine oil

  6. Windshield washer fluid reservoir Washer fluid

  7. Fuse box Fuses

  8. Inverter coolant reservoir Checking the inverter coolant level (HEV)

  9. Electric Control Unit (ECU) Emergency starting
