Blind-Spot View Monitor (BVM): (if equipped)

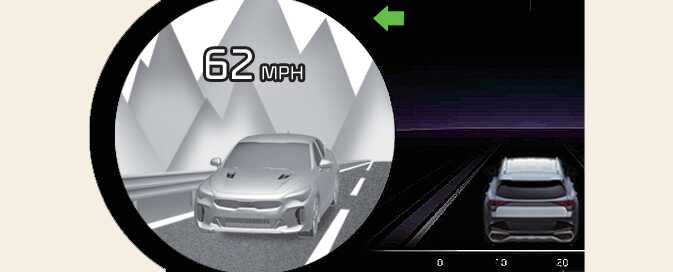

Figure 1. Left side
ONQ5041164N

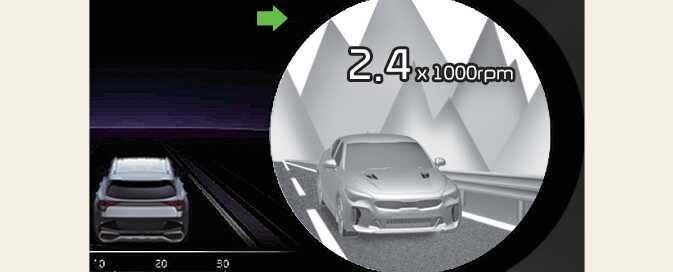

Figure 2. Right side
ONQ5P051040N

Blind-Spot View Monitor displays the rear blind spot area of the vehicle in the cluster when the turn signal is turned on to help safely change lanes.

Detecting sensor

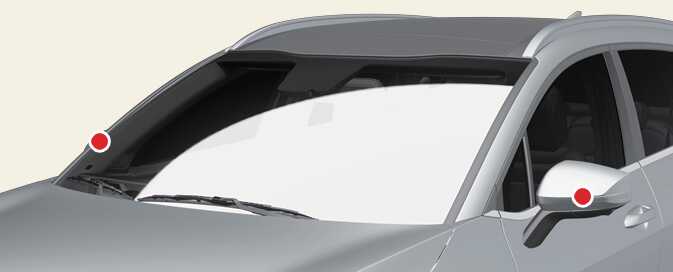

Figure 3. SVM-side view camera
ONQ5041052N

(camera located at bottom of the mirror)

Refer to the picture above for the detailed location of the detecting sensors.
