Engine compartment

Figure 1. Smartstream G1.6 T-GDi HEV
ONQ5H074039

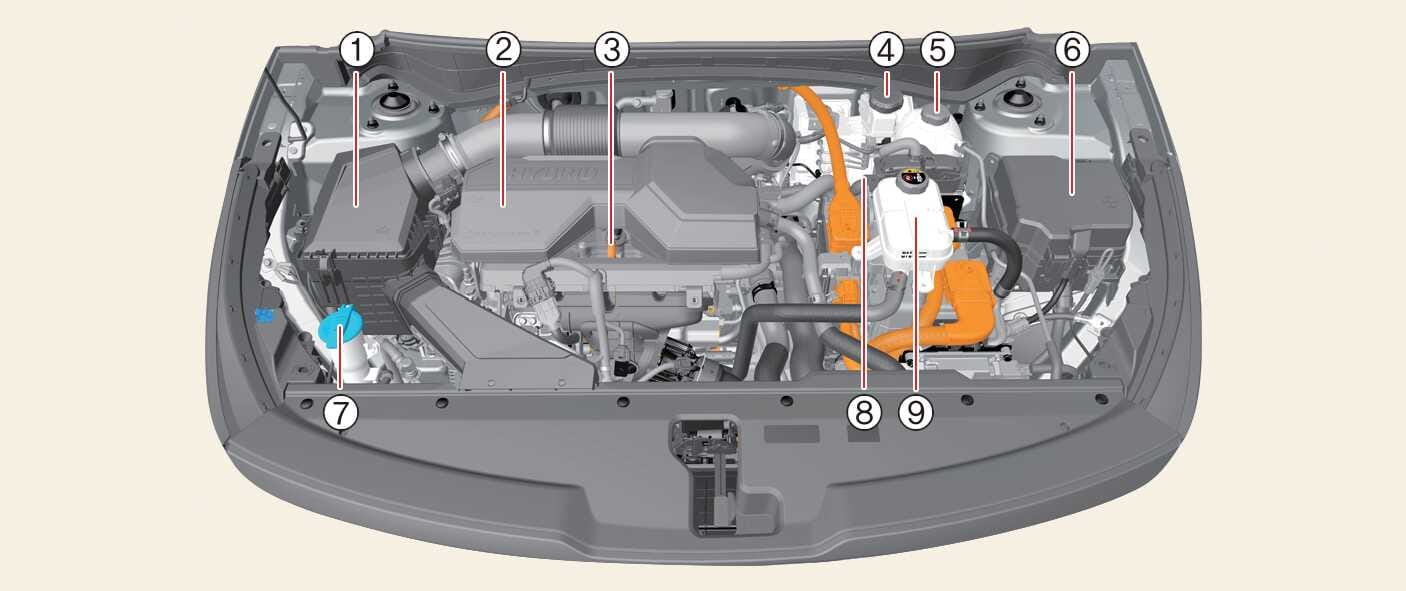

Figure 2. Smartstream G1.6 T-GDi PHEV
ONQ5P075001N

The actual engine compartment in your Kia may differ from the illustration.

  1. Air cleaner Air cleaner filter

  2. Engine oil filler cap Engine oil

  3. Engine oil dipstick Engine oil

  4. Brake fluid reservoir Brake fluid

  5. Engine coolant reservoir Coolant

  6. Fuse box Fuses

  7. Windshield washer fluid reservoir Washer fluid

  8. Electric Control Unit (ECU) Before jump starting (for hybrid vehicle)

  9. Inverter coolant reservoir Checking the inverter coolant level (HEV)
