Instrument cluster

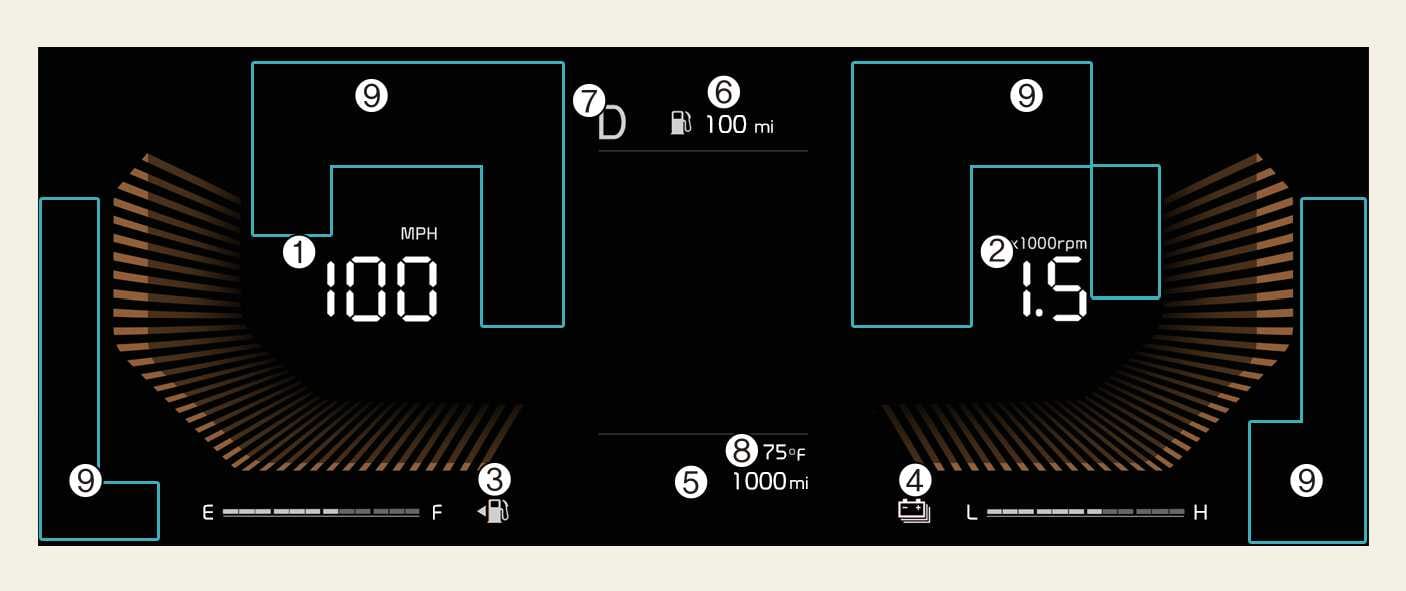

Figure 1. Type A
OMQ4PH034100N

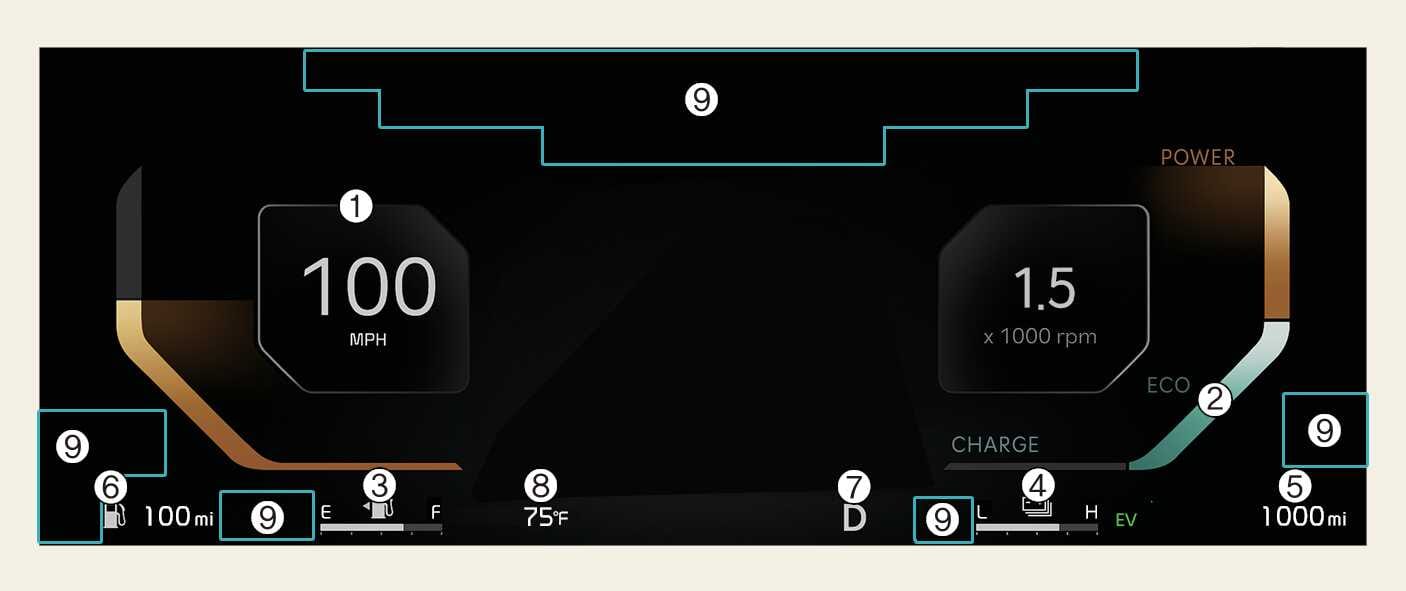

Figure 2. Type B
OKA4H034138N

The actual cluster in the vehicle may differ from the illustration.

  1. Speedometer

  2. Tachometer/Power gauge

  3. Fuel gauge

  4. Hybrid battery SOC gauge

  5. Odometer

  6. Distance to empty

  7. Transmission shift indicator

  8. Outside temperature gauge

  9. Warning and indicator lights
