Precautions for charging AC and Portable charger

1. After opening the charging door, check the charging voltage and current at the middle of the warning label.

2. After checking charging voltage and current, proceed the charging step.

3. Risk of failure, fire, injury, etc. expected when using the charging connector with unmatched charging voltage or current.

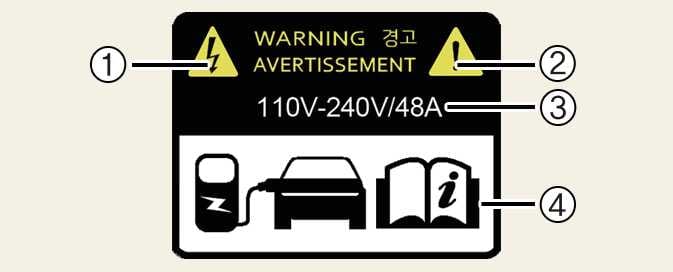

Electric charging label

OMVA084002

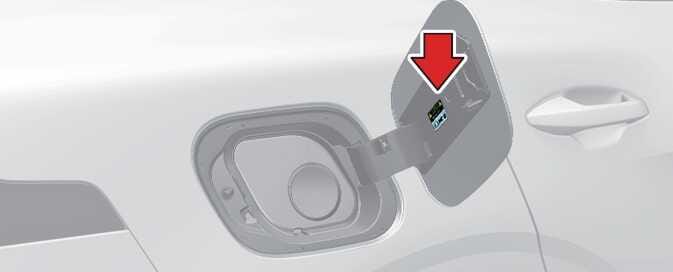

The electric charging label is attached on the charging door.

1 ~ 2: Warning for high voltage

3: Charging voltage and current

4: Identifier for charging door.
