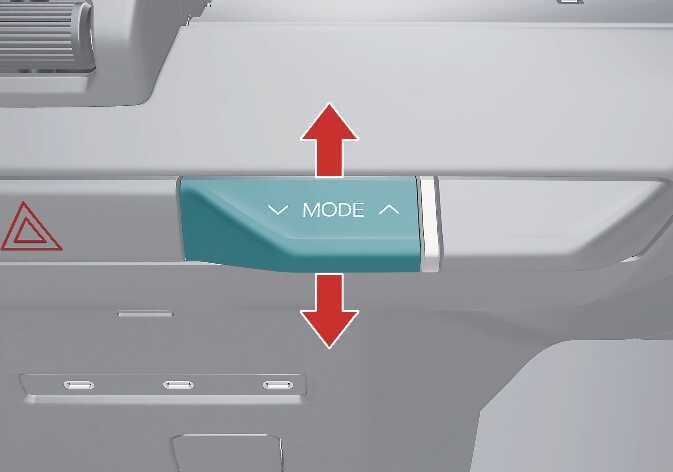

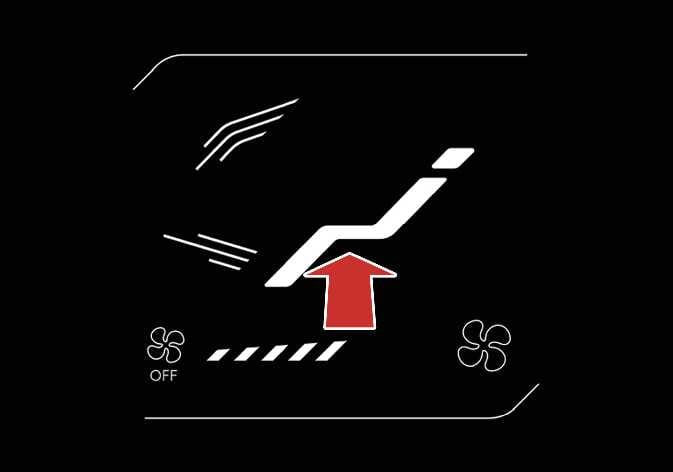

The mode selection lever/icon controls the direction of airflow through the ventilation system.

Face-Level (2, 4)

Air flow is directed toward the upper body and face. You can control the direction of the airflow from each vent.

Bi-Level (2, 3, 4)

Air flow is directed toward the upper body and face and the floor.

Floor-Level (1, 3, 4)

Most of the airflow is directed to the floor, and a small amount is directed to the windshield, side window defrosters, and side air vents.

Floor/Defrost-Level (1, 3, 4)

Most of the airflow is directed to the floor and windshield, and a small amount is directed to the side window defrosters and side air vents.

Defrost-Level (1, 4)

Most of the air flow is directed to the windshield, and a small amount is directed to the side window defrosters and side air vents.

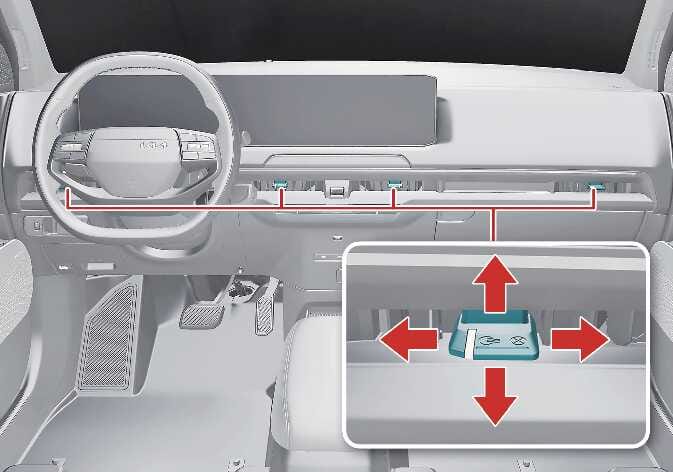

Instrument panel vents

N_QVe27_C08_018_1_E

N_QVe27_C08_019_E

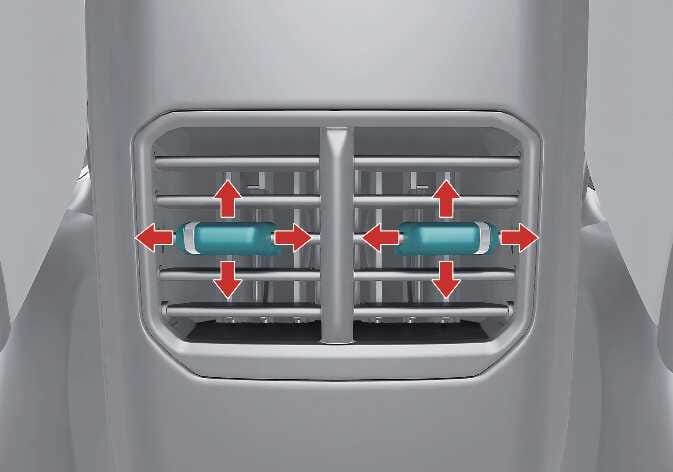

You can adjust the direction of a vent’s airflow using the vent control lever as shown.
