Cup holder

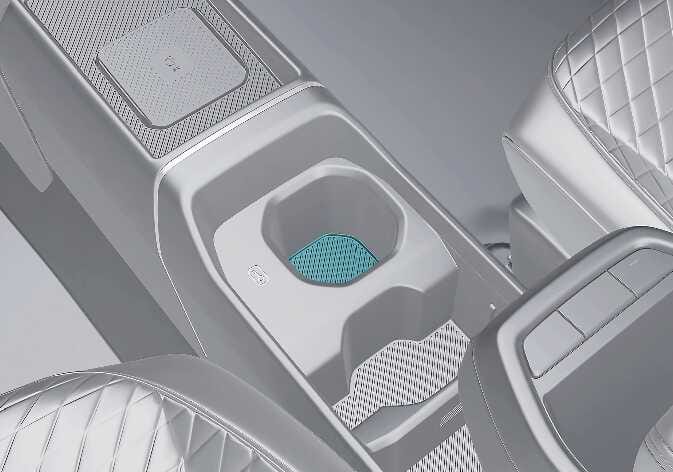

Figure 1. Front
N_QVe27_C08_035_E

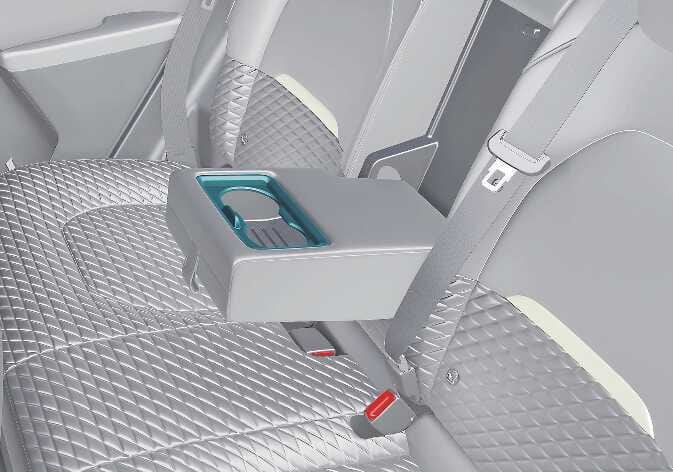

Figure 2. Rear (if equipped)
N_QVe27_C08_036_E

You may place cups or small beverage cans in the cup holders.

WARNING

Hot Liquids

Do not place uncovered cups with hot liquid in the cup holders while the vehicle is in motion. If the hot liquid spills, you could be burned. A driver who is burned could lose control of the vehicle.

WARNING

Keep cans or bottles out of direct sunlight, and do not put them in a hot vehicle. They could explode.

NOTE

  • To prevent spillage, keep your drinks sealed while driving. If liquid spills, it may get into the vehicle’s electrical or electronic system and damage parts.

  • When cleaning spilled liquids, do not use heat to dry the cup holders. This may damage the cup holders.

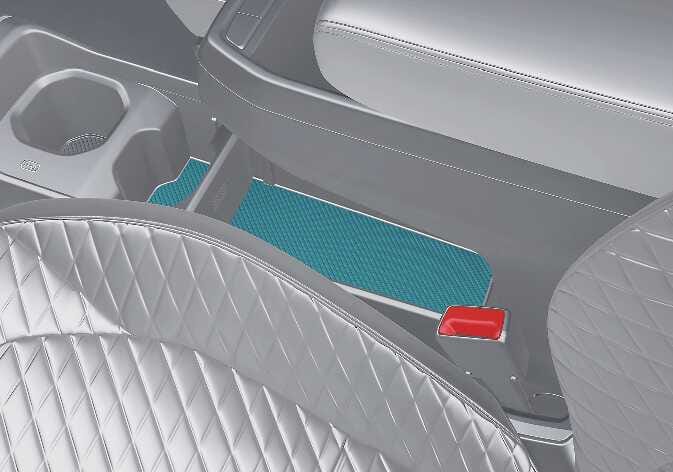

Removable cup holder partition

You can use the removable luggage partition to freely divide the lower storage area according to the usage.

N_QVe27_C08_033_E

To remove the partition, pull up the partition.

When the partition position is changed, cups or bottles can be stored.

  • Level 1: Items with a width of 20 mm or less can be stored (for example, a smartphone).

  • Level 2 (default): A medium cup can be stored.

  • Level 3: An extra-large cup or a bottle can be stored.

Rear sliding cup holder: (if equipped)

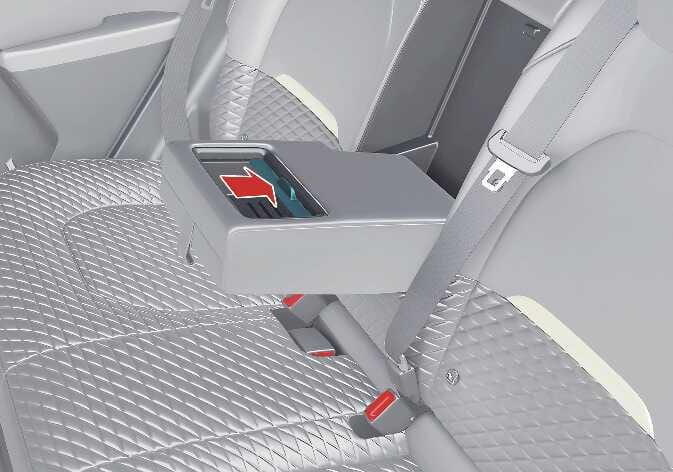

Pull the cover forward to reveal the beverage holder. When the cover is returned to its original position, the compartment can be used to store small items.

N_QVe27_C08_036_E
N_QVe27_C08_063_E
CAUTION

When returning the armrest to its original position, make sure there are no items left inside the cup holder.
