Air ventilation seat: (if equipped)

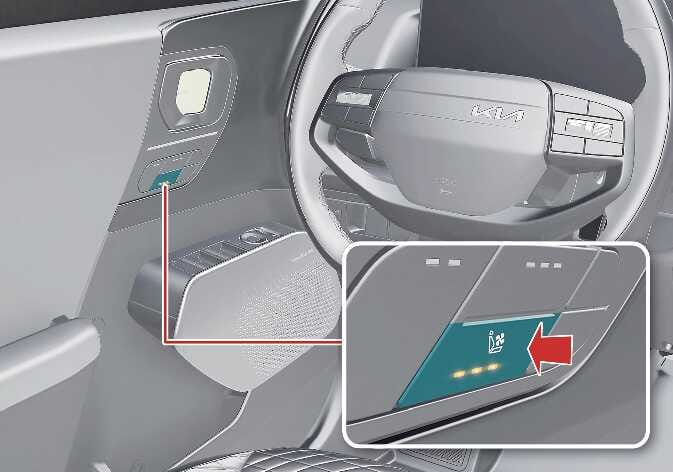

Figure 1. Front seat (Driver’s side)
N_QVe27_C08_037_1_E

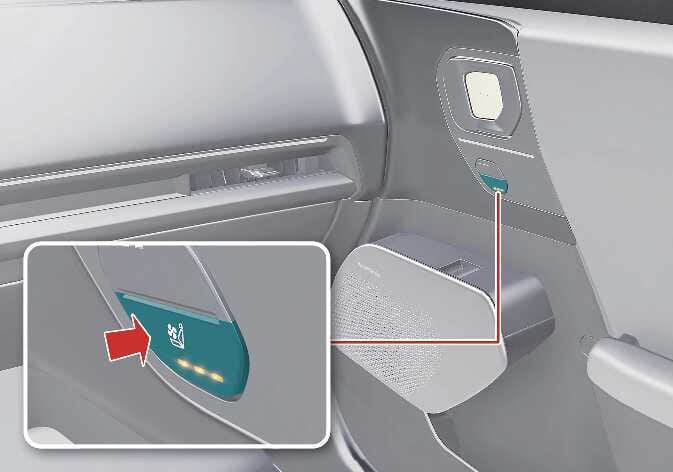

Figure 2. Front seat (Passenger’s side)
N_QVe27_C08_038_1_E

The temperature setting of the seat changes according to the buttons' indicator.

To ventilate your seat cushion, push the buttons.

Each time you push the buttons, the airflow changes as follows:

OFF > High > Medium > Low > OFF

The seat warmer (with air ventilation) defaults to off whenever the vehicle is in POWER ON position or READY indicator is on.

NOTE

Seat damage

  • When cleaning the seats, do not use an organic solvent such as paint thinner, benzene, alcohol, or gasoline. It may damage the air ventilation seat.

  • Do not place heavy or sharp objects on the seat. Those things may damage the air ventilation seat.

  • Be careful not to spill liquid, such as water or beverages, on the seat. If you spill some liquid, wipe the seat with a dry towel completely before using the air ventilation seat.
