Hands-off warning
OCL4M055099N

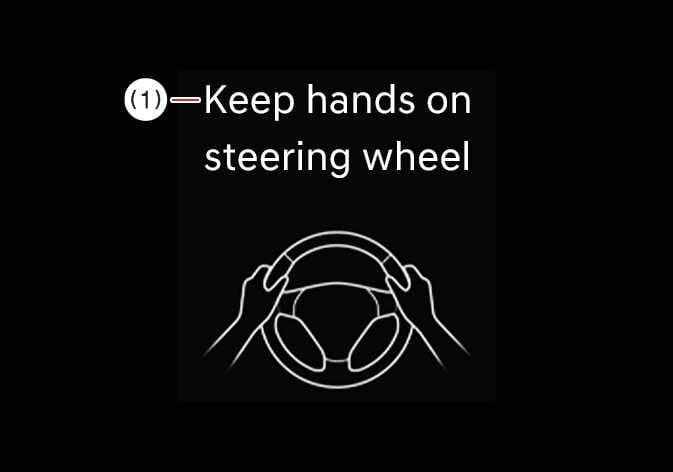

  1. Keep hands on steering wheel

When you take your hands off the steering wheel for a few seconds, a warning message appears and an audible warning sounds.

  • First stage: Warning message

  • Second stage: Warning message (red steering wheel) and audible warning

OCL4M055100N

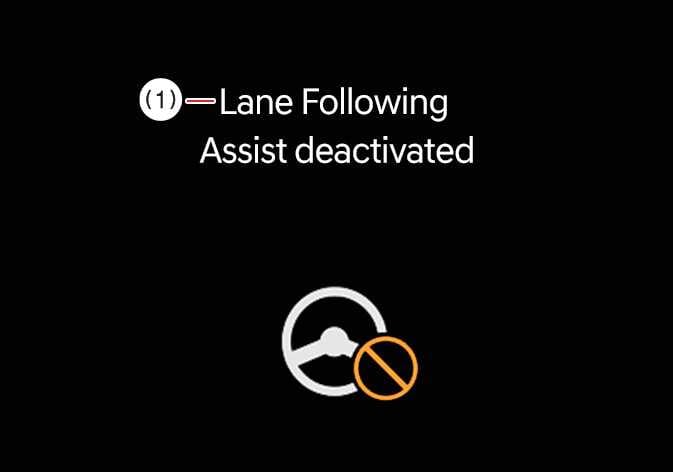

  1. Lane Following Assist deactivated

If you do not return your hands to the steering wheel after the hands-off warning message appears, Lane Following Assist is automatically canceled.

If the driver does not respond to the second stage warning message while Smart Cruise Control is active, the Emergency Stop function will be initiated. For more information, refer to Emergency Stop (ES).

The hands-off warning will be canceled when the driver holds the steering wheel.

WARNING

  • When Lane Keeping Assist reaches its system limit, the indicator light will flash in white and a warning chime will sound.

    • System limit: When the driver’s hands are off the steering wheel and a lane departure occurs while Lane Keeping Assist is operating.

  • Lane Keeping Assist may not operate or may operate abnormally when driving through sharp curves.

  • Lane Following Assist may not assist with steering if you hold the steering wheel very tight or steer it over a certain degree.

  • Lane Following Assist does not operate at all times. It is your responsibility to safely steer the vehicle and stay in your lane.

  • The hands-off warning message may appear late depending on road conditions. Always keep your hands on the steering wheel while driving.

  • If you attach objects to the steering wheel, the hands-off warning may not work properly.

  • If you wear gloves or hold the steering wheel lightly, Lane Following Assist may not detect your hands on the steering wheel and may display the hands-off warning.

TIP

  • When both lane markings are detected, the lane lines on the instrument cluster change from gray to white.

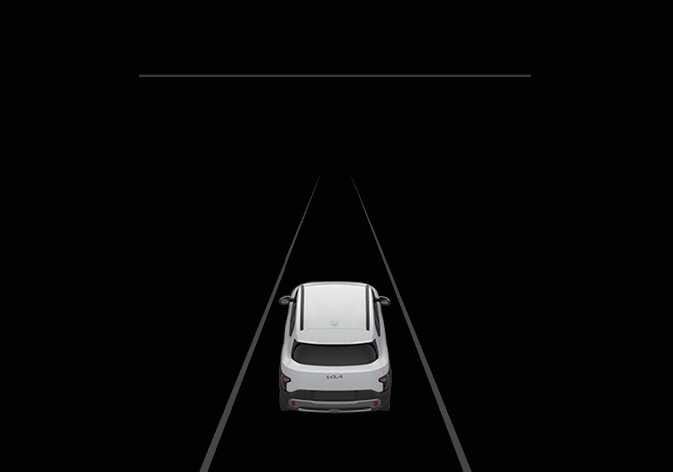

    Figure 1. Lane undetected
    N_QVe27_C00_052_E

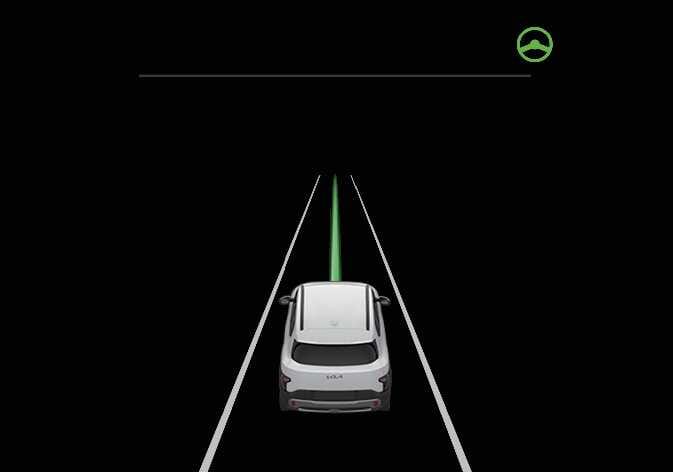

    Figure 2. Lane detected
    N_QVe27_C00_051_E

  • The images or colors may display differently depending on the specifications of the instrument cluster or theme.

  • If lane markings are not detected, steering wheel assistance by Lane Following Assist may be limited depending on whether a vehicle is ahead or on the driving conditions of the vehicle.

  • You can control the steering wheel even when Lane Following Assist assists with steering.

  • The steering wheel may feel heavier or lighter than usual when Lane Following Assist assists with steering.
