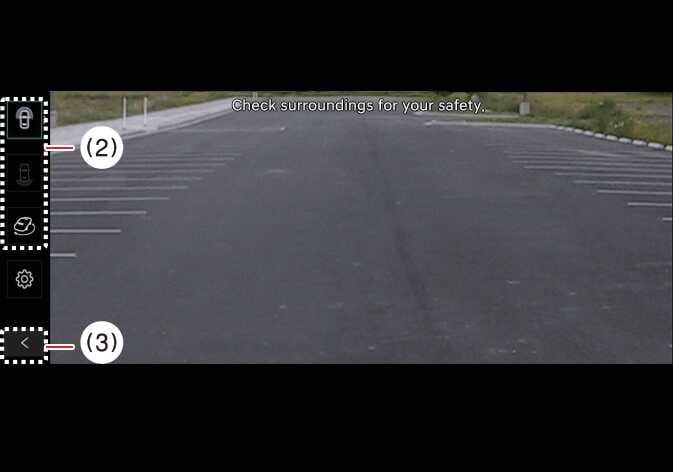

Front-view

OMQ4A055117
N_QVe27_B10_058_E

(2) View switching button

(3) back button

(4) infotainment system operation button

The front-view function assists with safe driving by displaying activity ahead of the vehicle on the navigation system, according to your selected settings.

Parking

The Surround View Monitor’s Front-view function activates when you are parking under the following conditions:

  • Your vehicle’s gear is in P (Park), N (Neutral), or D (Drive) at a speed below 10 km/h (6 mph), and you press the Parking/View button (1).

  • You shift the gear from R (Reverse) to N (Neutral) or D (Drive) at a speed below 10 km/h (6 mph).

  • Forward Parking Distance Warning warns you while the gear is set to D (Drive).

    *(If you have selected Setup > Vehicle > Driver Assistance > Parking Safety > Surround View Monitor Auto On on the infotainment system screen).

Press the view switching button (2) on the Surround View Monitor to select Top View, Front View, Side View, or Wide View.

The Surround View Monitor’s front-view function turns OFF when you are parking under the following conditions:

  • You shift the gear to P (Park) or R (Reverse).

  • You press the Parking/View button (1).

  • You press the back button (3) on the Surround View Monitor screen.

  • You press the infotainment system power button (4).

  • You drive above 10 km/h (6 mph).

TIP

When the Surround View Monitor Front View activates, the last view you used displays.

While Driving

The front view of the Surround View Monitor while driving turns on in the following condition:

  • When the vehicle is in N (Neutral) or D (Drive) and the vehicle speed is over 10 km/h, press the Parking/View button (1).

You can select Front View or Wide View by pressing the view switch button (2) on the Surround View Monitor screen.

The front view of the Surround View Monitor while driving turns off in the following conditions:

  • Shifting to P (Park) or R (Reverse).

  • Pressing the Parking/View button (1).

  • Pressing the Back button (3) on the Surround View Monitor screen.

  • Pressing an infotainment system operation button (4).

NOTE

  • When the front view while driving is turned on, the last used view is displayed.

  • Once activated, the front view while driving remains on even if the vehicle speed drops below 10 km/h (6 mph).

  • When the front view while driving is turned on, Front Top View and Front Side View are disabled at all speeds.
