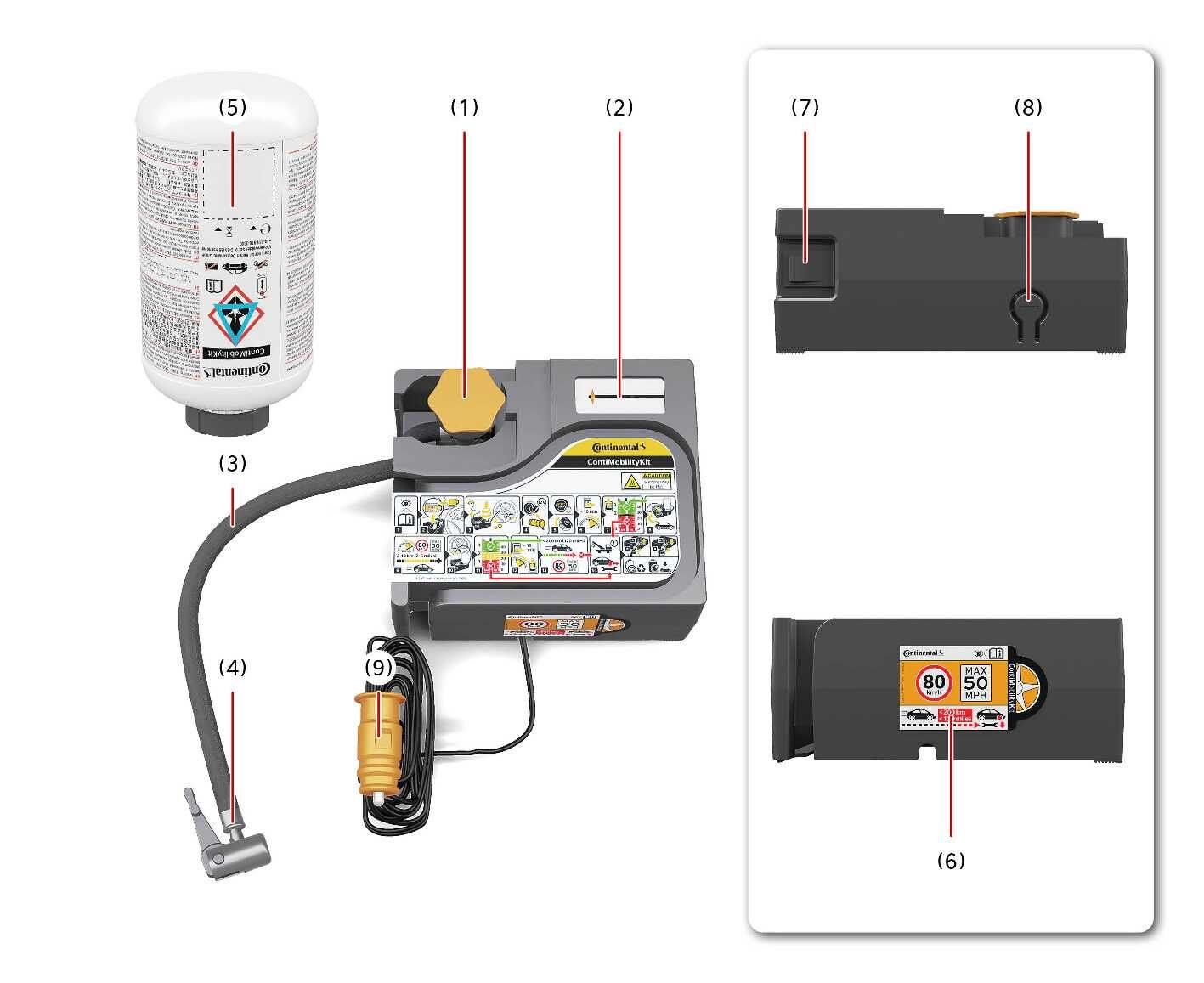

Components of the Tire Mobility Kit

N_QVe27_D11_006_3_E

Connectors, cable and compressor hose are stored in the compressor housing.

Strictly follow the specified sequence, otherwise the sealant may escape under high pressure.

  1. Sealant bottle holder

  2. Tire inflation pressure gauge

  3. Compressor hose

  4. Compressor connector valve

  5. Sealant bottle

  6. Speed restriction label

  7. Compressor ON/OFF switch

  8. Tire inflation pressure adjustment valve

  9. Vehicle power outlet connector/cable

WARNING

Expired sealant

Do not use the Tire sealant after the sealant has expired (i.e. past the expiration date on the sealant container). This can increase the risk of tire failure.

WARNING

Sealant

  • Keep out of reach of children.

  • Avoid contact with eyes.

  • Do not swallow.

WARNING

  • Before using the TMK, follow the instructions on the sealant bottle.

  • Remove the label with the speed restriction from the sealant bottle and apply it to the steering wheel.

  • Please note the expiration date on the sealant bottle.

CAUTION

Before using the TMK, carefully read the instructions attached on the sealant bottle. Detach the speed limit label on the sealant bottle and place it in a highly visible area in the vehicle, such as on the steering wheel, to remind you not to drive too fast.

NOTE

The sealant bottle and insert hose cannot be reused.
