Checking the tire inflation pressure

After driving briefly so as to distribute the sealant in the tire, check the inflation pressure.

  1. After driving approximately 7–10 km (4–6 miles or about 10 minutes), stop at a safe location.

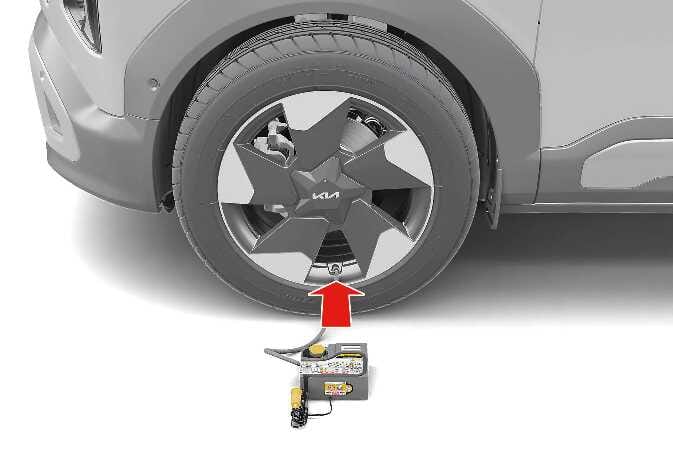

  2. Connect the compressor and the tire connection hose directly to the tire valve.

    N_QVe27_D11_012_E

  3. Connect the power outlet connector.

  4. To check the current tire pressure, temporarily turn off the compressor:

    • To increase the inflation pressure, switch on the compressor. To check the current inflation pressure setting, briefly switch off the compressor.

    • To reduce the inflation pressure, press the tire inflation pressure adjustment valve.

WARNING

Do not let the compressor run for more than 10 minutes. Otherwise, the device may overheat and be damaged.

CAUTION

Tire Pressure Sensor

When you use the TMK with a sealant that is not approved by Kia, the tire pressure sensors may be damaged by that sealant. When replacing the tire, remove the approved sealant from the tire pressure sensor and wheel, and have the tire pressure sensors inspected by a professional workshop. Kia recommends visiting an authorized Kia dealer or service partner.

NOTE

The pressure gauge may show higher than actual reading when the compressor is running. To get an accurate tire reading, the compressor needs to be turned off.
