Light bulb position (Rear)

Figure 1. Rear combination lamp (Type A)
N_QVe27_B12_033_E

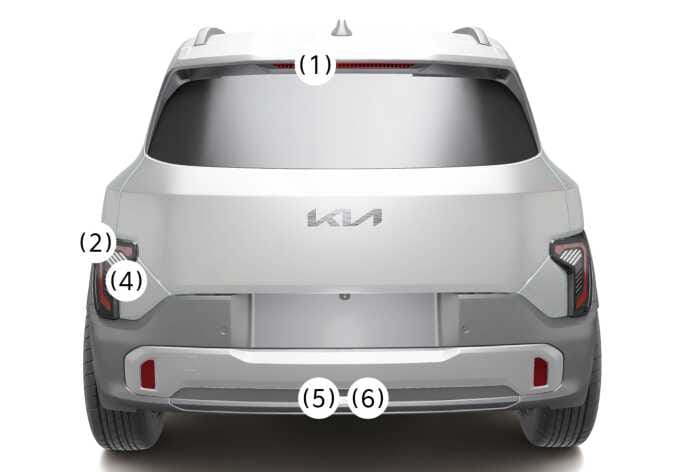

Figure 2. Rear combination lamp (Type B)
N_QVe27_C12_037_E

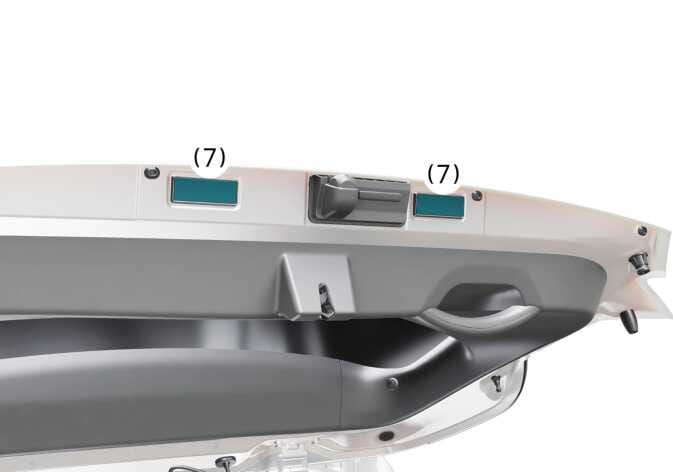

Figure 3. License plate lamp
N_QVe27_B12_035_E

  1. High mounted stop lamp (LED type)

  2. Tail lamp/Stop lamp (LED type)

  3. Rear turn signal lamp (Bulb type)

  4. Rear turn signal lamp (LED type)

  5. Reversing lamp (LED type) (For LHD)

    Rear fog lamp (LED type) (For RHD)

  6. Reversing lamp (LED type) (For RHD)

    Rear fog lamp (LED type) (For LHD)

  7. License plate lamp (LED type)
