Exterior overview

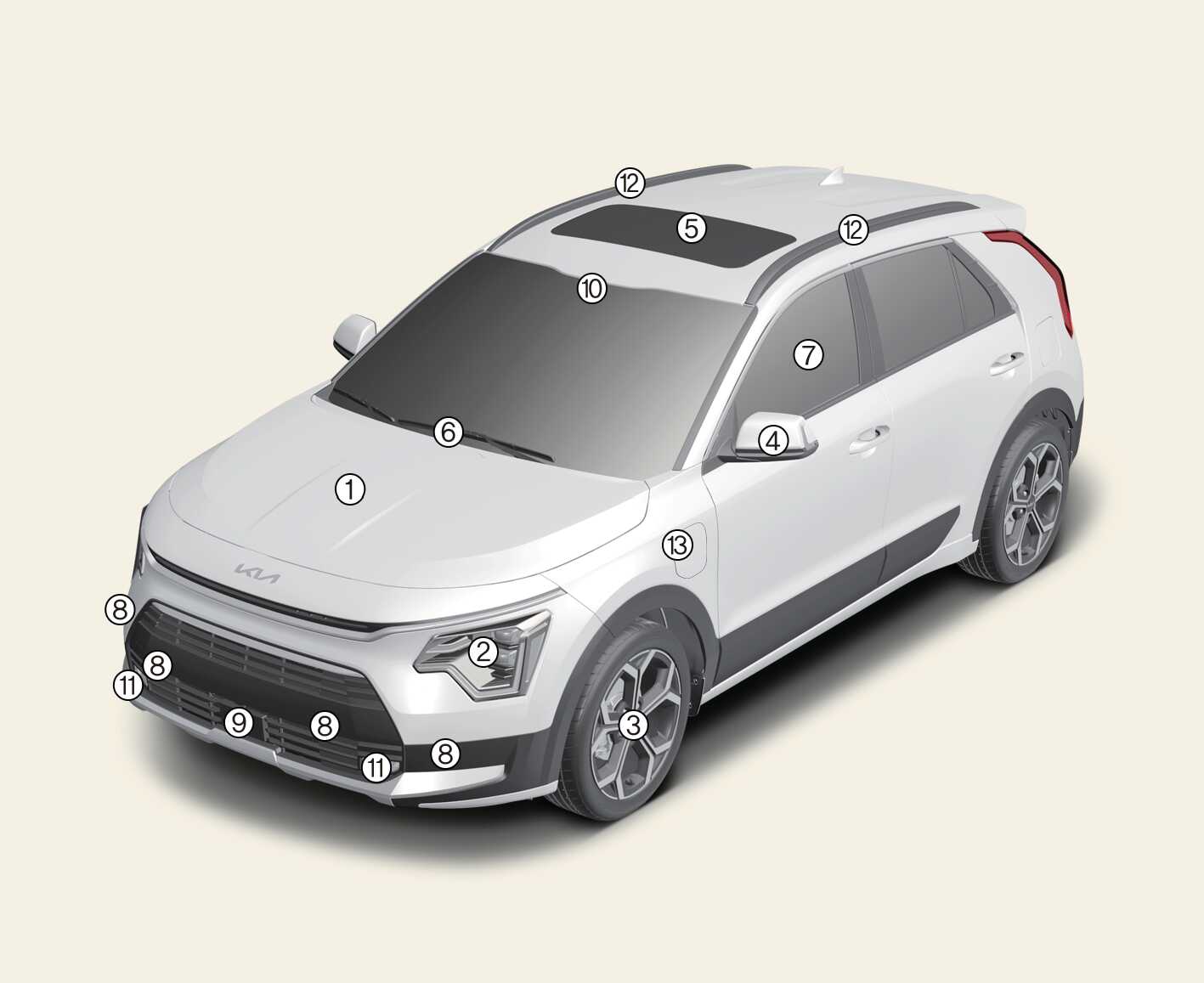

Figure 1. Front view
OSG2PH012001L

The actual shape may differ from the illustration.

  1. Hood Hood

  2. Head lamp Lighting, Light bulbs

  3. Wheel and tire Tires and wheels, Tires and wheels

  4. Outside rear view mirror Outside rear view mirror

  5. Sunroof Sunroof

  6. Front windshield wiper blades Wipers and washers, Wiper blades

  7. Windows Windows

  8. Front ultrasonic sensor Reverse Parking Distance Warning (PDW)

  9. Front radar Forward Collision-Avoidance Assist (FCA) (Sensor Fusion), Smart Cruise Control (SCC), Remote Smart Parking Assist (RSPA)

  10. Front view camera Forward Collision-Avoidance Assist (FCA) (Front Camera Only)

  11. Front fog lamp Operating front fog light, Light bulbs

  12. Roof rack Roof rack

  13. Charging door (For plug-in hybrid vehicle) Charging the plug-in hybrid vehicle

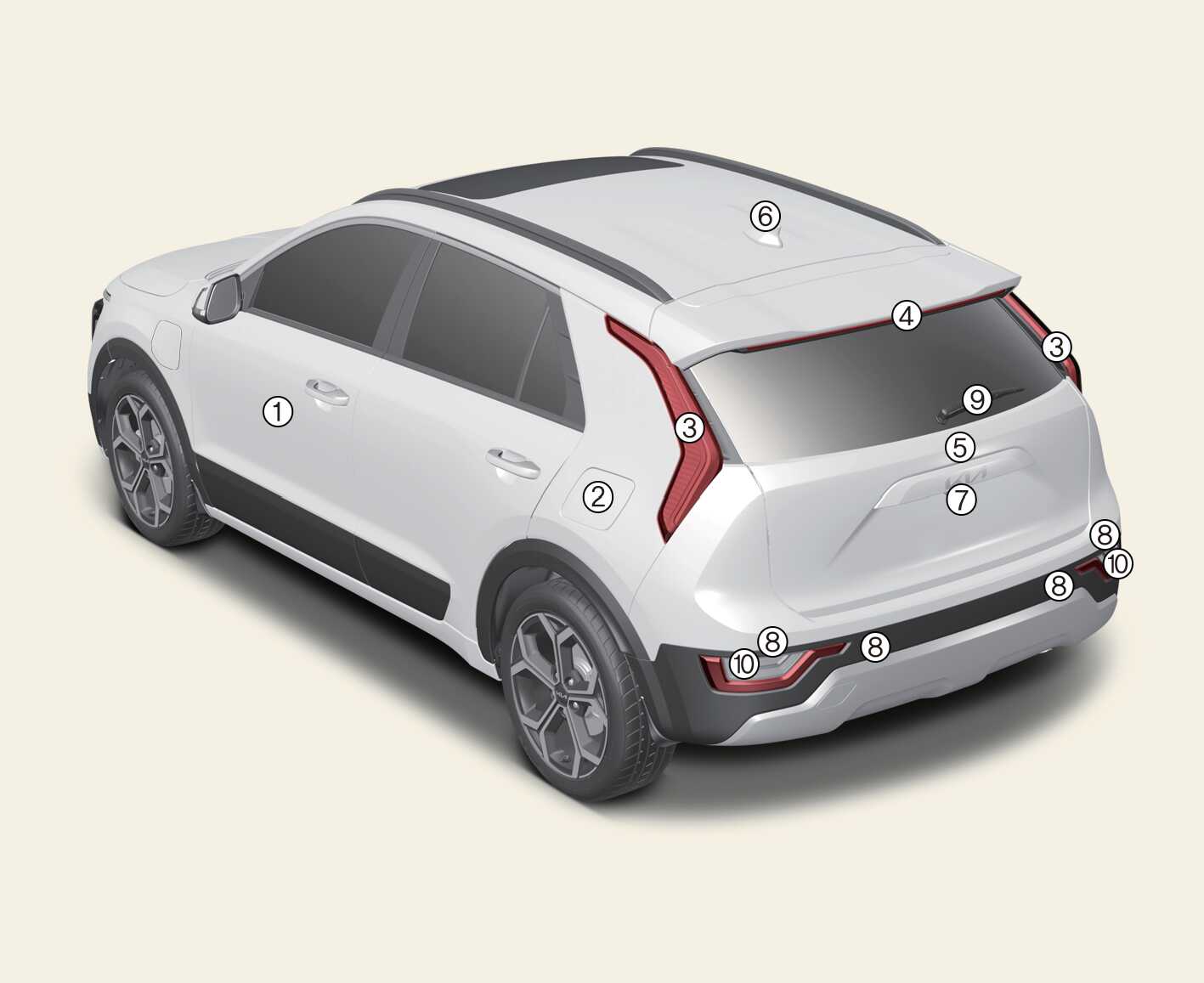

Figure 2. Rear view
OSG2PH012002L

The actual shape may differ from the illustration.

  1. Doors Door locks

  2. Fuel filler door Fuel filler door

  3. Rear combination lamp Lighting control, Light bulbs

  4. High mounted stop lamp Lighting control, Light bulbs

  5. Liftgate Liftgate

  6. Antenna Shark-fin antenna

  7. Wide-rear view camera Rear View Monitor (RVM)

  8. Rear ultrasonic sensor Reverse Parking Distance Warning (PDW)

  9. Rear wiper Wipers and washers, Wiper blades

  10. Back up & Rear turn signal lamp Lighting control, Light bulbs
